The above plate shows:
(K) Engine family
(J) Swept volume
(A) Engine designation
(F1)Valve clearance, inlet
(F2)Valve clearance, outlet
(I) Emission Control devices
(P) Only constant RPM
(E) Part number – decal
(B) Engine code (in engine family)
(C) Output/RPM
(D) Fuel quantity
(M) Engine speed
(H) Certification approval number (EU)
Explanation of engine designation:
Ex. TAD1240GE/TWD1240VE
T – Turbo
A – Air-to-air Charge air cooler
W – Water to air, intercooler
D – Diesel engine
12 – Swept volume, liter
4 – Generation
0 – Version
G – Gen Set engine
V – Stationary and mobile operation
E – Emissions check

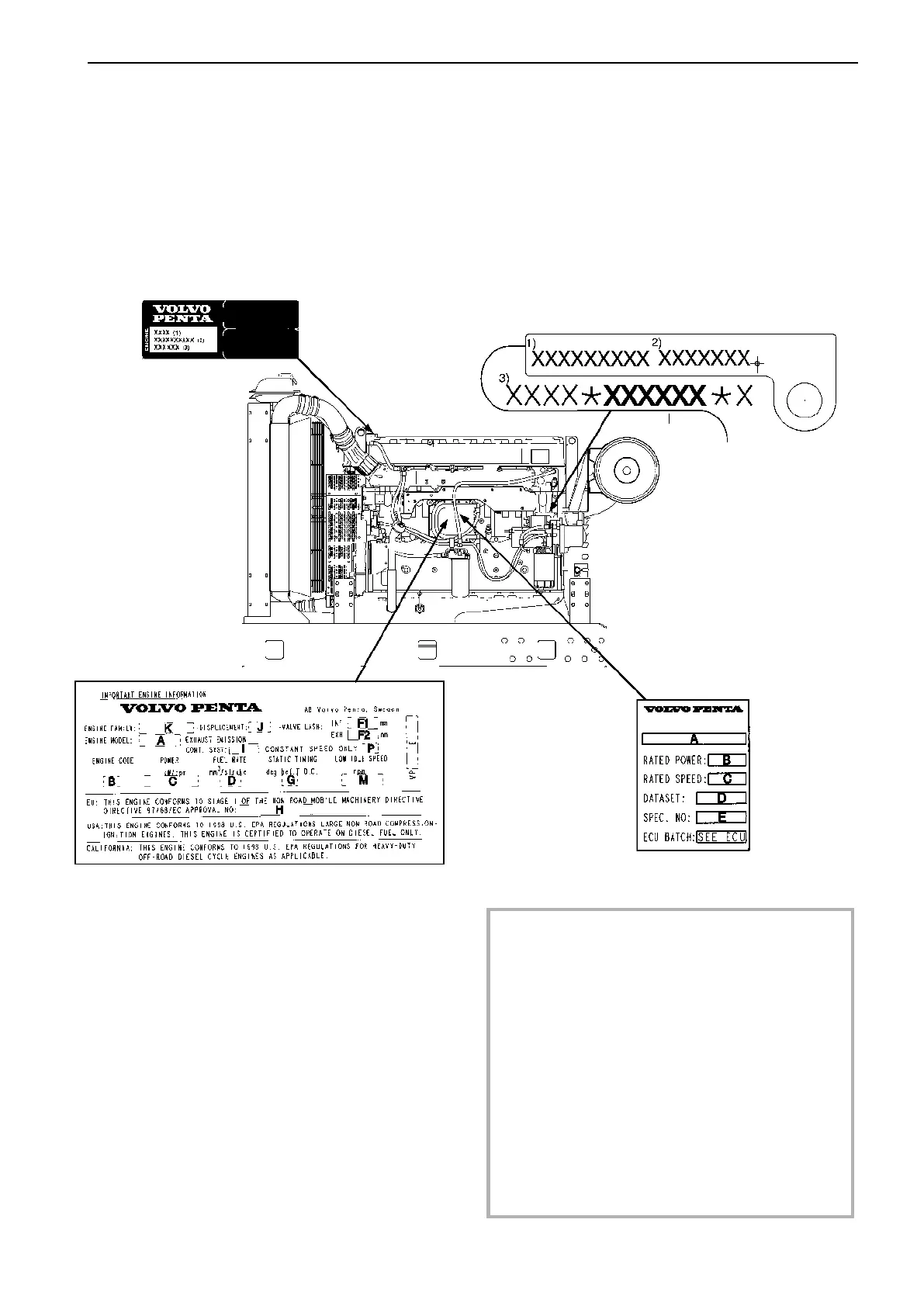

Location of engine plates
The plate below shows:
1 Engine designation
2 Serial number
3 Specification number
Identification numbers
The plate below shows:
1 Engine designation
2 Specification number
3 Serial number (last six digits) engine block
The plate below shows:
A Engine designation
B Net engine output (without fan)
C Max. rpm
D Computer kit number
E Product number
