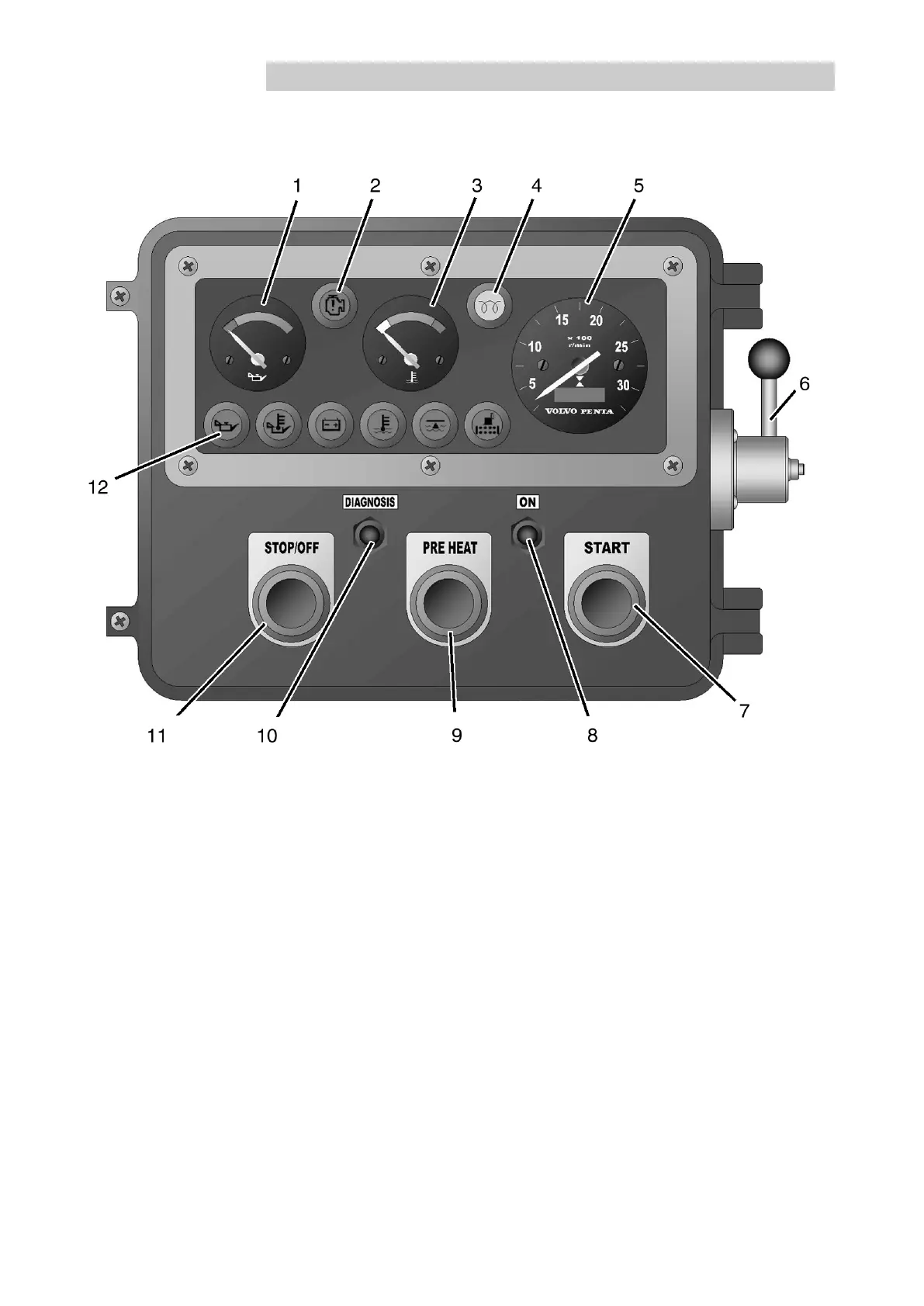

Instrument
1. Engine oil pressure.
2. Diagnosis lamps. The error codes are read from
the diagnosis lamp.
3. Coolant temperature.
4. Indicator lamps Pre-heating and after-heating.
5. Tachometer (rpm).
6. Throttle.
7. Start button.
8. ON button. Used to start the system. Sends
current to the system only when it is pushed. It
must therefore be held down until the main relay
is activated. This takes about one second.
9. Pre-heat button. Used to pre-heat the engine prior
to start. Pre-heating is automatically adjusted by
the system. The system also has after-heating.
10. Diagnosis button. Used to read out error codes.
See ”Reading out error codes”.
11. Stop/Off button.
12. Warning lights (x6) from the left: oil pressure, oil
temperature, battery charging, coolant tempera-
ture, coolant level, fuel alarm (includes both ”water
in fuel” as well as ”fuel pressure”).
