Volvo TAD734GE Repair Manual

Group 30: Electrical system Engine protection

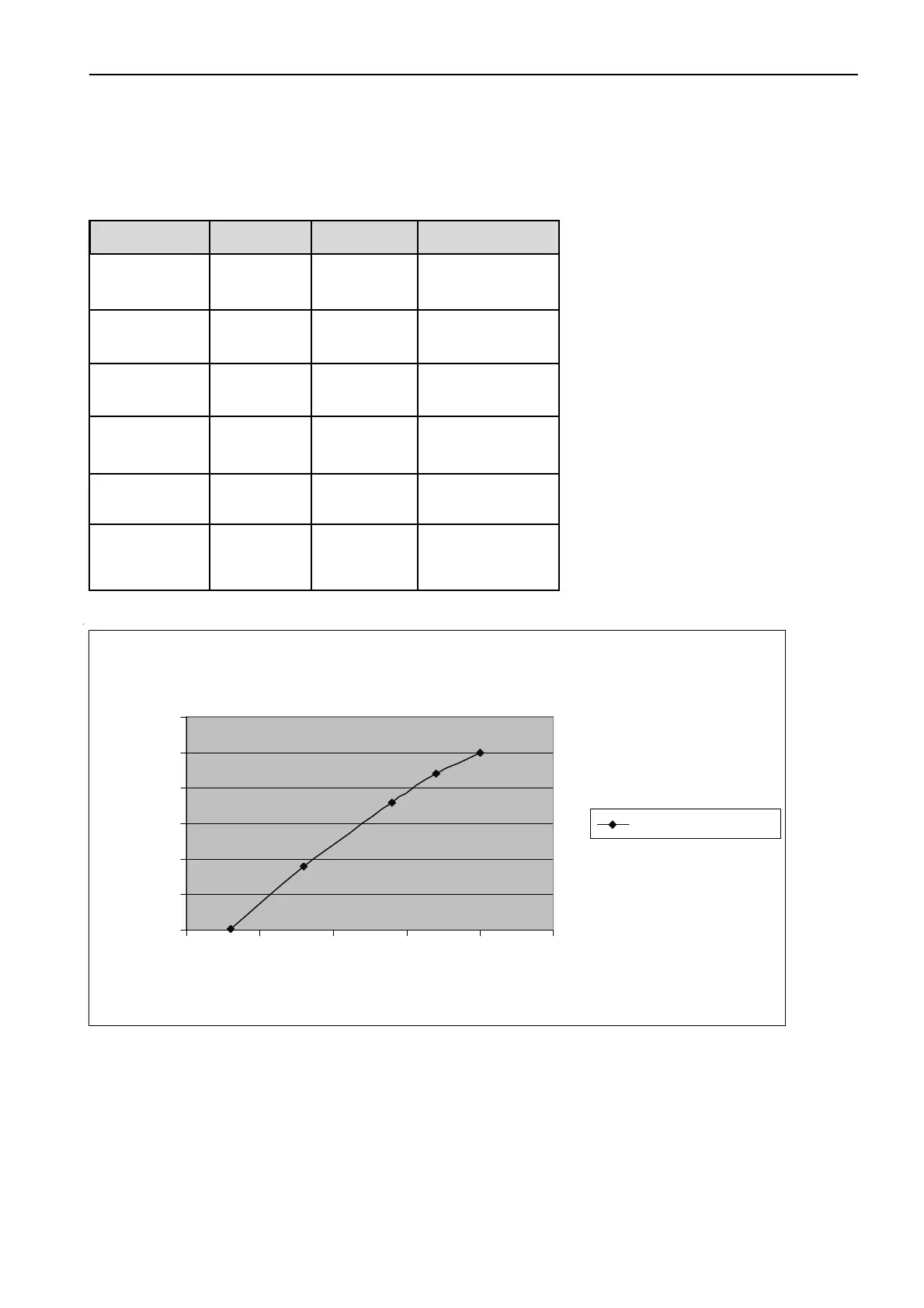

Engine protection
TAD 734 GE
Parameter “Yellow lamp” “Red lamp” Forced shutdown
High coolant 98 106 >106
temperature (°C)
High oil
temperature (°C) 125 135 >135
High boost 80 90 >90
temperature (°C)
High boost 340 355 >355
pressure (kPa)
Low coolant
level - switch switch
Low oil Limit 25<limit 25<limit
pressure (kPa)
Oil pressure limit
0
50
100
150
200
250
300
0 500 1000 1500 2000 2500
Engine speed
Oil pressure kpa
Oil pressure limit

Volvo TAD734GE Specifications

General

Engine Model	TAD734GE
Cooling System	Liquid-cooled
Displacement	7.15 liters
Bore x Stroke	108 x 130 mm
Aspiration	Turbocharged
Fuel System	Electronic Unit Injectors (EUI)
Engine Speed	1500 rpm
Emission Level	EU Stage II
Engine Type	4-stroke, 6-cylinder in-line diesel engine
