1 Introduction
10
Meritor WABCO Maintenance Manual 34 (Revised 03-16)

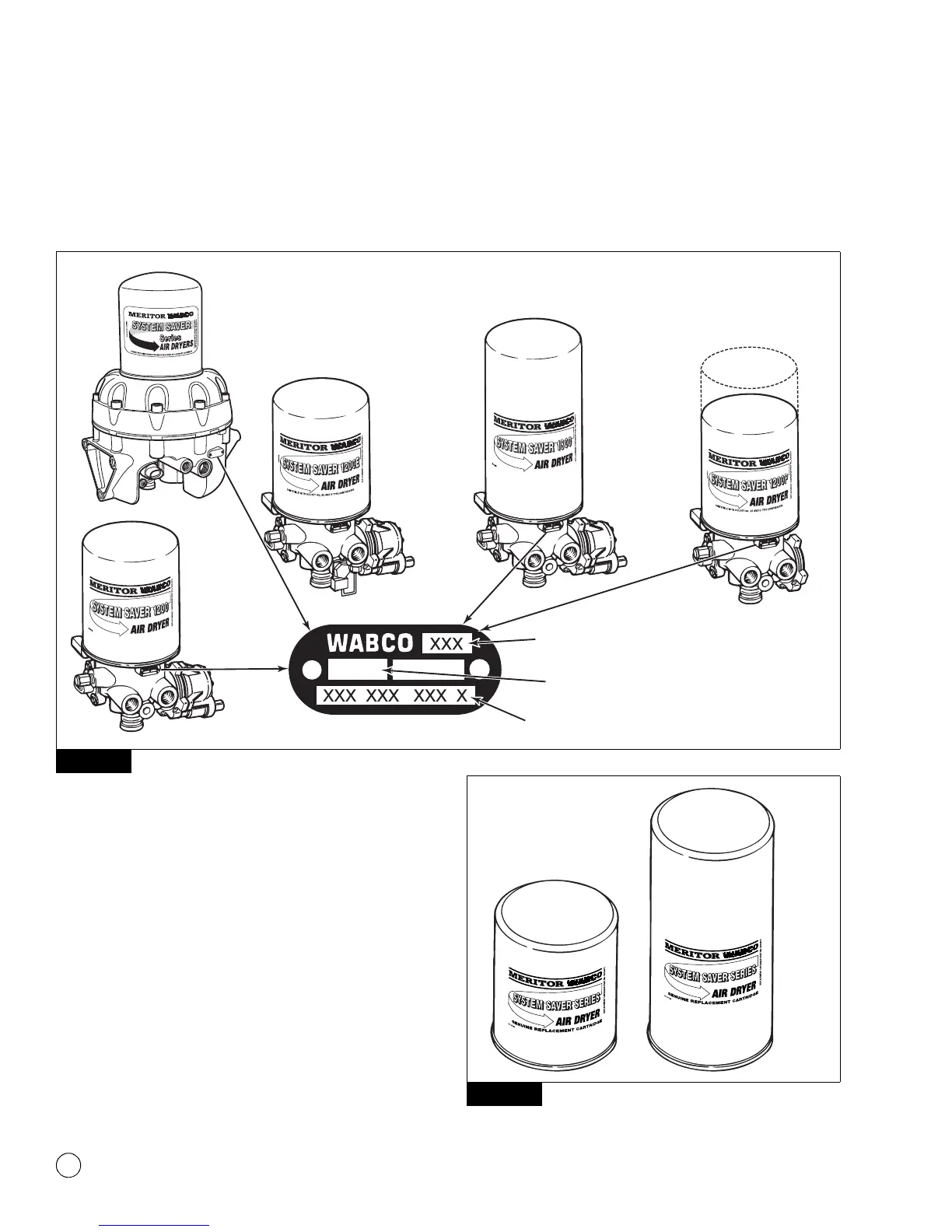

Dryer Identification
The identification tag on the face of the dryer provides important
information about the air dryer — information you will need when
servicing or replacing components. Figure 1.10.
Figure 1.10
Description of Components
Replacement components for single canister air dryers are
described below.
Desiccant Cartridge: A cylindrical steel housing containing the
filter elements and desiccant needed to filter and dry system air.
Spin-on/spin-off design allows quick and easy maintenance. The
System Saver 1800 Series cartridge is 3.2-inches (81 mm) taller
than the 1200 Series cartridge [6.4-inches (164 mm) tall].
Figure 1.11.
Always replace cartridges with authentic Meritor WABCO brand
cartridges.
Figure 1.11
Figure 1.10
1696
1002147c
SYSTEM
SAVER
1200/1200U
DATE CODE
FIRST TWO DIGITS = BUILD WEEK
LAST TWO DIGITS = BUILD YEAR
MANUFACTURING
LOCATION CODE
SYSTEM
SAVER
1800/1800U
SYSTEM
SAVER
1200 PLUS
SYSTEM
SAVER
1200E
PART
NUMBER
SYSTEM
SAVER
1200P/1200UP
OR
1800P/1800UP
Figure 1.11
