1 Introduction
2
Meritor WABCO Maintenance Manual 34 (Revised 03-16)
Figure 1.1
Figure 1.2
Figure 1.3
Figure 1.4
How the Air Dryer Works
During system pressure build-up, compressed air passes into the air
dryer where the filter system removes contaminants and passes the
air into the drying stage.
Moisture-laden air passes through the desiccant bed in the air dryer
cartridge and moisture is retained by the desiccant. Moisture that
condenses out also collects in the base of the dryer. When the
compressor unloads, the water is expelled and dried air flows back
through the dryer, drying the desiccant for the next cycle.
NOTE: For further information about System Saver E air dryers and
components, refer to Section 4 and Section 5. For special
applications, refer to Section 6.

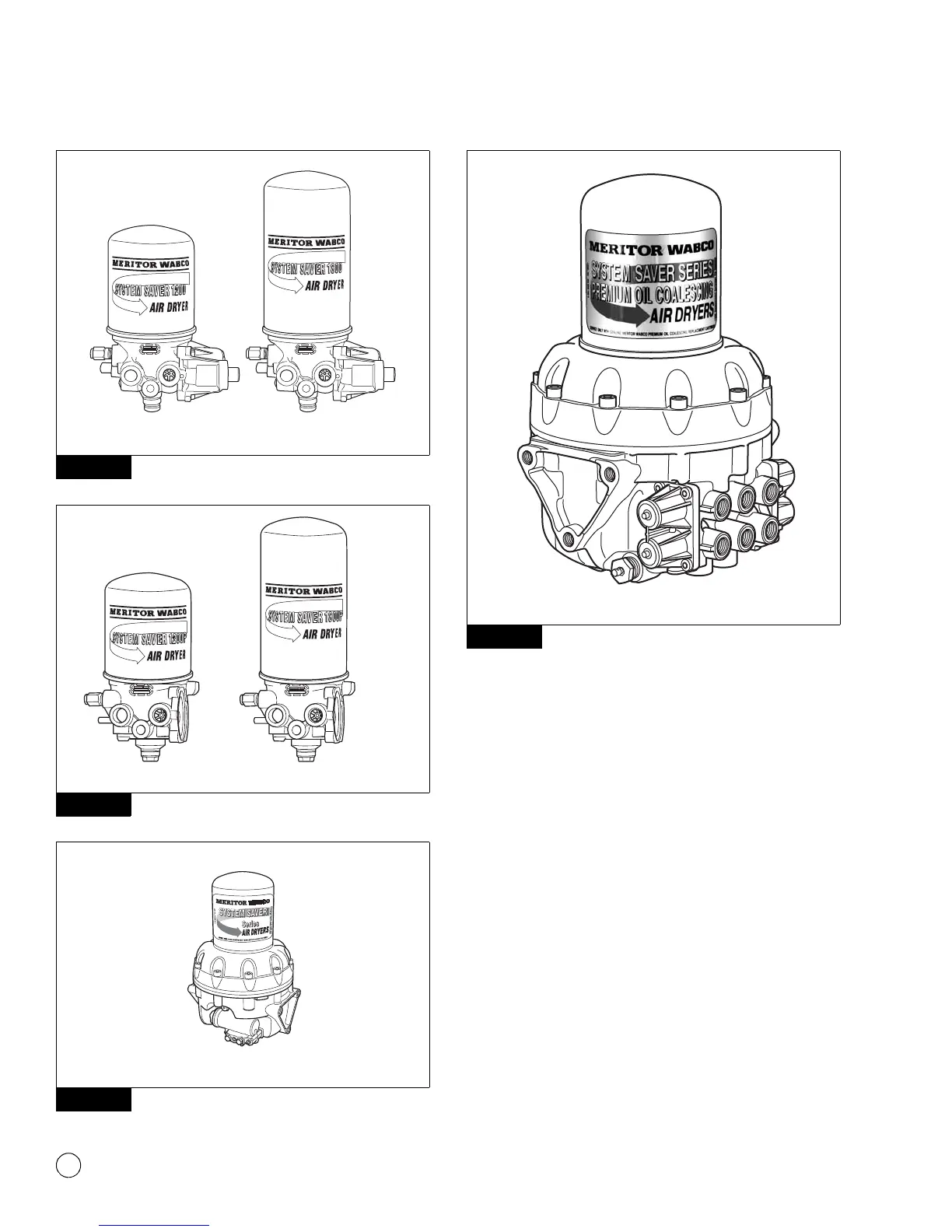

Figure 1.1
SYSTEM SAVER 1200 AND 1800 SERIES
Figure 1.2
SYSTEM SAVER 1200P AND 1800P
Figure 1.3
SYSTEM SAVER 1200 PLUS
Figure 1.4
SYSTEM SAVER 1200 PLUS MCP
4011898a
