11
SPRAYING
i
Follow these steps to deliver spray material from
the material container to the spray gun.
YOU WILL NEED
• Waste bucket
• Scrap material / cardboard
• Drop cloths to protect oors and furnishings from overspray

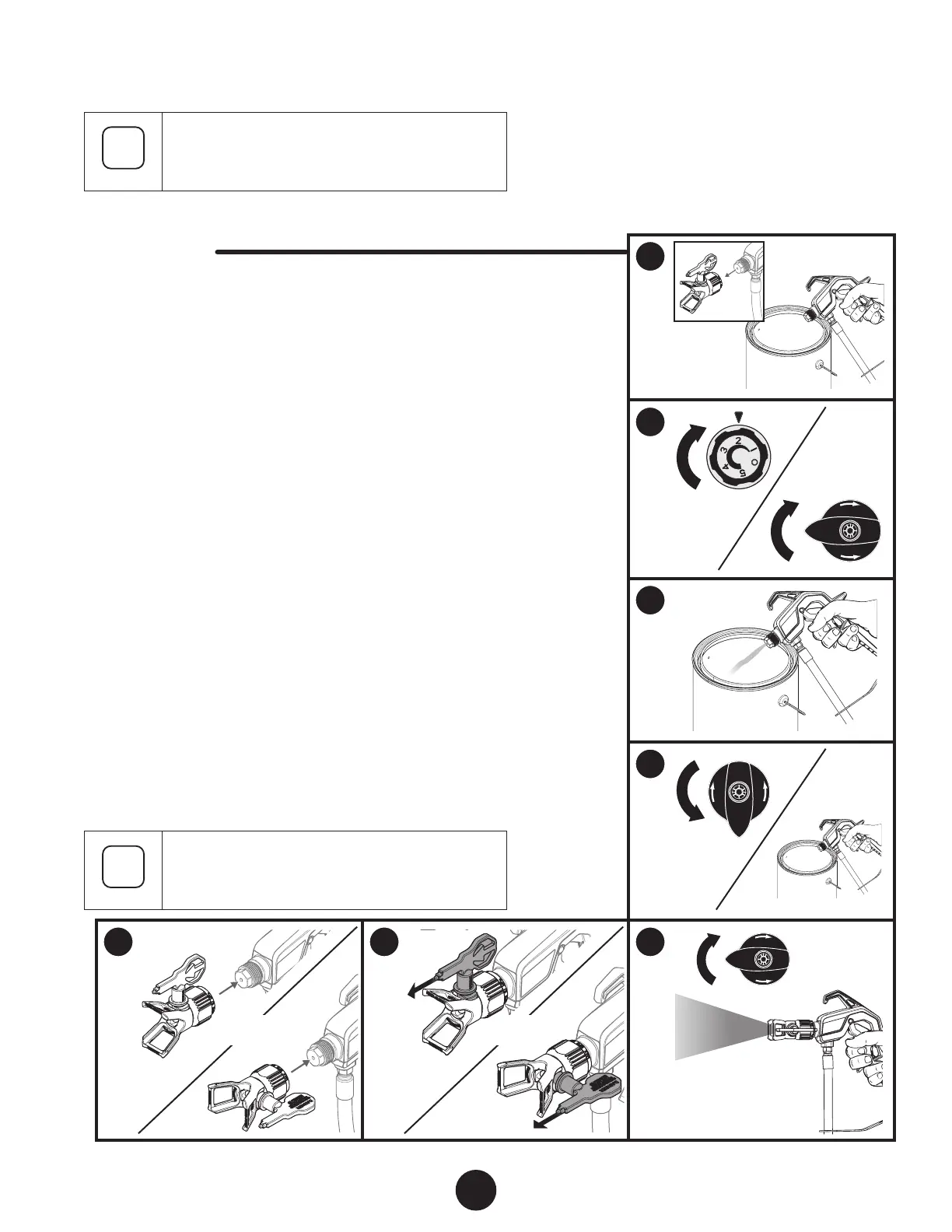

1. Make sure the tip guard is removed. Point the spray gun
into a separate waste container. Unlock the spray gun trigger.
Squeeze and hold trigger for steps 2-3.
2. Slowly turn the pressure control knob clockwise to setting ‘2’.
Turn the PRIME/SPRAY knob to SPRAY.
3. Continue to squeeze trigger until the material is owing freely
through the spray gun.
4. Perform the Pressure Relief Procedure, page 9.
5. Make sure the spray gun trigger is locked. Thread the spray
tip guard assembly onto the gun.
Tighten by hand.
6. Make sure the spray tip is rotated forward to the spray
position, with the arrow on the tip facing forward.
Unlock the spray gun trigger.
7. Slowly turn the pressure control knob clockwise to the
maximum setting (5).
Turn the PRIME/SPRAY knob to SPRAY.
Point the spray gun at a piece of scrap material/cardboard.
Pull the trigger and practice spraying (see pages 12-13).
i
Motor will cycle ON and OFF while spraying to
regulate pressure. This is normal.
