OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2319150

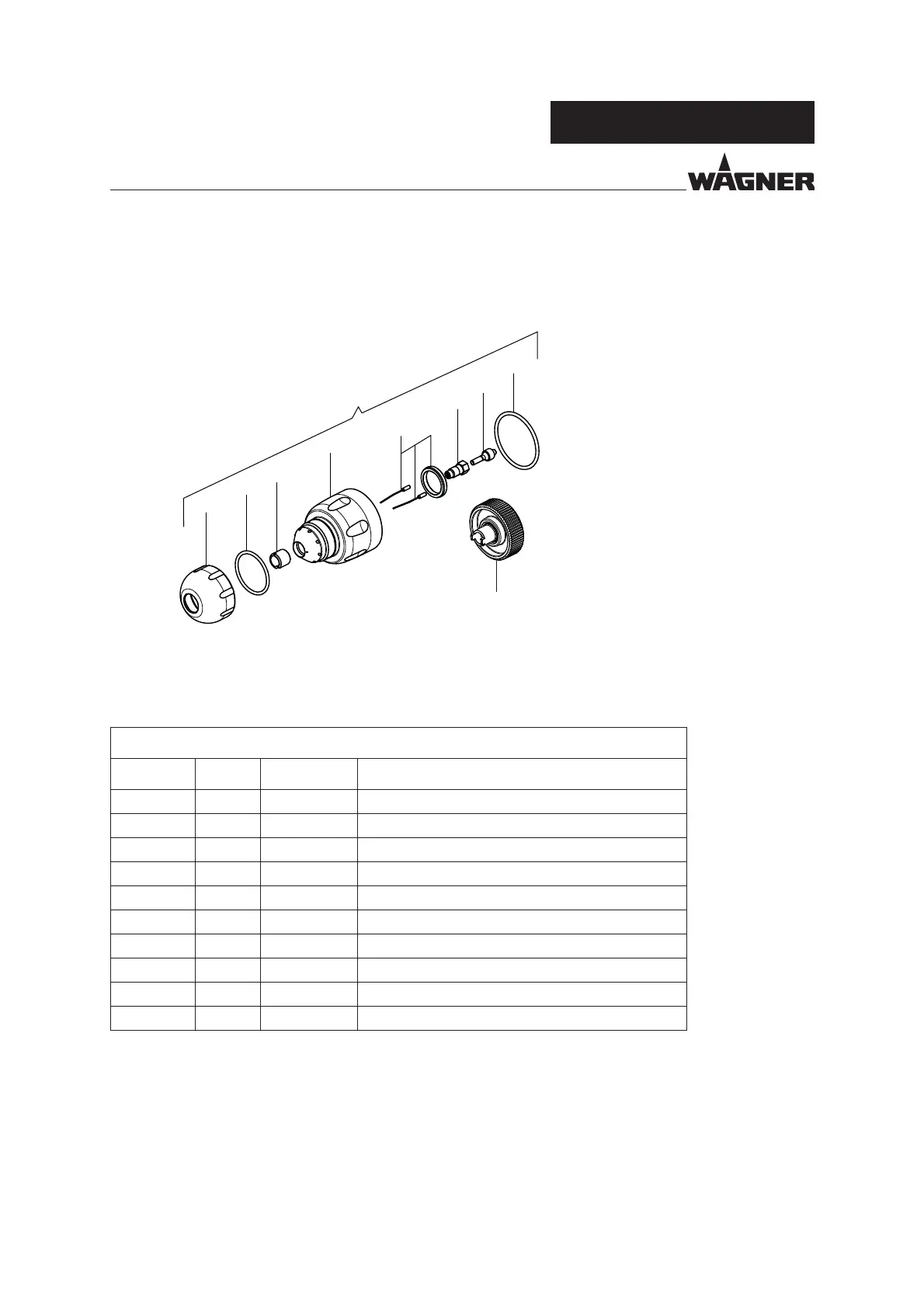

10.3.2 ACR 5000 ROUND JET NOZZLE CAP SPARE PARTS LIST
ACR 5000 round jet nozzle cap spare parts list
Item K Quantity Part No. Description
1 1 2309883 ACR 5000 round jet nozzle cap
2 1 2307220 Nozzle nut
3
◆
1 2315310 O-ring
4
◆
1 132351 Nozzle screw connection holder
5 1 2307219 Nozzle body
6
◆
1 2319526 Round electrode set
9
◆
1 132516 Nozzle screwed connection compl.
10
◆
1 2307216 Sealing nipple
11
◆
1 2311217 O-ring
12 1 128901 Nozzle spanner compl.
◆ = Wear part
