OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2319150
5 START-UP AND OPERATION
5.1 INSTALLATION AND CONNECTION

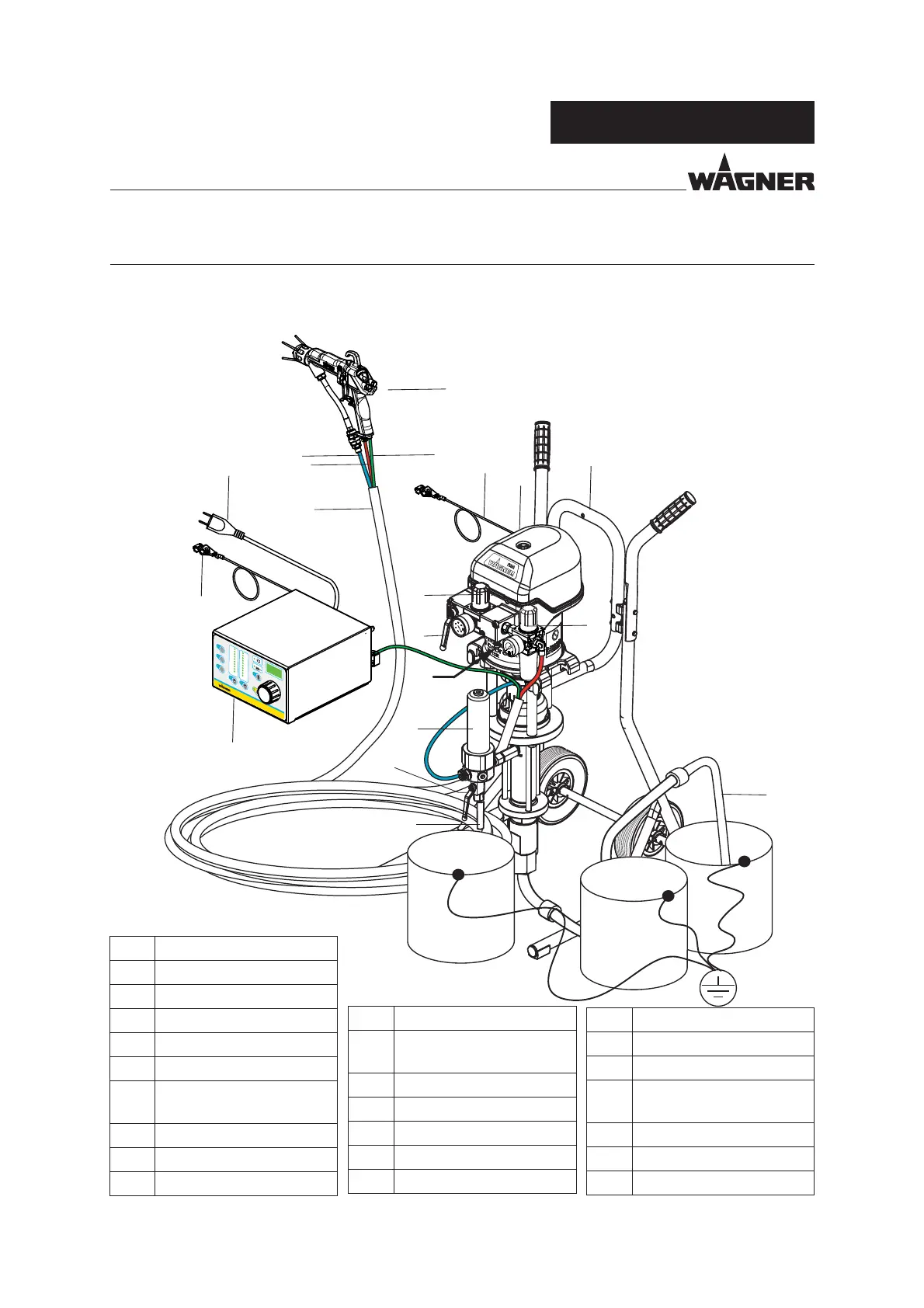

5.1.1 TYPICAL ELECTROSTATIC SPRAYING SYSTEM
Item Designation
1 GM 5000EACF spray gun
2 Gun cable
3 Grounding cable
4 Pneumatic pumps
5 Carriage
6 Pressure regulator +
air fi lter
7 Material suction system
8 Return hose
9 High pressure fi lter
Item Designation
10 Compressed air
connection
11 Stop valve
12 Air pressure regulator
13 VM 5000 control unit
14 Protective hose
15 Air hose
Item Designation
16 Material hose
17 Return valve
18 Container for the return
fl ow
19 Colour container
20 Container, cleaning agent
21 Mains cable
