WAGNER GM5000 User Manual

17
GM 5000EAC.
C
A
B_03155
B
C
A
B_03193
B
OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2319150

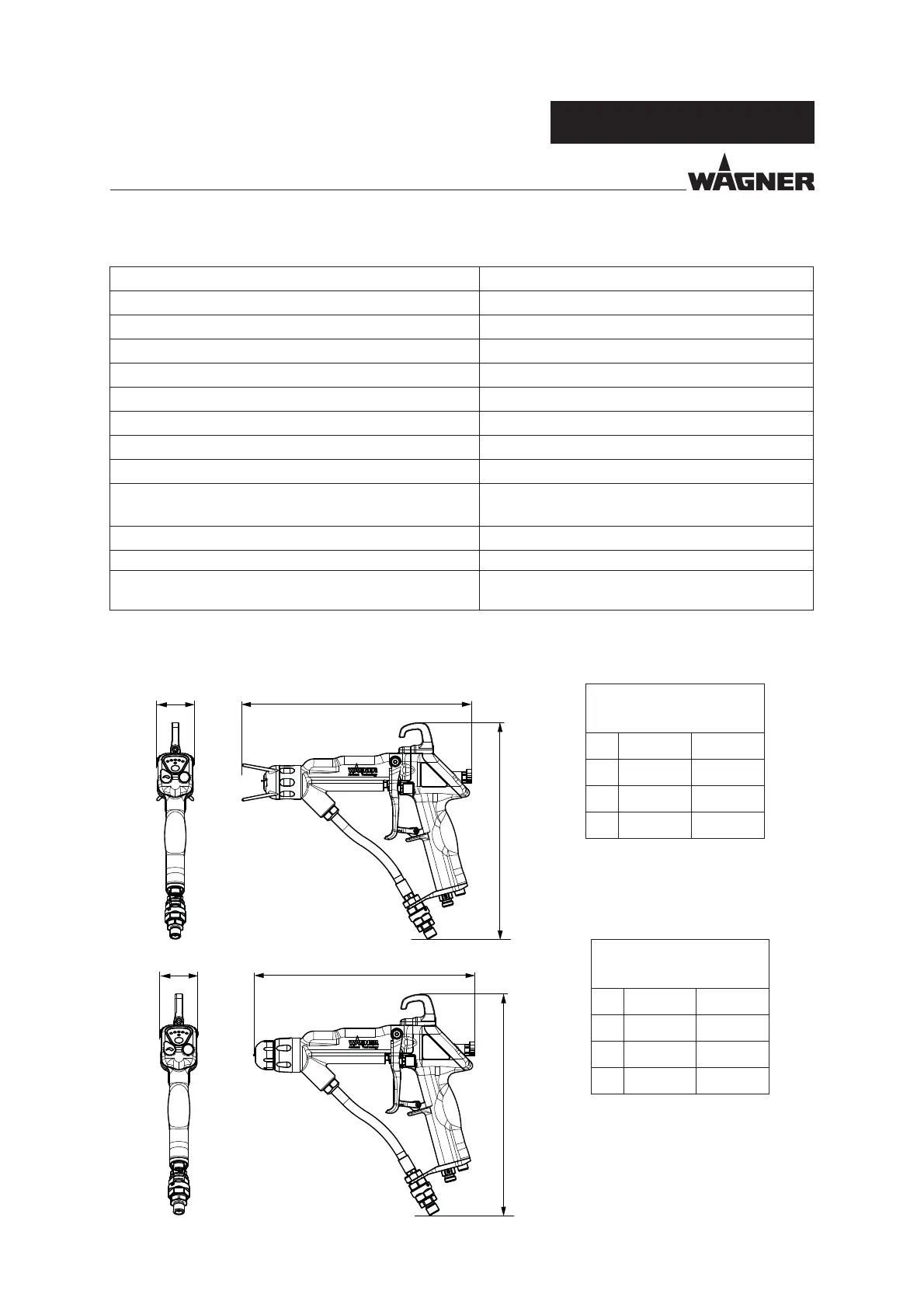

4.3 TECHNICAL DATA
Max. air pressure 0.8 MPa; 8 bar; 116 psi
Max. material pressure 25 MPa; 250 bar; 3626 psi
Material connection NPSM 1/4“-18
Air connection G 1/4“ A
Input voltage max. 20 Vpp
Input current max. 1.0 A AC
Output voltage max. 80 kV DC
Output current max. 100 µA DC
Polarity negative
Weight (without hose set) 710 g
(incl. union nut, nozzle, air cap and edge fi lter)
Working temperature range 0 °C to 40 °C; 32 °F to 104 °F
Max. material temperature 50 °C; 122 °F
Sound level at 0.3 MPa; 3 bar; 43.5 psi air pressure and
0.3 MPa; 3 bar; 43.5 psi material pressure
73 dB(A) *
* A rated sound pressure level measured at 1 m distance according to DIN EN 14462: 2005.
GM 5000EAC F
with fl at jet nozzle
mm inches
A 280 11.02
B 46 1.81
C 264 10.39
GM 5000EAC R
with round jet nozzle
mm inches
A 264 10.39
B 46 1.81
C 264 10.39
Measurements
