SPRINT XE
7.5 PERFORMING A PAINT CHANGE
7.5.1 AIRFLUID VERSION
Note:
For a paint change, all components of the powder feed system must be thoroughly cleaned.
P_01785
EPG
SPRINT X
0
%
10
20
30
40
50
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
80
100
%
Tri
90
60
70
P_1789
H
17

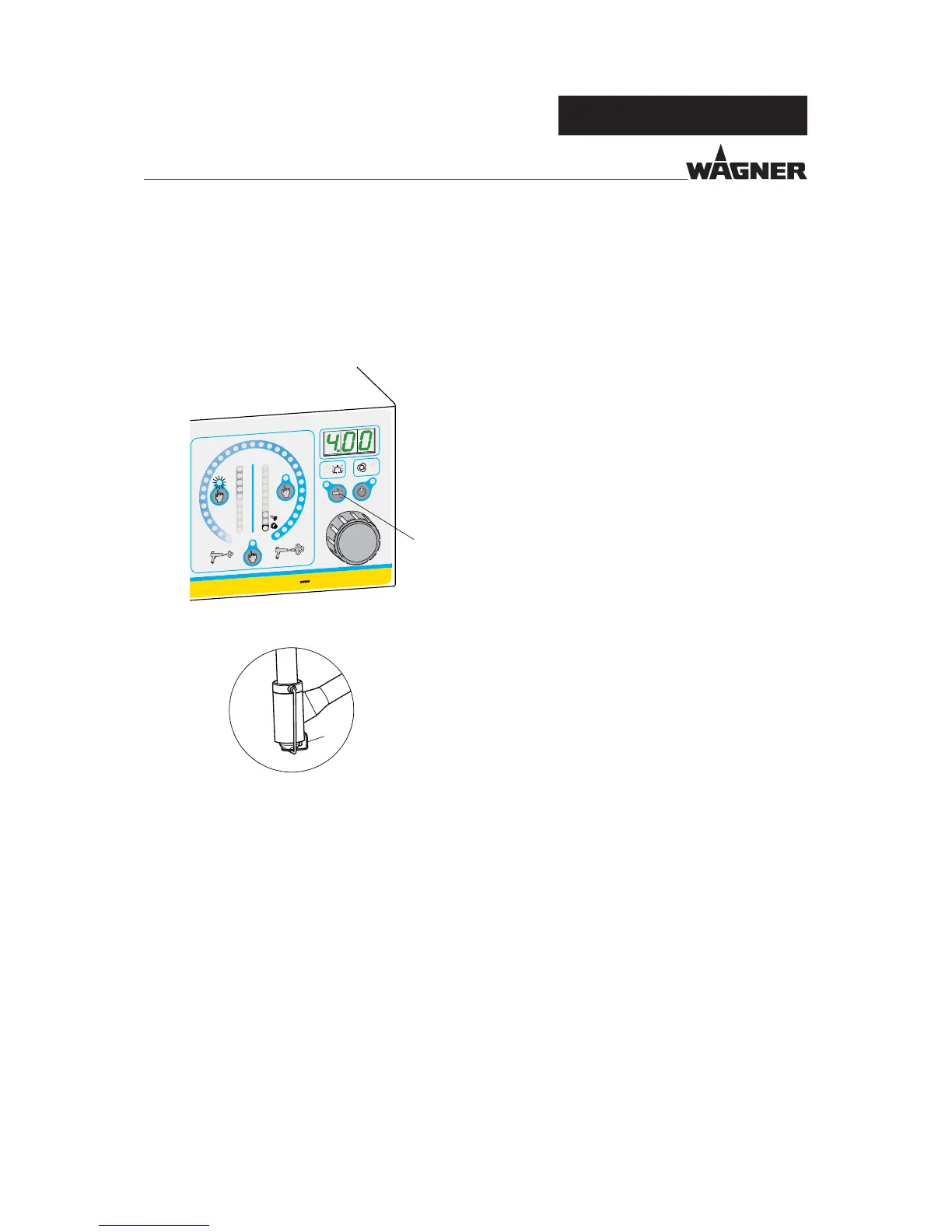

Procedure:
1. Release the trigger on the spray gun.
The high voltage and the powder feed are
deactivated.
2. Lift the feed unit up, underneath the injector,
and lift it out of the tank until retaining clamp
(H) swivels downwards.
3. Lower the feed system into the parking position
and swivel it to the right side so that no more
powder is forwarded.
4. Hold the gun in the spray booth and start the
ush function by pressing the "Flush" button (17).
The injector and hoses are ushed.
5. Switch o control unit.
6. Clean all powder feeding parts of the unit, such
as the spray gun, the injector and the powder
feed hose.
7. Place an opened powder tank (25–30 kg; 55.11–
66.14 lbs) with the new powder on the vibrator
table.
8. Swivel retaining clamp (H) away, lower the feed
unit to the powder surface, actuate the trigger
of the spray gun for a short time and then
release it.
9. Adjust the uid air at the throttle to the point
that the feed unit sinks into the powder due to
its own weight.
To adapt the programs to the new applications proceed as described in the EPG-Sprint XE
control unit's operating manual.
