76
OPERATING MANUAL
VERSION 05/2017 ORDER NUMBER DOC 2354920
SPRINT XE

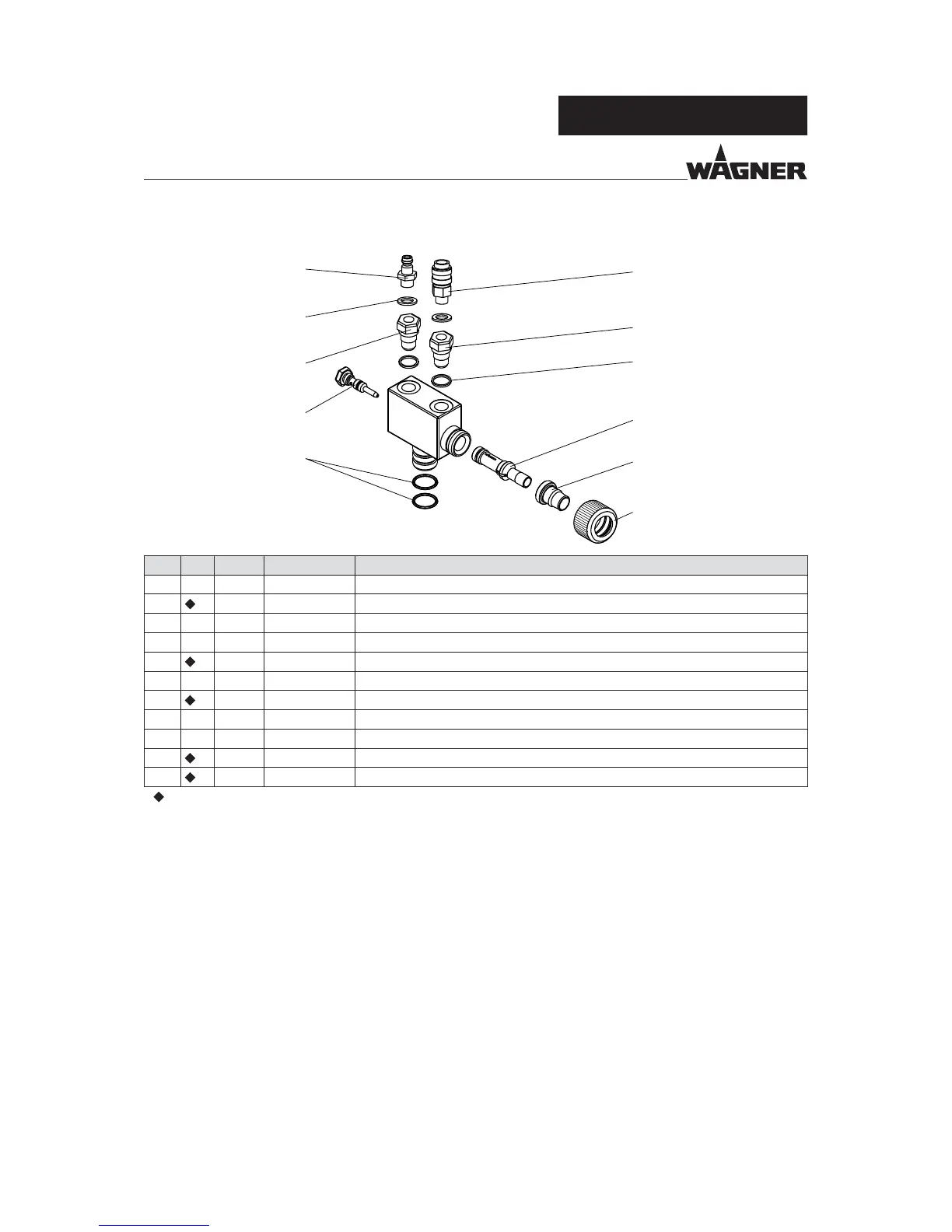

13.9 HICOATED PUMP F
8
10
5
4
11
9
5
7
1
2
3
P_00889
Pos K Stk Order No. Designation
241624 HiCoat-ED pump F
1 1 241229 Collector nozzle low air
2 1 241479 Hose sleeve
3 1 241466 Union nut
4
1 241930 Air nozzle
5 2 241460 Spring check valve
7 1 9970149 Sealing ring
8 1 9992709 Quick-release plug
9 1 9992710 Quick-release socket
10
1 9970150 Sealing ring
11 2 9974023 O-ring, electrically conductive
= Wearing parts
