53
OPERATING MANUAL
VERSION 05/2017 ORDER NUMBER DOC 2354920
SPRINT XE
8.3.2 60 L TANK VERSION
P_01785
EPG
SPRINT X
0
%
10
20
30
40
50
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
80
100
%
Tri
90
60
70
6
5
2
4
P_01140
7
1
3
8
8
9
10
P_01141
17

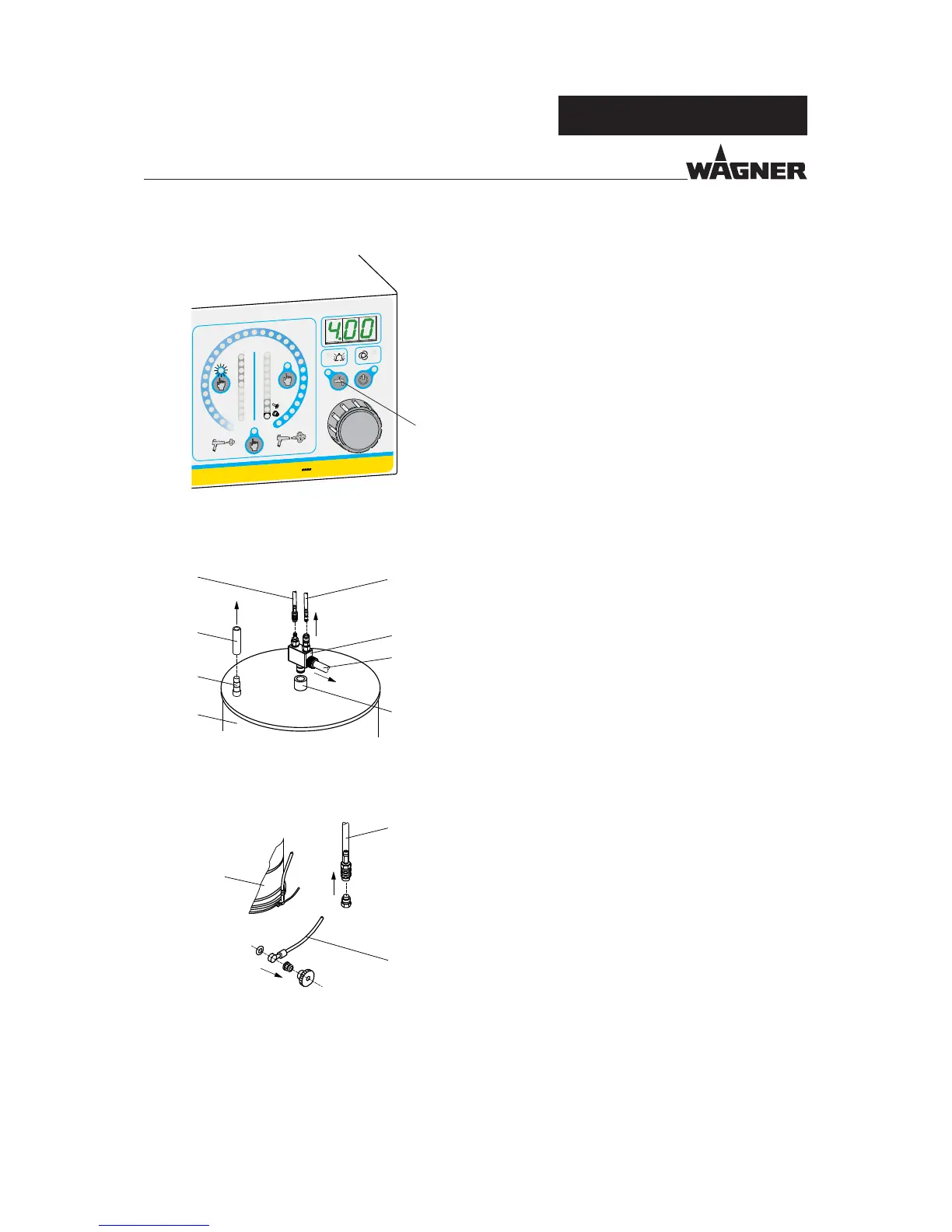

Procedure:
1. Release the trigger on the spray gun.
The high voltage and the powder feed are
deactivated.
2. Remove powder injector (1) from holder (2).
3. Hold the gun in the spray booth and start the
ush function by pressing the "Flush" button (17).
The injector and hoses are ushed.
4. Switch o control unit.
5. Release the union nut on powder feed hose
(3) and disconnect powder feed hose (3) from
injector (1).
6. Disconnect the red feed air hose (4) from injector
(1).
7. Disconnect the blue dosing air hose (5) from the
injector (1).
8. Check powder injector for wear and replace
worn parts if necessary.
The wearing and spare parts can be found in the
powder injector's operating manual.
9. Loosen the exhaust air hose (6) from the
connection (7) of the powder tank (8).
10. Pull the black uid air hose (9) o the powder
tank (8).
11. Loosen the grounding cable (10) from the
powder tank (8).
12. Lift the powder tank o from the equipment
trolley for cleaning.
13. Open the lid of the powder tank to empty the
powder tank and thoroughly blow out the
powder tank.
14. Completely remove all residual powder from the
suction system.
15. Pay special attention when cleaning the uid
base, check it for blockage or damage and
replace it if necessary.
The wearing and spare parts are in the "Spare
Parts" chapter of this operating manual.
