Benchmark Platinum-Edge [ii]: Installation Manual
SECTION 2 – INSTALLATION
OMM-136_E • GF-210 • 12/13/2019 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 34 of 57
2.10.3 Electrical Power Panel Internal Components
Remove the front panel to access the Power Panel. Run the electrical service through the
opening above the Power Panel and make the connections to the Power Breaker in accordance
to the Power Panel cover label.

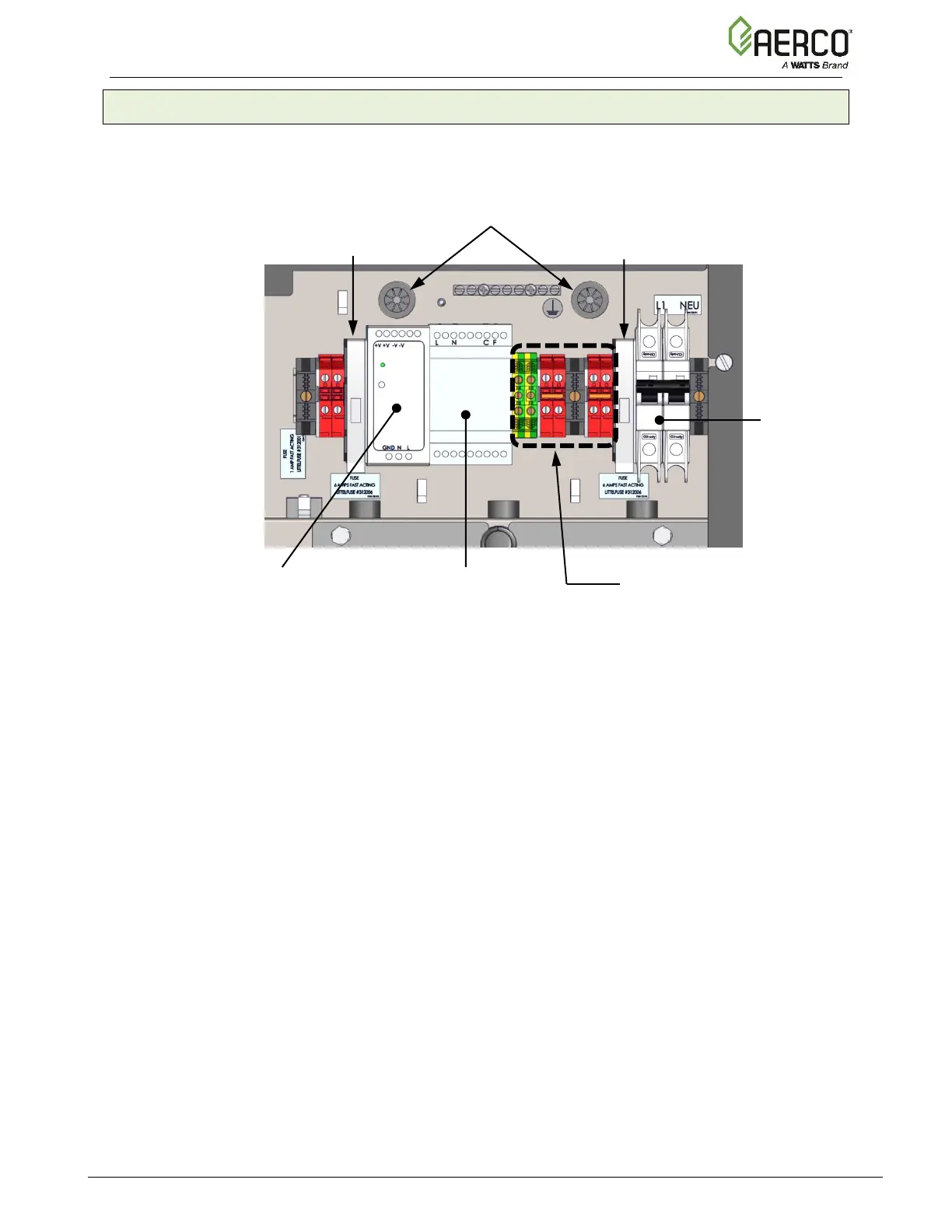

Figure 2-9a: BMK750 - 1500 110 V Power Panel
WIRE CONDUITS
12V POWER SUPPLY
FUSE BLOCK
TERMINAL BLOCKS
FLAME ROD SIGNAL
AMPLIFIER
POWER
BREAKER
FUSE BLOCK
