NOTE: Drill a 3/16” pilot hole in the mounting surface to avoid splitting the lumber. Do not
attach the mounting surface with nails.
WEATHERSTRIPS (MAY NOT BE INCLUDED):
Depending on the size of your door, you may have to cut or trim the weatherstrips (if neces-
sary) to properly fit into the header and jambs.
NOTE: If nailing product at 40°F or below, pre-drilling is required.
NOTE: Do not permanently attach weatherstrips to the header and jambs at this time.
FOR QUICK INSTALL TRACK: For the header, align the weatherstrip with the inside edge
of the header and temporarily secure it to the header with equally spaced nails. Starting
at either side of the jamb, fit the weatherstrip up tight against the temporarily attached
weatherstrip in the header and flush with the inside edge of the jamb. Temporarily secure
the weatherstrip with equally spaced nails. Repeat for other side. This will keep the bottom
section from falling out of the opening during installation. Equally space nails approximately
12” to 18” apart.
FOR FULLY ADJUSTABLE TRACK: For the header, align the weatherstrip 1/8” to 1/4” inside
the header edge, and temporarily secure it to the header with equally spaced nails. Starting
at either side of the jamb, fit the weatherstrip up tight against the temporarily attached
weatherstrip in the header and 1/8” to 1/4” inside the jamb edge. Temporarily secure the
weatherstrip with equally spaced nails. Repeat for other side. This will keep the bottom sec-
tion from falling out of the opening during installation. Equally space nails approximately 12”
to 18” apart.

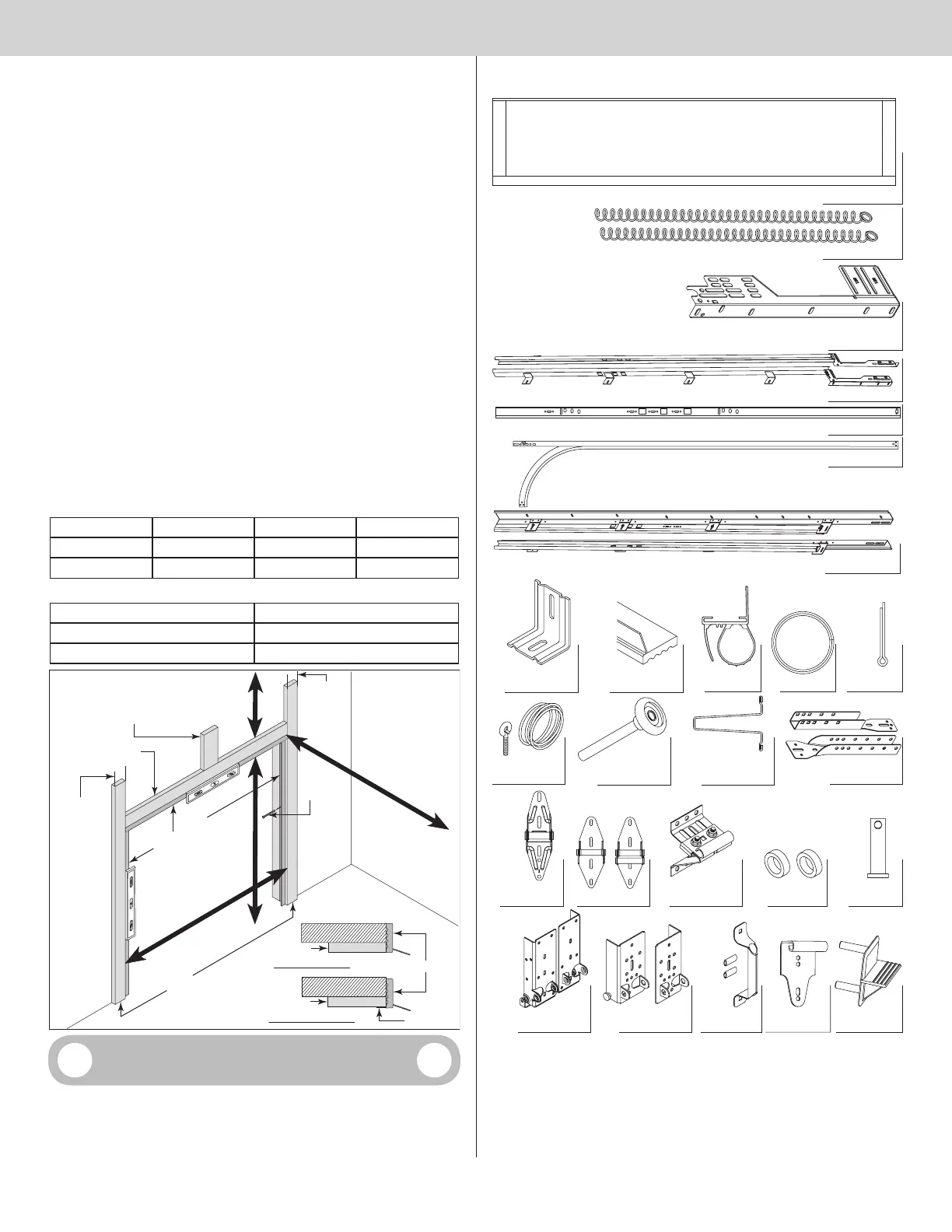

HEADROOM REQUIREMENT: Headroom is defined as the space needed above the top of
the door for tracks, springs, etc. to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” low headroom conversion kit is available for 12” radius only. Contact your local
Wayne Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the distance needed from the opening
back into the garage to allow the door to open fully.
BACKROOM REQUIREMENTS
Door Height Track Manual Lift Motor Operated
6’0” to 7’0” 12”, 15” Radius 98” (2489 mm) 125” (3175 mm)
7’1” to 8’0” 12”, 15” Radius 110” (2794 mm) 137” (3480 mm)
HEADROOM REQUIREMENTS
Track Type Space Needed
12” Radius 11” (279 mm)
15” Radius 14-1/2” (368 mm)
Weatherstrips
Level header
Finished
Door width
Jambs
Backroom
Plumb
jambs
Finished
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Weatherstrips
Jamb
Quick Install track
Other track systems
Jamb
1/8” to 1/4”
Min. Side
room
Clearance
is 3-1/2”
Min. Side
room
Clearance
is 3-1/2”
Package Contents
NOTE: Depending on the door model, some parts listed will not be supplied if not required.
Rear Back Hangs may not be included with your door.
Door sections (as required)
Extension Springs
Vertical tracks RH/LH (as required)
Riveted vertical track assemblies RH/LH (as required)
Angle mount vertical track assemblies RH/LH (as required)
Horizontal tracks RH/LH
Fully Adjustable flag angles
RH/LH (as required)
Drawbar operator
bracket (if included)
Cotter pin
(as required)
Cotter ring
Bottom
weather seal
F.A. jamb brackets
(as required)
Weather seals & nails
(If included)
Pull Down rope
(if included)
Track rollers
(as required)
Strut (U-shaped)
(if included)
Top
fixture assemblies
(as required)
Bottom corner
brackets (as required)
Bottom corner
brackets (as required)
(2) Spacers
(as required)
Clevis pin
(as required)
(Narrow) hinges
(as required)
Graduated hinges
(1) Step plate -
outside
(2) Lift handles
& spacers
(1) Step plate -
Inside
