Example for installation in a passenger car Thermo Top C / Thermo Top E
36
6 Example for installation in a passenger car

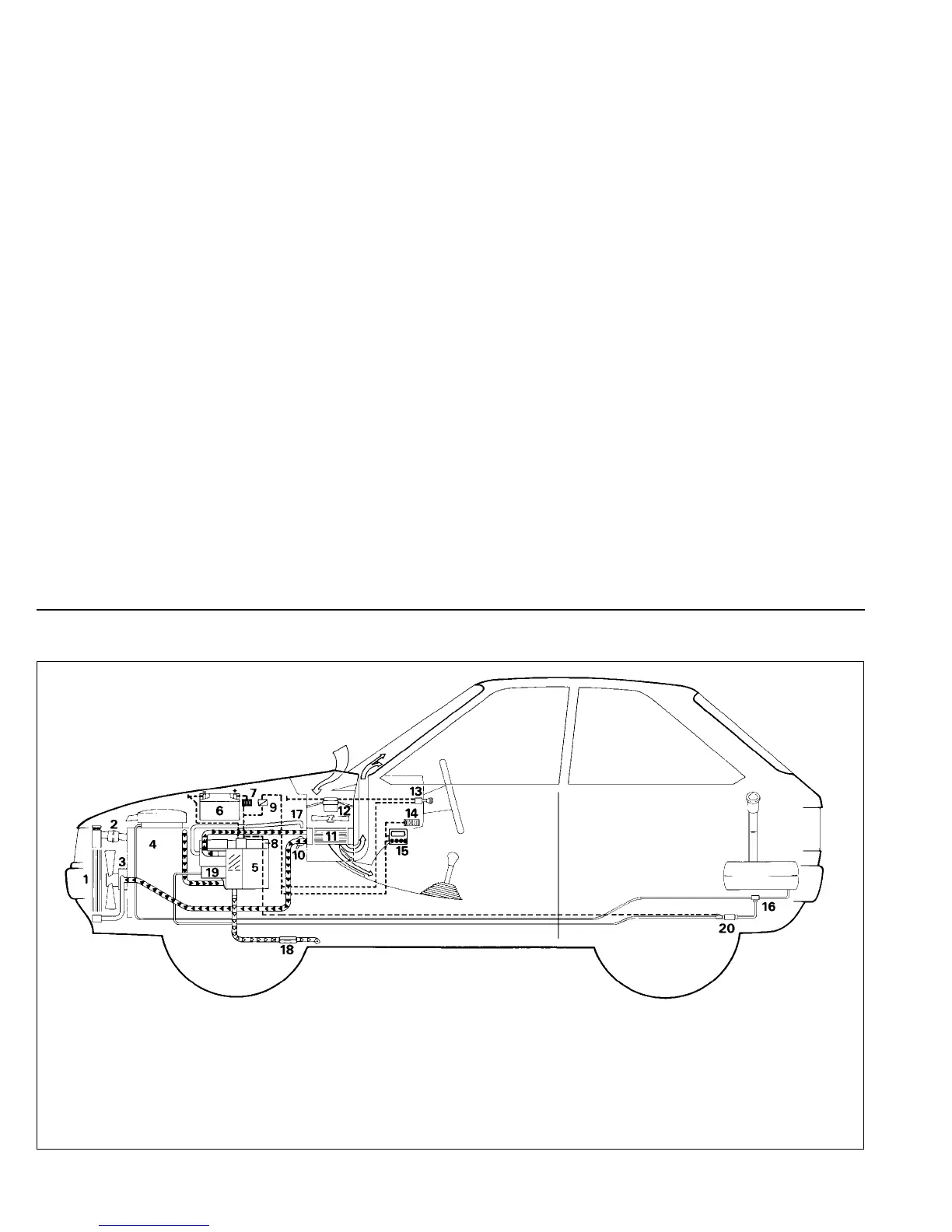

Fig. 3: Example for installation of the Thermo Top C or E heater in a passenger car
1 Radiator
2 Cooling water thermostat
3 Water pump (of the engine)
4 Engine with standard equipment
5 Water heater
6Battery
7 Fuse holder
8 Control unit (in the heater)
9 Relay (for vehicle fan)
10 Regulating valve for vehicle heating
11 Heat exchanger, vehicle heating
12 Fan for vehicle heating
13 Switch for vehicle heating fan
14 Fuse bank in vehicle
15 Timer
16 Fuel pickup
17 Intake silencer, combustion air intake line
18 Exhaust muffler
19 Circulation pump
20 Fuel metering pump
