Directions for use
Introduction
11

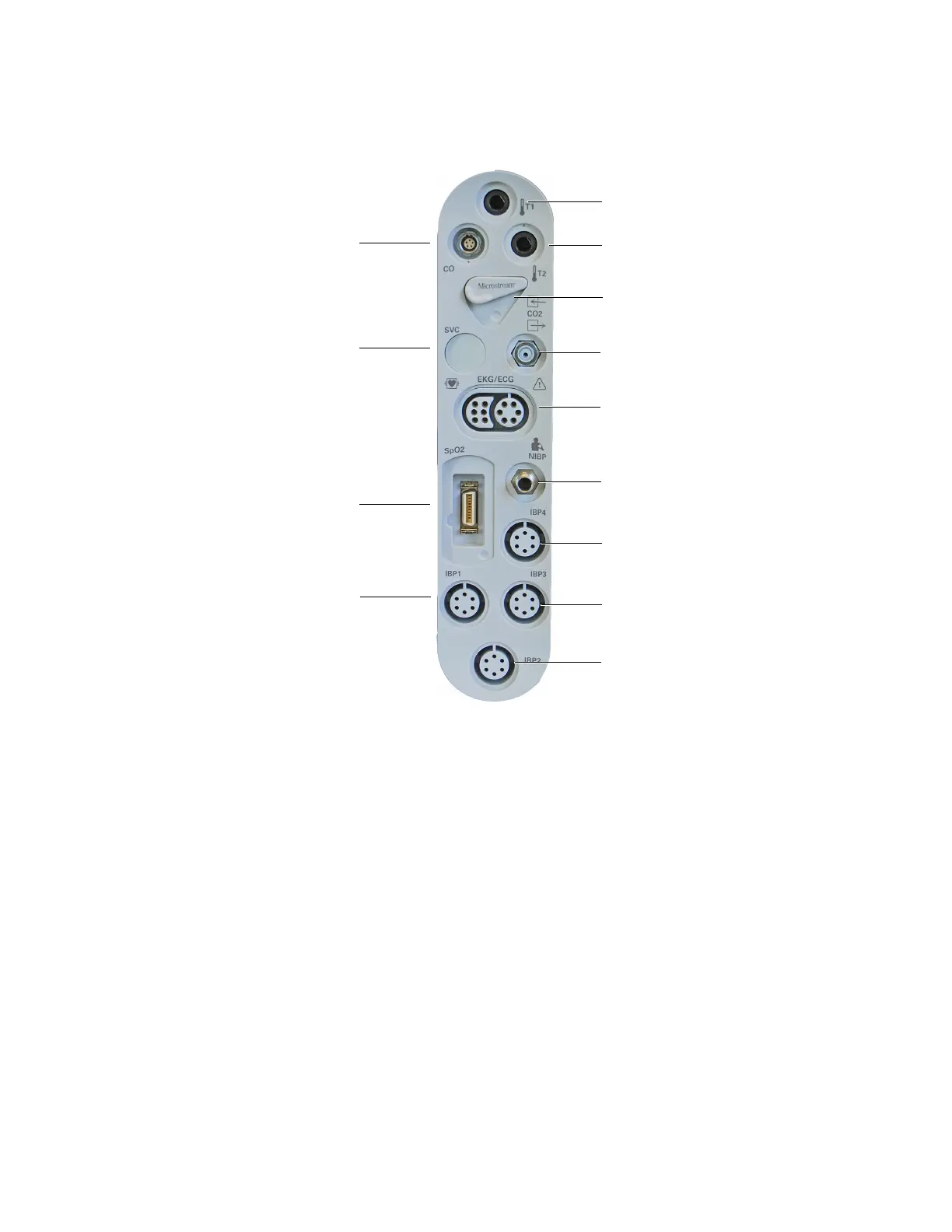

Connection panel
Note
The connection panel lay
out will vary
according to the
options installed.
T
emperature 1
etCO
2
sampling input
etCO
2
sampling exhaust
ECG
NIBP
IBP 2
SVC
(service only)
SpO
2
IBP 1
IBP 3
IBP 4
T
emperature 2
Cardiac Output
14
16
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety
5
User Responsibility
5
Intended Use
5
Organizational Measures
6
Safety
6
Safety Equipment
7
Alarms
7
Operation with Other Devices
8
Networks and Internet
8
Maintenance
9
Symbols
9
Additional Terms
11
2 Introduction
13
Standard Features
13
Options
13
The Welch Allyn 1500 Patient Monitor
14
Front Panel
14
Back Panel
14
Function Buttons
16
Setup Menu Overview
17
Display Overview
19
3 Operation
21
Startup and Initial Preparation
21
Inserting Recorder Paper
22
Switching the Monitor on or off
23
Initial Settings
24
Saving the User-Defined Settings as Default
25
Power Supply
26
Battery Operation
27
Standby Mode
28
Defining Parameter Fields
29
Defining Display Waveforms
31
Waveform Display
32
Trend Data
33
Settings Via a Parameter Field
35
4 Alarms
37
Display of Alarms
37
Silencing an Alarm
38
Suspend All Alarms
38
Turning off an Individual Parameter Alarm
39
Alarm Volume
39
Alarm Limit Setting
40
Physiological Alarms
41
5 Monitoring and Measurements
43
General
43
Ecg
44
Patient Preparation
44
Arrhythmia
54
ST Measurement (Option)
56
Respiration Rate
58
Capnography
60
NIBP Monitoring
67
Spo 2 Monitoring
71
IBP Monitoring
76
Temperature Monitoring
80
Cardiac Output (Option)
81
6 Maintenance
93
Maintenance Interval
93
Visual Inspection
94
Button Check
94
Speaker Check
94
LED Check
94
Alarm Check
94
Battery Maintenance
95
Inspecting and Cleaning the Monitor and Accessories
96
Inspection and Checklist Report
98
Replacing the Fuses
100
Troubleshooting
101
EMC Compliance
102
Mounting on a Wall or Stand
103
Recycling Monitor Components
103
7 Settings
105
Setup Menu Overview
105
Parameter Settings
115
8 Accessories
117
Miscellaneous
117
Mounting
117
Batteries
117
Cables
118
Nellcor Spo
118
Masimo Spo
118
Ecg
118
Ibp
119
Temperature
119
Nibp
119
Cardiac Output
119
A - Technical Data
121
System Data
121
Safety Standards
124
Measured Values
125
Index
133
