48
+
-
-
-
+
+
Lift Truck Installations

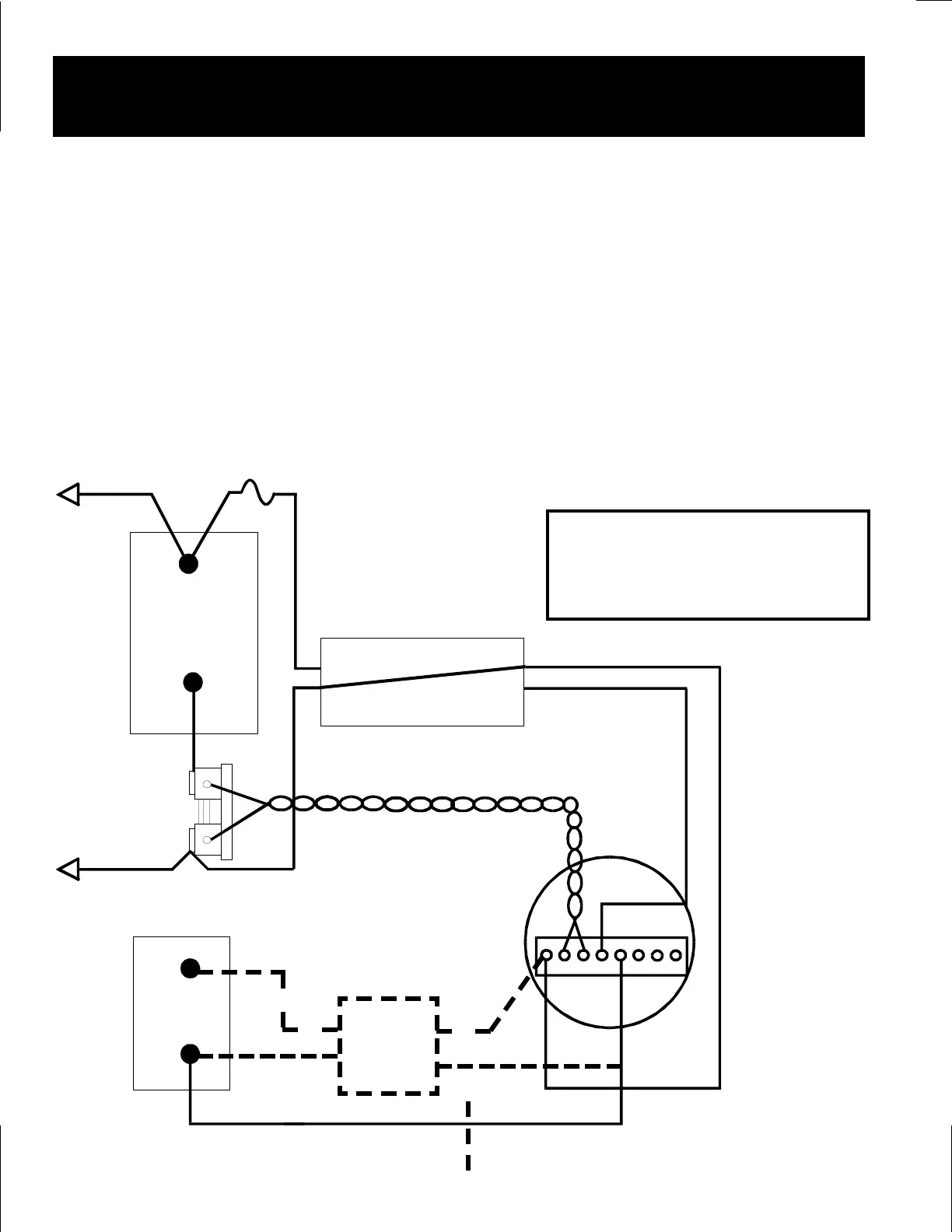

Installation of the Link 10 in lift trucks, which have the motive pack bonded
to the chassis and also have a 12 V accessory battery bonded to the chassis,
may use the diagram below for proper wiring of the appropriate Prescaler.
The 0–100 V Prescaler is used where system voltage does not exceed
100 V at any time, including during onboard charging. In any other instance,
a 500 V Prescaler must be used. If possible, install separate Anderson (SMH)
connector so pack can be charged in truck if batteries are not changed.
This way, battery cycles will be counted.
HV
Battery
Prescaler
Black
Red
(Tagged)
Black
Red
(Tagged)
2 3 4
5 6 7 8
1
Acces.
Battery
2 A fuse. Above 250 V
use 500 V rated fuse.
Link 10
Shunt
12 V
or
24 V
Warning: Reversing input
voltage destroys Prescaler
and voids warranty.
TO ANDERSON CONNECTOR
This line is not used if DC-DC converter is installed.
Optional
DC-DC
Converter
(-)(-)
(+)
To Next Page
