11-30 Phaser 7750 Printer Service Manual
Compiler Tray
1. Remove all covers, see page 11-17.
2. Remove the finisher control board shield, see page 11-23.
3. Disconnect P848.

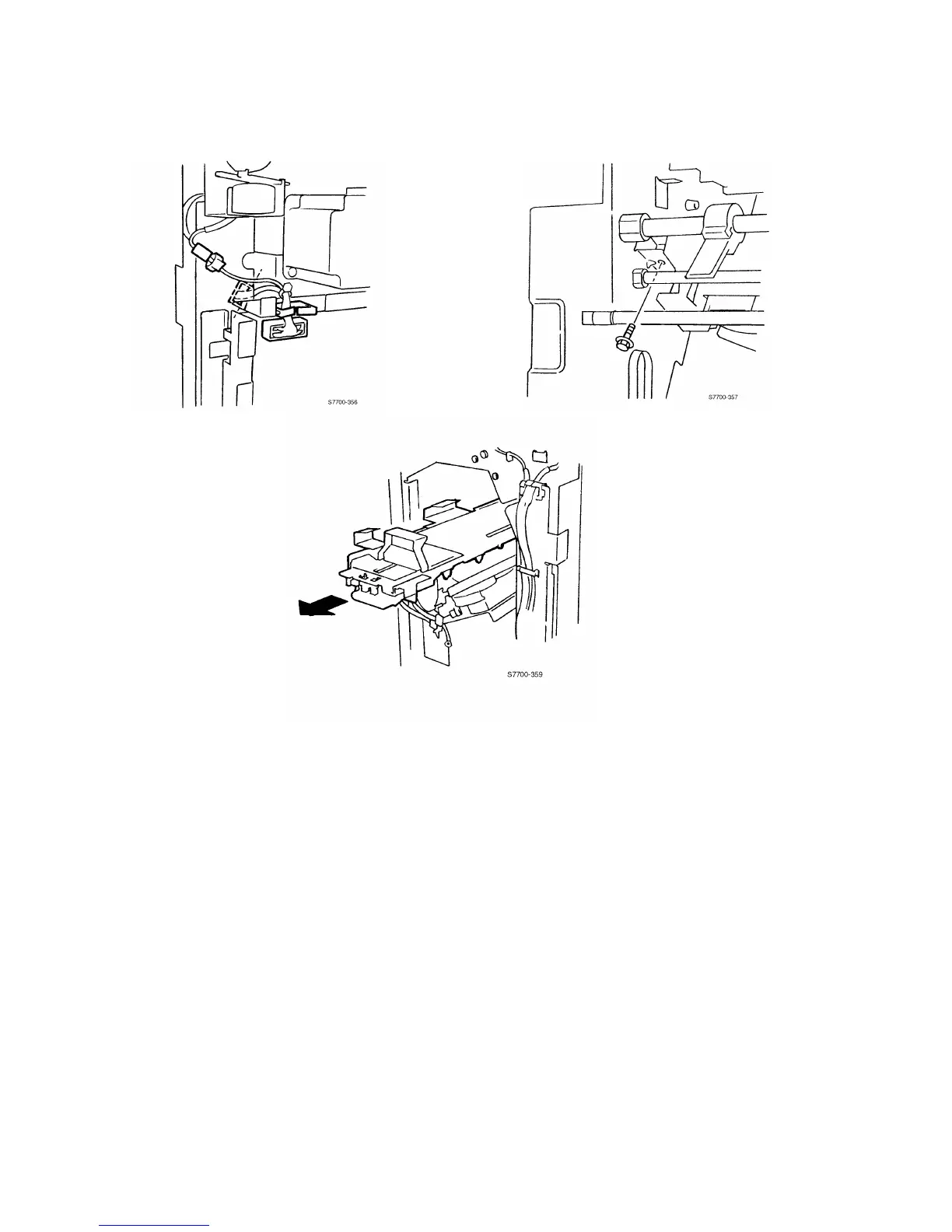

4. Remove the set clamp solenoid connector.
5. Remove the staple unit, see page 11-29.
6. Remove 2 screws from the bottom of the tamper assembly, front and rear.
7. Push the wiring harness into the printer frame.
8. Tilt the carriage up and slide straight back letting the carriage drop down in the
frame, then slide straight out the stapler cavity.
