ML505/ML506/ML507 Getting Started Tutorial www.xilinx.com 11
UG348 (v3.0.2) October 9, 2008
Board Setup
R
4. Connect the AC power cord to the power supply brick. Plug the power supply adapter
cable into the ML50x board. Plug in the power supply to AC power.
5. Set SW3, the configuration address and mode DIP switch, to 00010101 (Figure 2). DIP
SW3 is located in the top left corner of the ML50x below the PS/2 connectors.
6. Connect a null modem serial cable between your computer and the ML50x board, and
open a serial terminal program:
♦ Select Start → Programs → Accessories → Communications → HyperTerminal
♦ In the Connection Description window, type 9600 in the Name box, then click OK
♦ In the Connect To window, click Cancel
♦ In the 9600-HyperTerminal window, select File → Properties
- Select the Connect To tab
- Select COM1 in the Connect using box (see Figure 3)
- Click Configure...

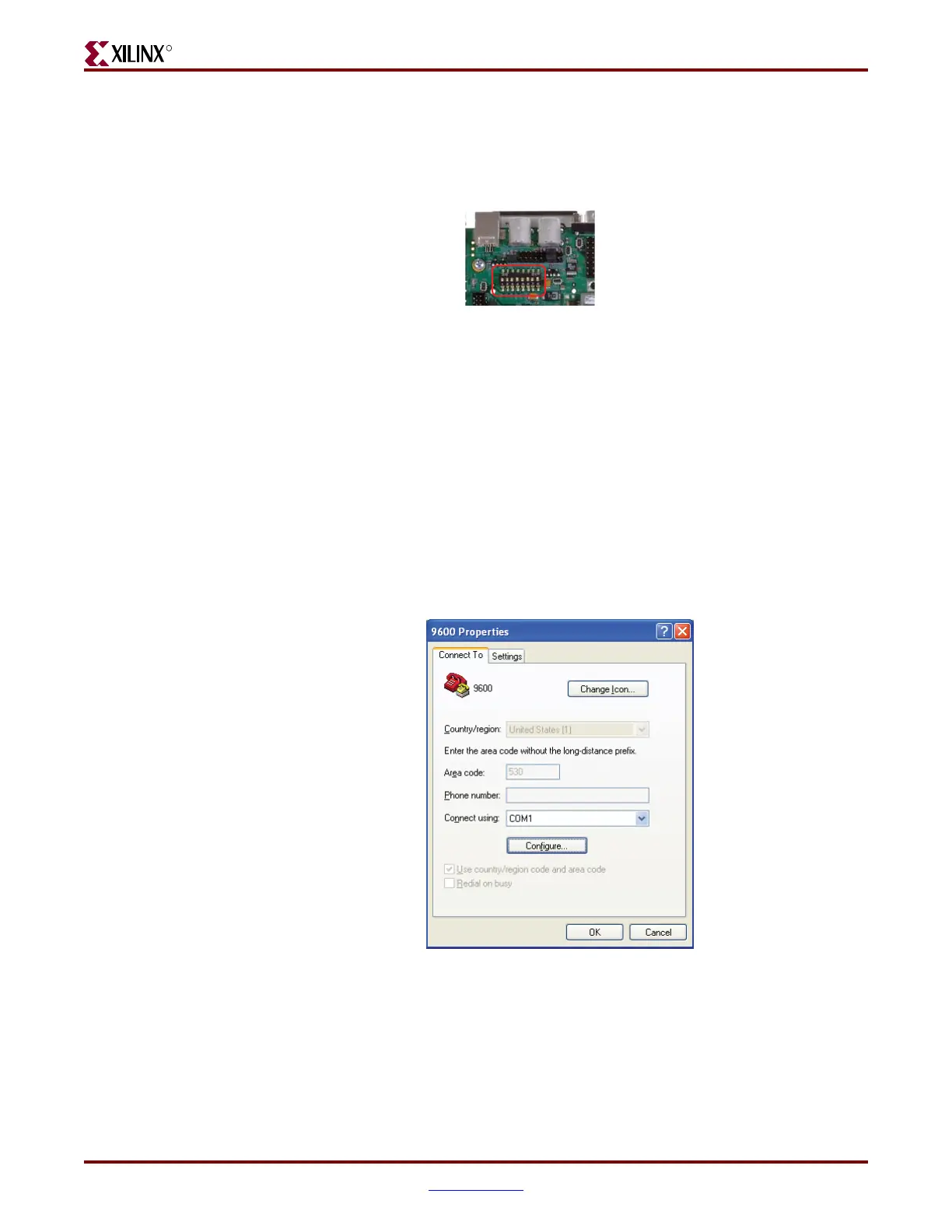

Figure 2: Configuration DIP Switch Settings
Figure 3: HyperTerminal Setup and Properties
UG348_02_040408
UG348_03_040408
