Building the DTB:

Here, the DTS at the link here is used. This is also added to this tutorial in the linux_files folder. Users

can modify this to suit their needs.

 linux-xlnx/scripts/dtc/dtc -I dts -O dtb -o linux_files/system.dtb linux_files/ zynqmp-zcu102-

revB.dts

Booting U-BOOT SD Boot Image:

Launch HSI and use the bootgen commands below:

 bootgen -arch zynqmp -image bootgen.bif -o i BOOT.BIN -w on

The bootgen.bif file is seen below:

the_ROM_image:

{

[fsbl_config] a53_x64

[pmufw_image] pmufw.elf

[bootloader] zynqmp_fsbl.elf

[destination_device=pl] design_1_wrapper.bit

[, destination_cpu=a53-0] bl31.elf

[, destination_cpu=a53-0] u-boot.elf

[destination_cpu=a53-0, load=0x80000] Image.bin

[destination_cpu=a53-0, load=0x4000000] system.dtb

}

Note: The Image is renamed Image.bin. If using Petalinux, this would be the uImage.

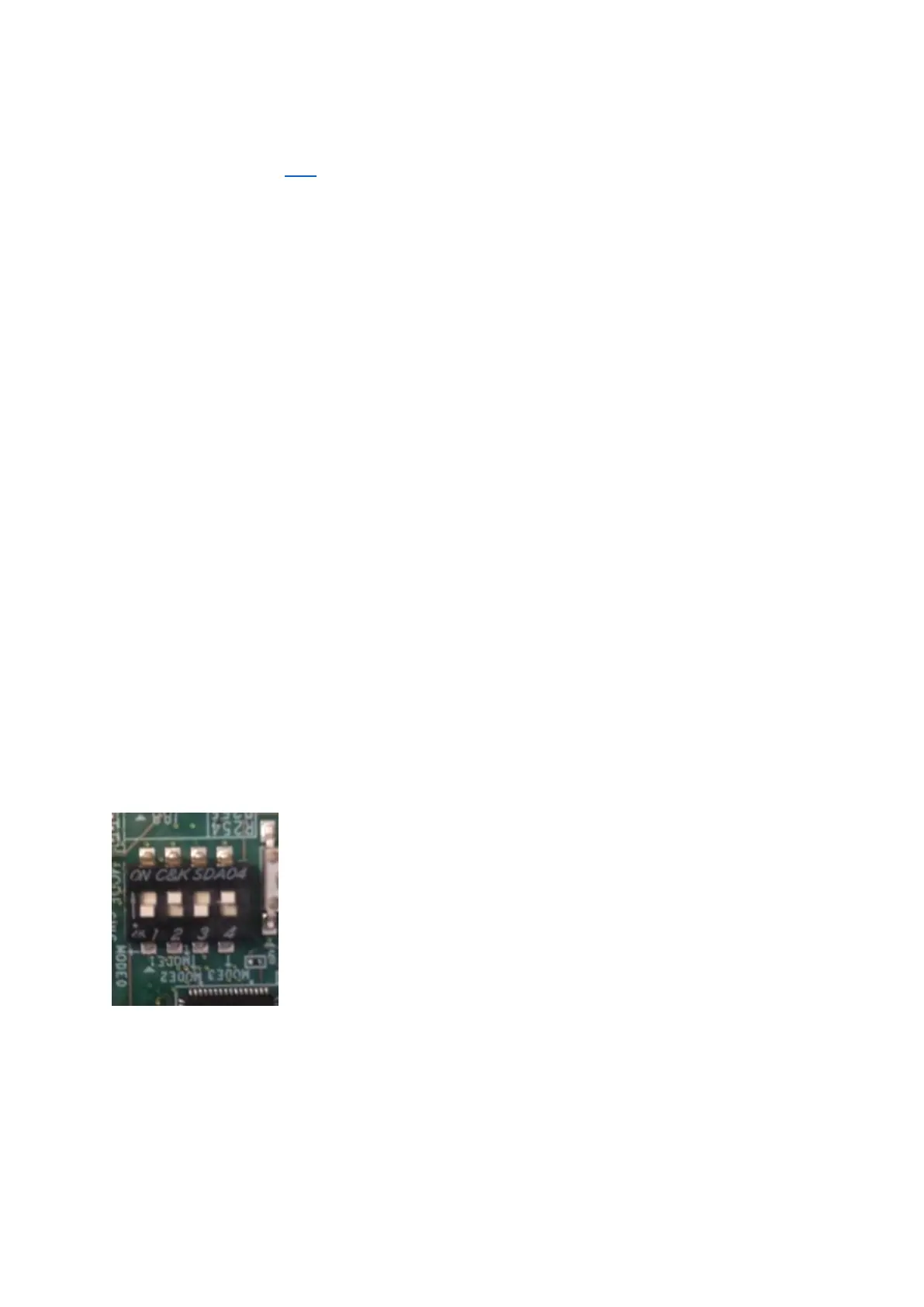

Copy the resulting BOOT.BIN onto a SD Card, and plug this into the ZCU102. Set the Boot mode to

boot from the SD card: (shown below), then set up the serial port, and power on the ZCU102.

This will boot the u-boot, then the Linux kernel. If it fails to boot the Linux image, view the

xilinx_zynqmp.h in the uboot include/configs. Otherwise, just use the command below:

 booti 0x80000 – 0x4000000

Note: Users can also achieve this from the SDK create boot image GUI. User can create a new BIF

from scratch, or import one from above. This flow is recommended as it is less error prone.

Xilinx ZCU102 Getting Started Quick Guide
