© Copyright 2016 Xilinx

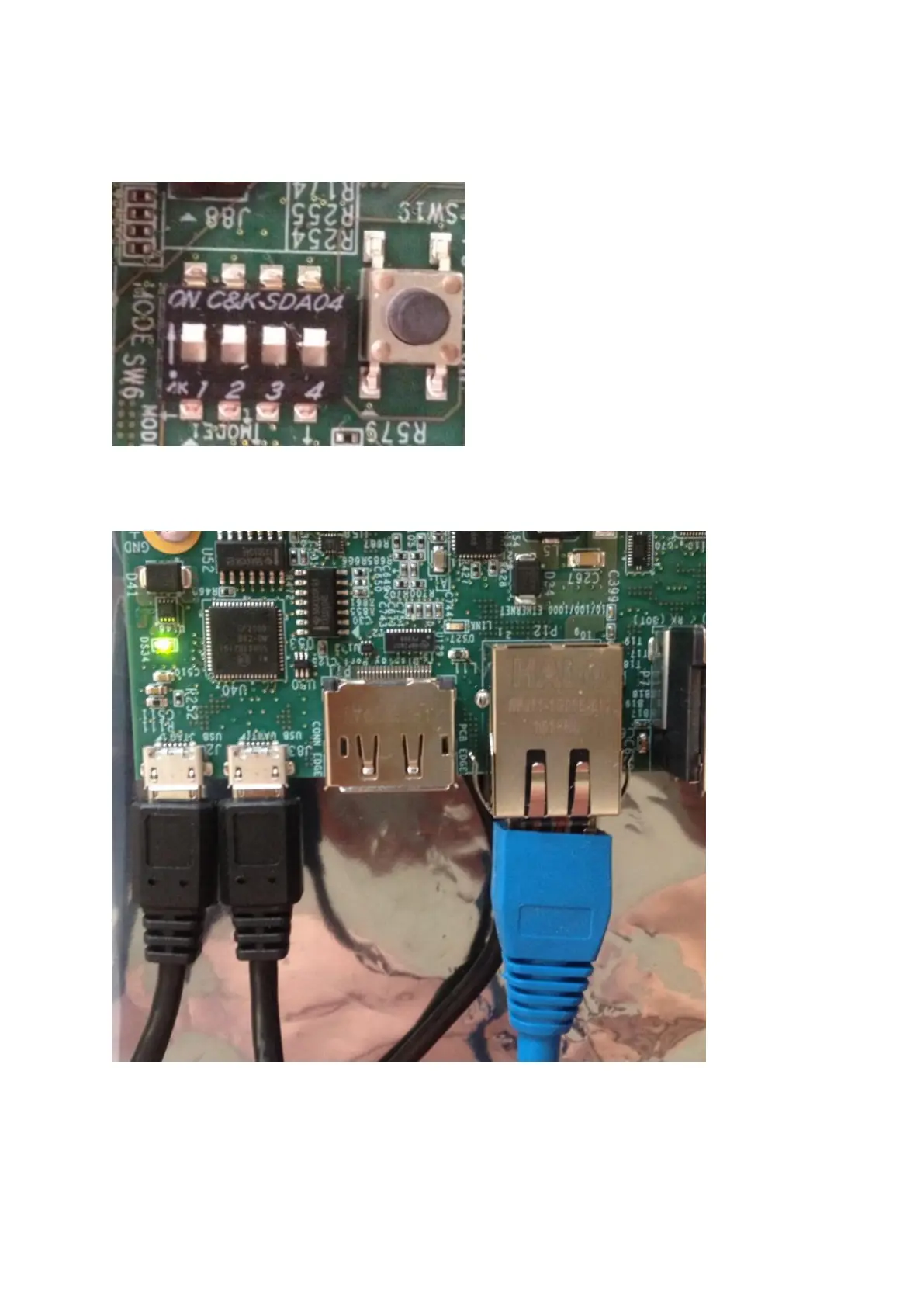

Task 3: ZCU102 board Setup:
Set the Boot Mode (SW6) pins to JTAG Mode:
Plug in the Ethernet Cable into P12
Plug the USB UART and the USB JTAG
