Xinje VB3 User Manual

V5 series inverter
28

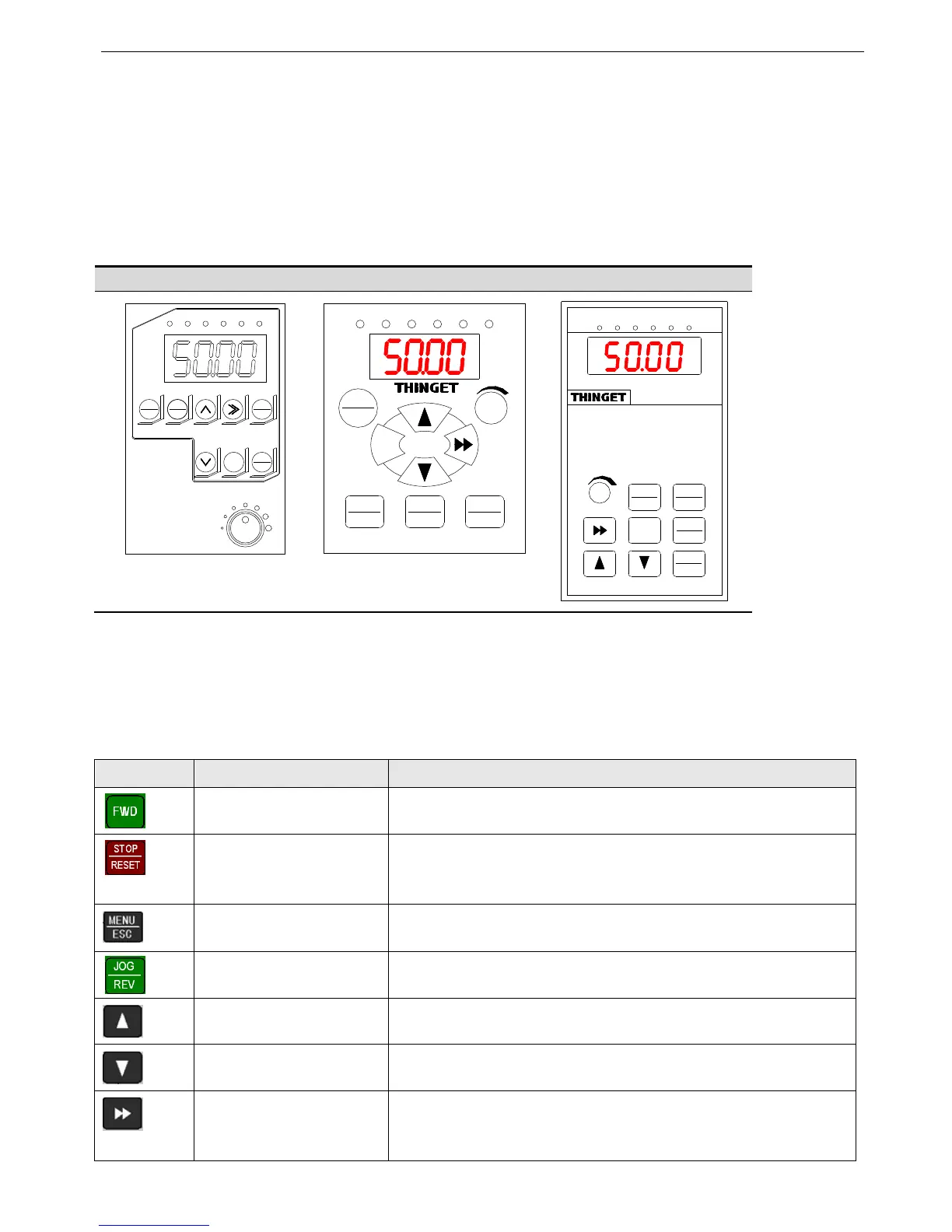

3-2. Use the keyboard
3-2-1. Keyboard layout
Start, speed, stop, brake, running parameter setting and control of the peripheral can be performed by inverter’s operation
panel and control terminals; operation panel is shown in Fig.3-2.
VB3 0.4~0.75KW VB5-OPU-01 V5-OPU-03
Fig. 3-2 Illustration of operation panel
3-2-2. Keyboard function
There are 8 keys and 1 potentiometer on the operate panel and the functions are shown in the following table.
Key Name Function
Forward running In operate panel control mode, press this key to run forward
Stop/Reset
In operate panel control mode, press this key to stop running. In error mode, press it to
return to normal state.
Program/Exit Enter or exit programming state
Jog/Reverse run
P3.45=0, jog running
P3.45=1, reverse running
Increase Increase data or function code
Decrease Decrease data or function code
Shift
In editing state, press this key to select the bit to be changed; in other state, press this
key to see the monitor parameters.
MENU
ESC
JOG
REV
ENT
DATA
FWD
STOP
RESET
FWD REV ALM HZ V A
MENU
ESC
FWD
ENT
DATA
JOG
REV
STOP
RESET
FWD REV ALM HZ V A
MENU
ESC
ENTER
DATA
FWD
JOG
REV
STOP
RESET
FWD REV ALM HZ V A
