NON-COMBUSTIBLE CONSTRUCTION
Your XO griddle is designed easy placement in a non-combustible structure such as an island
or similar outdoor structure built of masonry or Hardibacker.
In such an installation, the griddle has a perimeter flange that rests on the countertop allowing
the unit to simply slide into place in the prepared cutout. No additional fastening is required.
Do not grout the unit in place. This allows easy removal for future service or maintenance.
In such installations where the surrounding materials used are non-combustible, a minimum
clearance of 12” must be maintained on either side and 5” behind the griddle.
WHEN COMBUSTIBLE CONSTRUCTION MATERIALS ARE PRESENT
Combustible materials are defined here as anything which will ignite, melt, emit smoke and/or
fumes or be deformed by heat.
If combustible construction materials are present in the vicinity of the griddle such as wooden
framing, vinyl or wooden siding, etc . -
a minimum clearance of 18” must be maintained in all
directions from
the griddle AND the unit must be installed using an XOG30JACKET insulated
liner. The cutout dimensions are increased to accommodate the liner which is placed without
fastening into the cutout. The liner is supported by a perimeter flange which rests upon the
countertop and the griddle rests upon that flange.

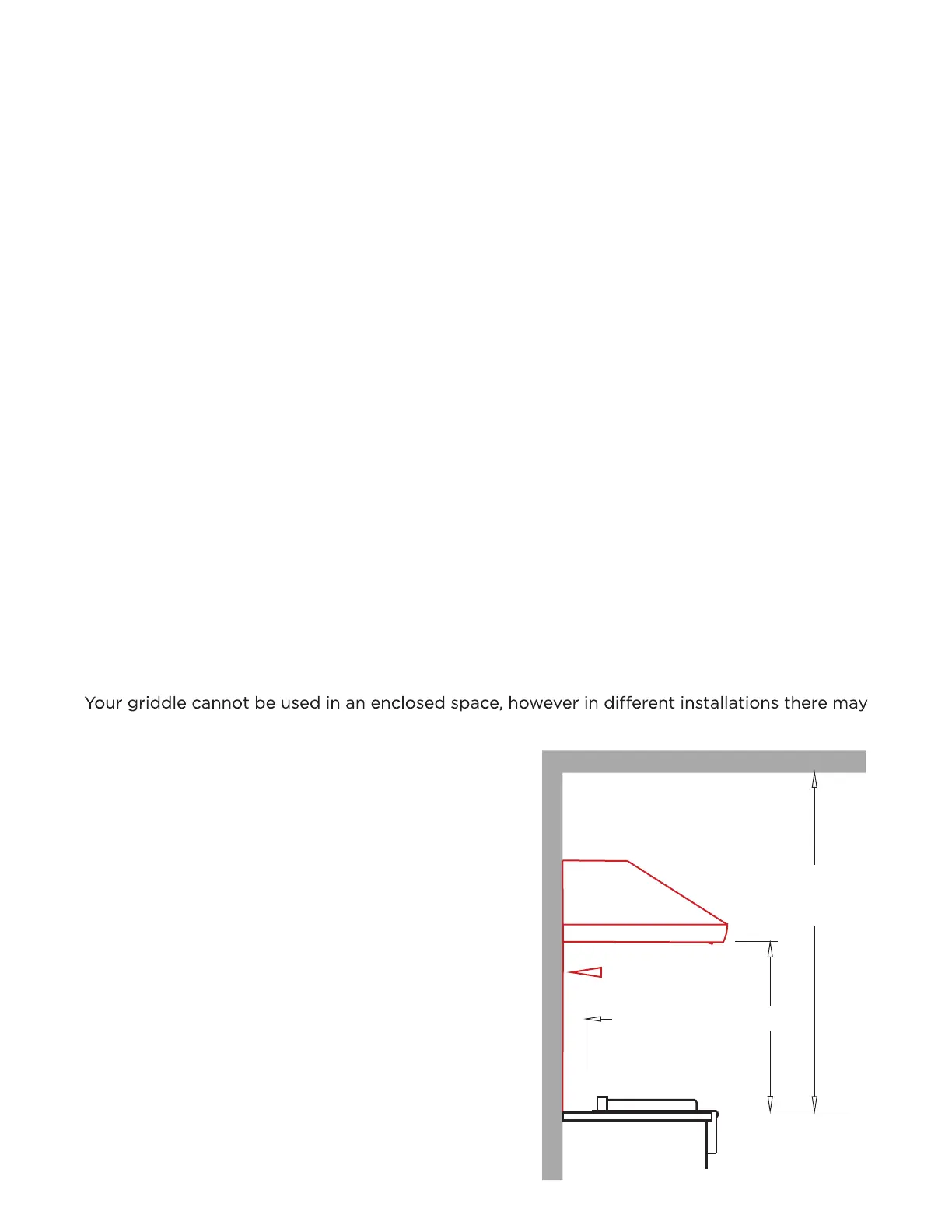

OVERHEAD CLEARANCE
also be overhan
Minimum overhead clearance (above cooking surface)
60” to Non-Combustible overhead.
Hood must extend a minimum of 3” on all sides of
the cooking area.
Hood must have a flow rate of 1000 CFM minimum.
Hood must be connected to a dedicated GFI
protected circuit.
All other minimum clearances must be observed.
Combustible Overhead Construction Must Be
Protected By An Approved Hood.
Use Of An Approved Hood Is Highly Recommended
With Non-Combustible Overhead Construction.
ging or overarching structures which must be taken into account.
griddle location (continued)
12
5”
min.
30” to 36”
60”
minimum above
cooking surface to
non-combustible overhead
We recommend oversizing the hood by 3" on
each side to maximize efficiency and capture
space
For example;
A 30" Griddle would require a 36" Hood
NON-COMBUSTIBLE
BACKSPLASH
REAR WALL
OVERHEAD CONSTRUCTION
Non-Combustible Construction
Sides 12” Back 5”
Combustible Construction
Sides 18” Back 18”
