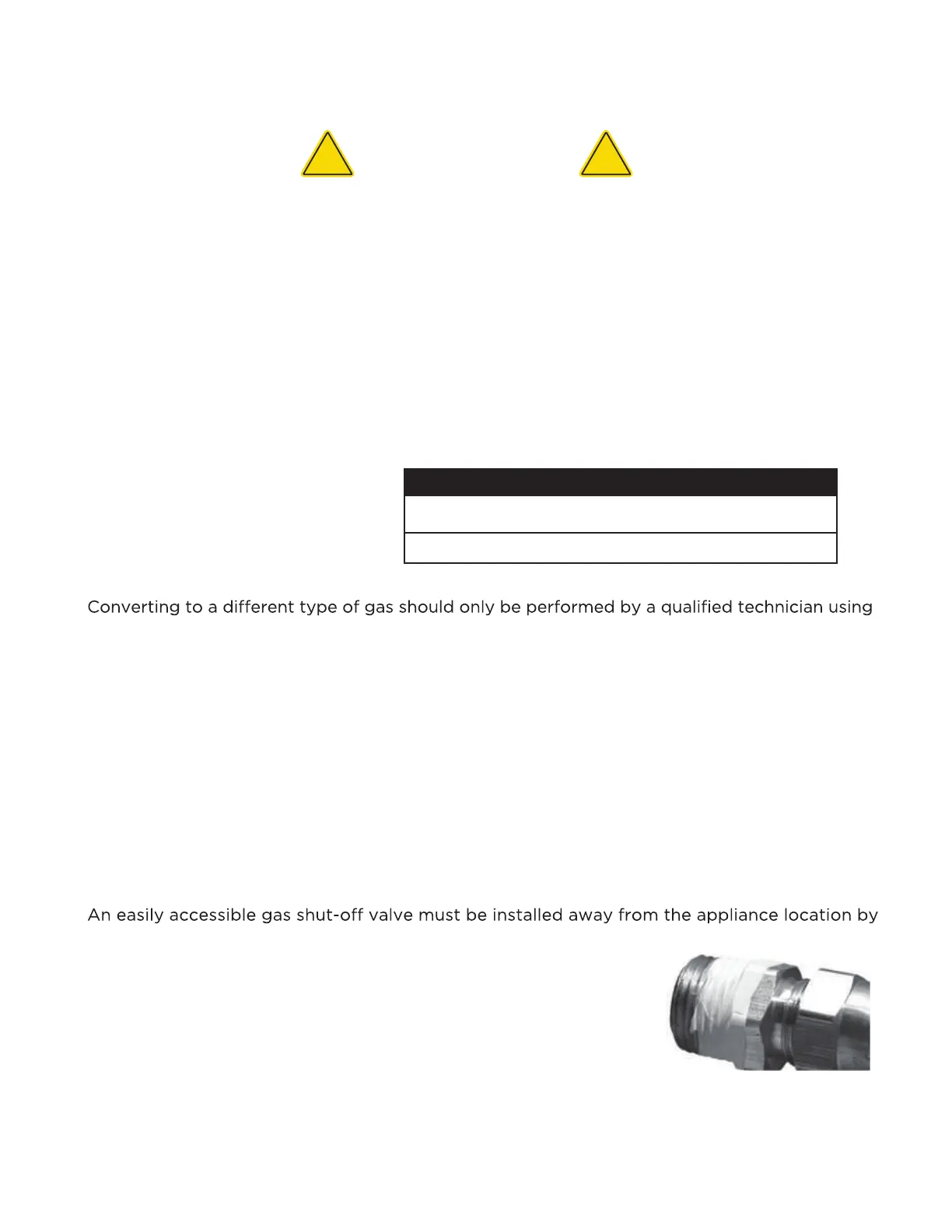

WARNING
NEVER CONNECT A GAS LINE DIRECTLY TO THE GRILL. A PRESSURE REGULATOR MUST
BE INSTALLED ON ALL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE IT AND XO SUPPLIES
THE CORRECT REGULATOR WITH YOUR UNIT. REMOVING OR FAILING TO INSTALL THE
PRESSURE REGULATOR CAN RESULT IN FIRE AND SERIOUS PERSONAL INJURY AND WILL
VOID THE WARRANTY
critical that the gas you use matches that which the grill was set up for. You can verify that
by checking the rating
plate. The Rating Plate lists serial numbers, model numbers and gas
type.
Ensure that the gas supplied meets with the minimum pressure requirements. Do not operate
the grill on any gas other than that for which the grill has been set.
Water Column Requirements
Both the regulator and manifold
orifices have been tuned for the
type gas identified on the rating
plate.
factory original parts from XO. All installation and all installation parts must conform to local
codes with the National Electrical Code, ANSI Z223.1/NFPA 70 latest edition and the National
Fuel Gas Code, ANSI Z223.1/NFPA54 in the U.S. and CGA-B149.1/.2 in Canada.
XO recommends that only qualified professionals perform the required plumbing, installation
and maintenance on this product.
To ensure satisfactory performance, the gas supply line must be sized to accommodate the
total BTU requirements of all the gas-fired equipment that will be connected to that line. In
no case should an inlet pipe less than 3/4” ID or 1” OD ever be used to connect this product.
Calculate the total BTU output of all equipment and refer to “Gas Supply Line Runs” for
allowable run distances for 3/4” pipe. Failure to meet these minimum requirements may
reduce performance of the grill and any other appliances running on that supply line. Always
keep supply line runs as short as possible. (See: “BTU Output” for specific model outputs)
a qualified plumber.
Keep the first two pipe threads free of any sealing compound
to prevent pieces breaking loose which could clog a burner valve.
Do not use sealing compound on flare fittings.
For built-in installations it is recommended that flexible pipe used
be kept as short as possible.
FUEL
N G
L P
WC MAX INLET
10 in
14 in
WC MIN INLET*
4 in
11 in
*under full load
gas connections
!
!
15
XO cooking appliances are factory set to use either propane (LP) or natural gas (NAT). It is
