WARNING: Before attempting any burner maintenance ensure the gas supply is OFF and all
control knobs are in the OFF position. Make certain the griddle has completely cooled before
proceeding.
TO REMOVE THE BURNERS
Remove the griddle top (
All burner tie downs to prevent shifting during shipping must be removed if they have not been
already.

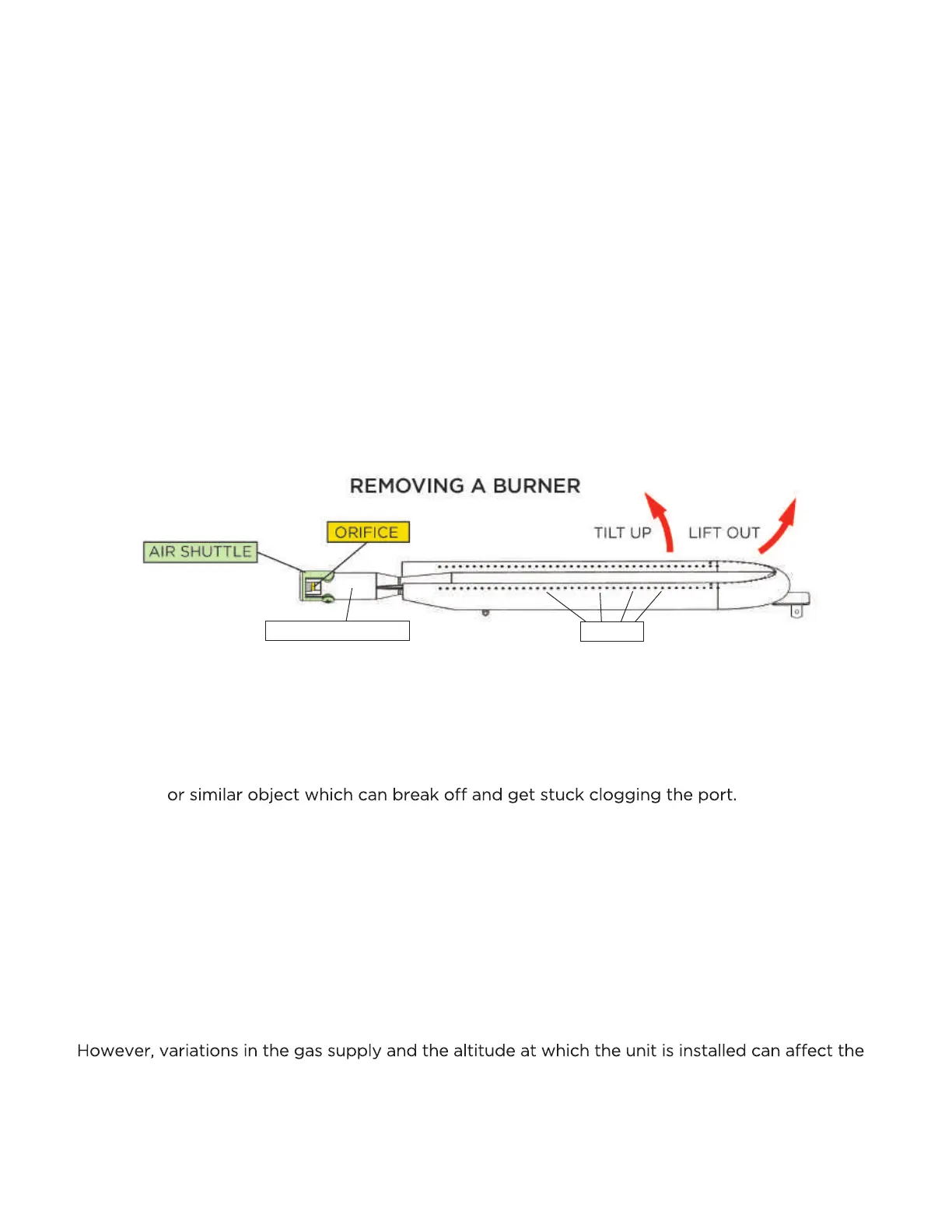

Tilt the far end of the burner up (at rear of griddle) and lift the burner up and away from the
orifice. at the front of the burner. Be careful not to disturb the air shuttle p osition.
CLEANING THE BURNERS
To maximize your burner performance, clean the exterior of the burner with a wire brush, Clear
stubborn scale with a scraper.
Clear any clogged gas ports with a straightened paper clip - do not use a wooden or plastic
toothpick
Shake out any debris through the venturi and air shutter.
Inspect the venturi / air shuttle to make certain it is clear. If any obstructions can be seen, use a
WARNING: TEAM LIFT, this requires two people)
WHEN YOUR GRIDDLE ARRIVES - THE BURNERS ARE SECURED IN PLACE BY CABLE TIES
TO PREVENT DAMAGE IN SHIPPING. THESE MUST BE REMOVED PRIOOR TO INITIAL USE.
WARNING
maintenance - burners
VENTURI SECTION
PORTS
29
straightened wire coat hanger and or bottle brush to clean them out.
WARNING: WHEN REPLACING THE BURNERS, THE VENTURI SECTION MUST BE CENTERED
AROUND THE ORIFICE. FAILURE TO LOCATE ON THE ORIFICE CAN RESULT IN FIRE, PROPERTY
DAMAGE, INJURY OR DEATH.
AIR ADJUSTMENT
Burners are tested and pre-set at the factory for the type of fuel indicated on the model label.
burner’s operation.
In addition, if the unit is converted to burn a fuel other than what was originally set at the facory
the air shuttle position will have to be adjusted. This should only be done by a trained qualified
professional experienced in grill repair and maintenance.
