BAG
902308
SH M3x8
903306
SFH M3x6
306219
SHIM 3x6x1
306219
SHIM 3x6x2
306219
SHIM 3x6x3
07
For improved weight balance and
for more space for electronics, we
recommend using a narrow, light servo.
We recommend using the grommets included with
the servo to avoid unwanted chassis tweak.
Add shims between servo and alu servo mounts
in case there is no space between servo and
servosaver arm. There are 3 different thickness
of shims.
1mm 2mm 3mm
Min. space 0.5mm
TOP VIEW
DETAIL
FROM
SERVO
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
306219
306200-K
902306
903306
306310
306301
902308
309402
960140
306184
306184
903306
902308
903306
305912~306000 NARROW PINION GEAR ALU HARD COATED (OPTION)
30 6163-K GRAPHITE BATTERY STRAP 6-CELL (SET) - BLACK (OPTION)
30 6184 LONG COMPOSITE LIPO BATTERY BACKSTOP (1+1)
30 6186 ALU LIPO BATTERY BACKSTOP (F+R) (OPTION)
30 6200-K ALU SERVO MOUNT - BLACK (2)
30 6219 COMPOSITE SET OF SERVO SHIMS (4)
30 6301 ANTENNA MOUNT - THIN
30 9402 BODY CLIP FOR 6MM BODY POST (4)
90 2306 HEX SCREW SH M3x6 (10)
90 2308 HEX SCREW SH M3x8 (10)
90 3306 HEX SCREW SFH M3x6 (10)
96 0140 NUT M4 WITH FLANGE (10)
306310 ANTENNA (2)

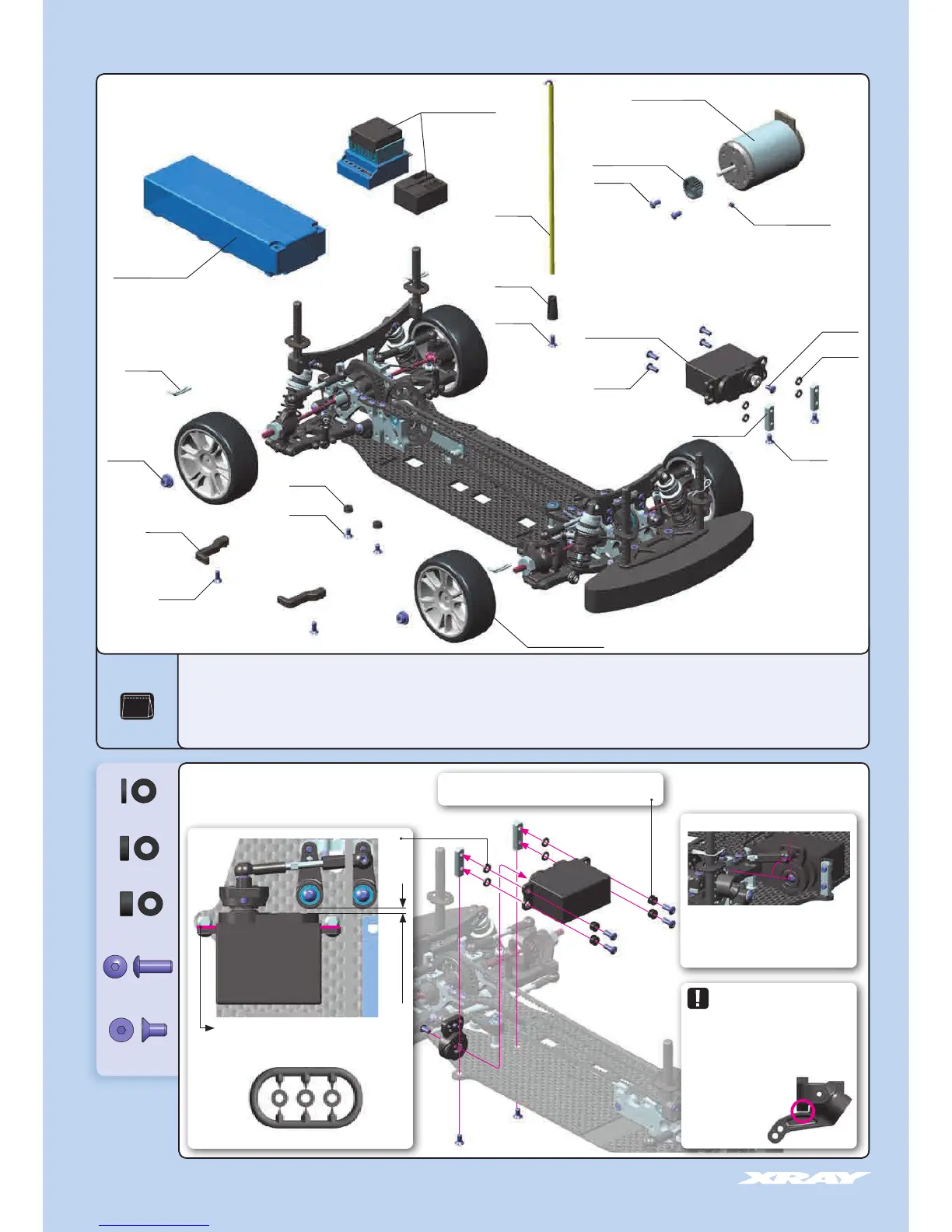

7. FINAL ASSEMBLY
DETAIL
Attach servo arm to servo output shaft
using screw from servo. Servo saver must
be perpendicular to chassis when servo
is in neutral.
When adjusting steering on the radio, we
recommend using full steering adjustment
in order to get the best steering from the
car. It is important to verify that the steering
block does not touch
the C-hub; that
would lead to chassis
tweak due to extra
servo strain.
90°
