BAG
2x
L=R
OIL
303129
SHIM 3x6x1
940508
BB 5x8
930306
BB 3x6
903308
SFH M3x8
approximately 58mm
Use bearing oil for all bearings
Tighten the screws lightly but fully, and
then loosen 1/3 turn so the composite
dual servo saver moves freely.
SERVO LINK Adjust servo link to fit your servo
65mm 65mm
To change Ackermann angle,
use 2 identical shims (of same
thickness) between the alu
steering plate and ball end.

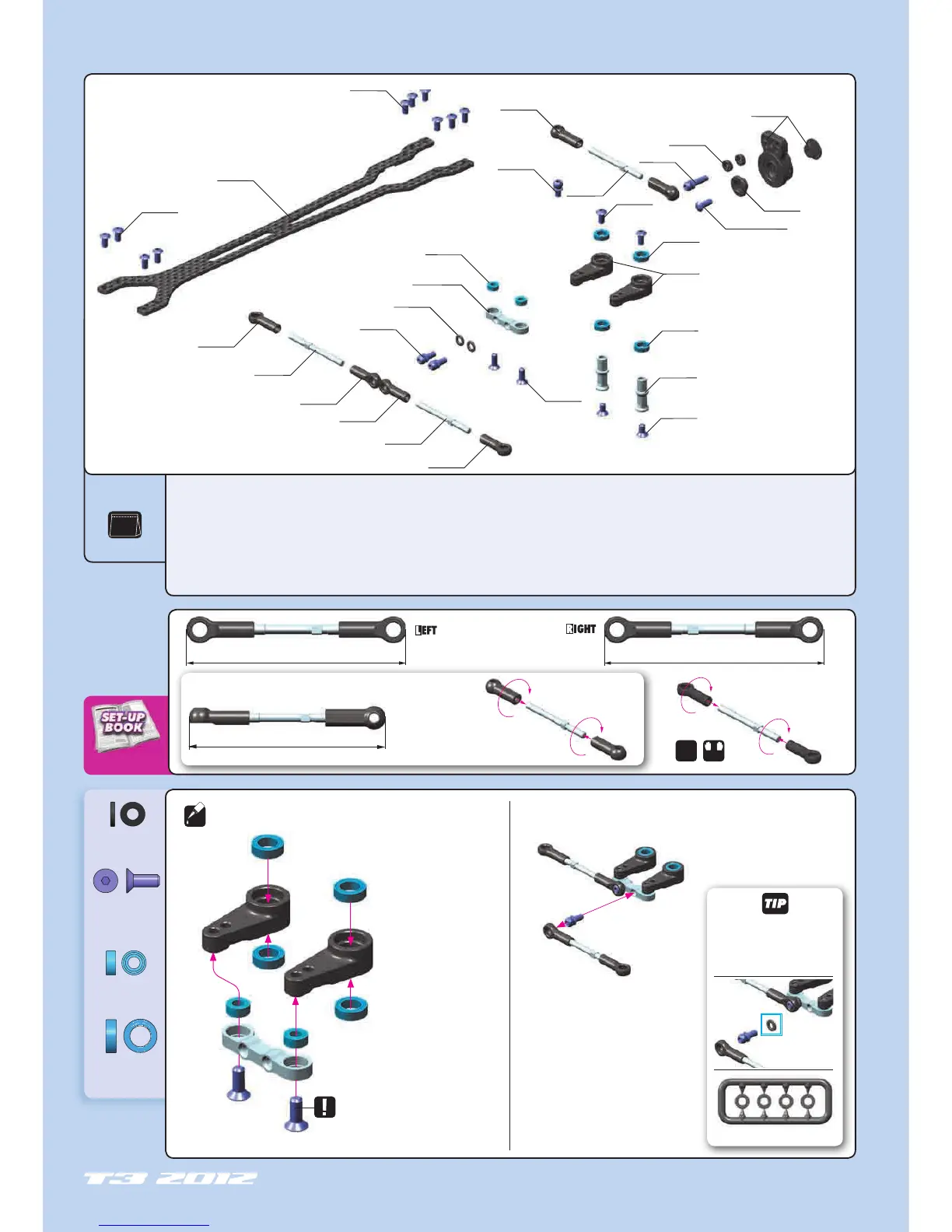

4. STEERING
04
902306
902305
940508
302526
940508
302535
903306
301193
902306
302654
303129
930306
302545-O
303129
302653
372503
372503
FROM SERVO
302661
302652
903308
302663
302612
302663
302663
302612
302663
302612
30 1193 T3’12 UPPER DECK 2.0MM GRAPHITE
30 2506 XRAY DUAL SERVO SAVER SET
30 2526 COMPOSITE DUAL SERVO SAVER ARM
30 2535 ALU STEERING POST FOR DUAL SERVO SAVER (2)
30 2545-O ALU STEERING PLATE FOR DUAL SERVO SAVER - ORANGE
30 2610 ADJ. TURNBUCKLE M3 L/R 40 MM - HUDY SPRING STEEL™(2) (OPTION)
30 2612 ALU ADJ. TURNBUCKLE M3 L/R 39 MM - SWISS 7075 T6 (2)
30 2652 BALL END 5 MM WITH THREAD 4MM (2)
30 2653 BALL END 4.9MM WITH THREAD 6MM (2)
30 2654 BALL END 4.9MM WITH THREAD 8MM (2)
30 2661 COMPOSITE BALL JOINT 4.9MM - CLOSED (4)
30 2663 COMPOSITE BALL JOINT 5 MM - OPEN - V2 (8)
30 3129 COMPOSITE SET OF SHIMS (3x1MM; 1x2MM) (2)
37 2503 COMPOSITE SERVO SAVER - X-STIFF - SET
90 2305 HEX SCREW SH M3x5 (10)
90 2306 HEX SCREW SH M3x6 (10)
90 3306 HEX SCREW SFH M3x6 (10)
90 3308 HEX SCREW SFH M3x8 (10)
93 0306 BALL-BEARING 3x6x2.5 (2)
94 0508 HIGH-SPEED BALL-BEARING 5x8x2.5 RUBBER SEALED (2)
