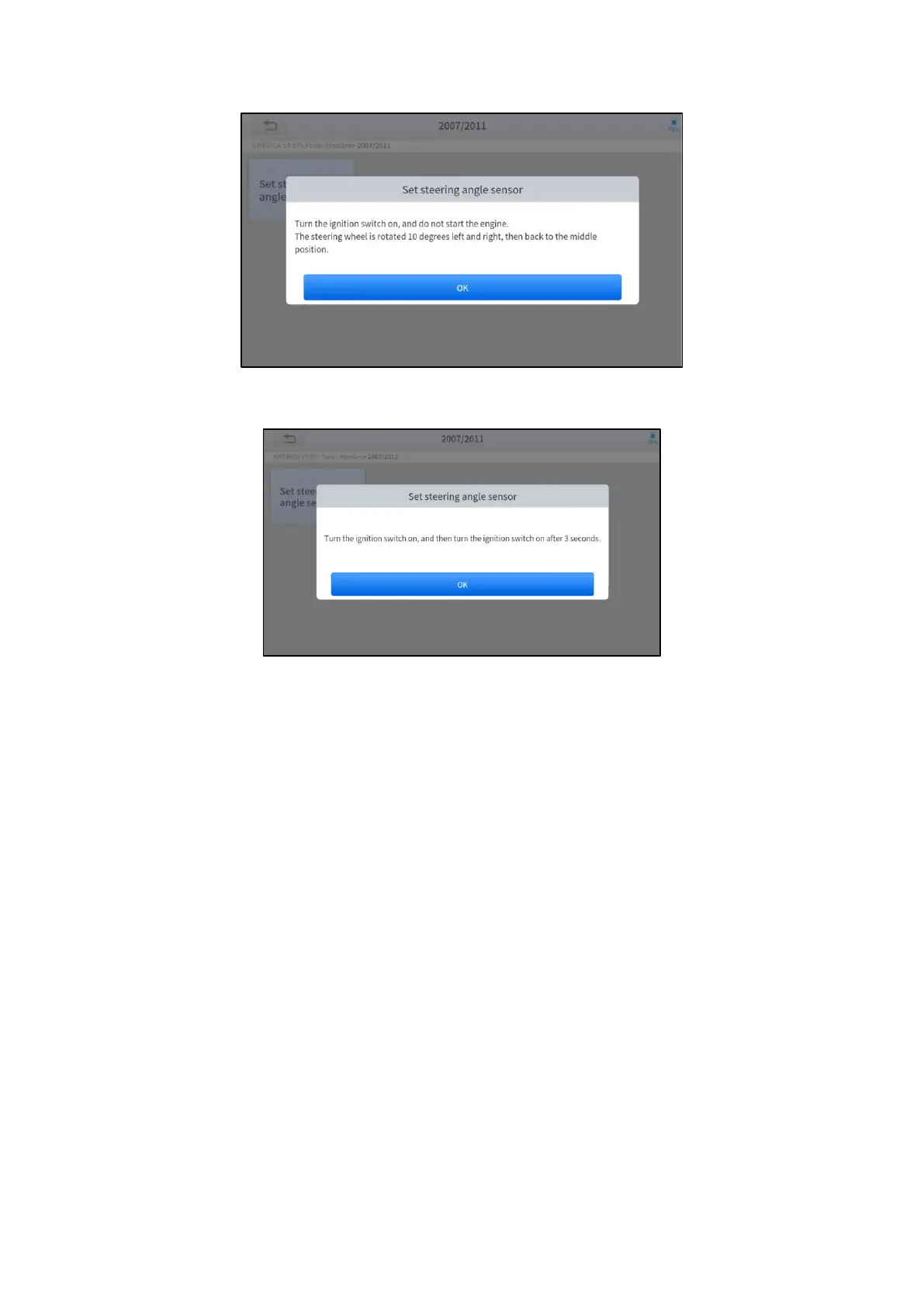

5. Wait until the following instruction is displayed and press OK after completing the instructions shown.
1. Message of ‘Function execution is completed’ displayed when SAS reset function has successfully completed.
THROTTLE
Throttle Position Sensor (TPS) Match, this function enables you to make initial settings to throttle actuators and returns the
“learned” values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle
engine) to adjust the amount of air intake.
The operation guidelines of the Throttle function are shown as below:
1. Enter the Throttle menu and choose relevant models according to the vehicle being tested.
2. Enter the Auto Recognition menu and turn on the ignition switch.
3. Read carefully and complete the requisites listed before performing the throttle regeneration function. And press OK
after completing the instructions shown.
To Next Page
