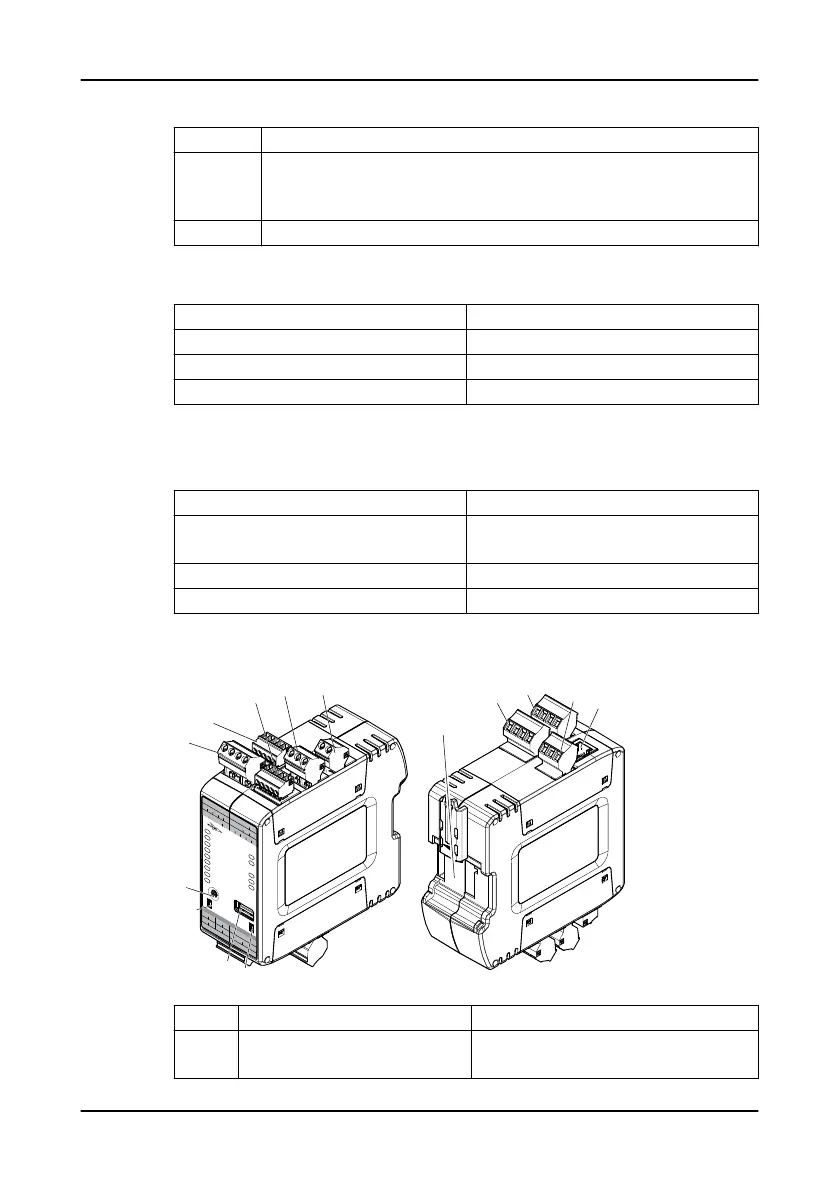

Xylem FLYGT APP 412 User Manual

Degree of protection, IP20
Code Description
2 The enclosure is protected against:
• Fingers or objects that are less than 80 mm (3.15 in) in length
• Objects that are larger than 12.5 mm (0.49 in) in diameter
0 The enclosure is not protected against water.
9.4 Electrical data
Parameter Value
Supply voltage + 24 VDC
Supply voltage tolerance 21.5–28.5 VDC
Current consumption < 700 mA. Typical: 150 mA
9.5 RTC battery
The controller has an internal battery for the real-time clock (RTC).
Parameter Value
Battery type BR1632
CR1632
Nominal battery voltage 3 V
Battery capacity 120 mAh
9.6 Terminals
PWR
RS485
DI
1
2
3
4
GND
A
AI
AO
HMI
1
2
3
4
5
B
GND
24VDC
+
_
+
_
+
_
DI1
DI2
DI3
DI4
DO1
DO2
DO3
DO4
ALARM A
ALARM B
RUN
COMMS
RS485
USB
NODE
ADDRESS
ON
OFF
MASTER
SLAVE
TERM
DO1
NO
COM
NO
COM
T4
T3
GND
DO2
DO3
NO
COM
NO
COM
DO4
ETHERNET
FPG 4xx
4
7
8
3
9
0
6
1
2
5
1
2
4
3
WS010944B
7
8 9
13
10
11
12
5
6
14
Section Terminal Description
1 NODE ADDRESS Node address
0–9, rotary switch. 0 is not used.
9 Technical Reference
28 APP 412 Installation, Operation, and Maintenance manual

Xylem FLYGT APP 412 Specifications

General

Brand	Xylem
Model	FLYGT APP 412
Category	Water Pump
Language	English
