Position Part
13 Adaptive-N impeller
14 Gateway
15 Oil
Pressure class, discharge connection
LT/150 Low head
MT/100 Medium head
HT/80 High head

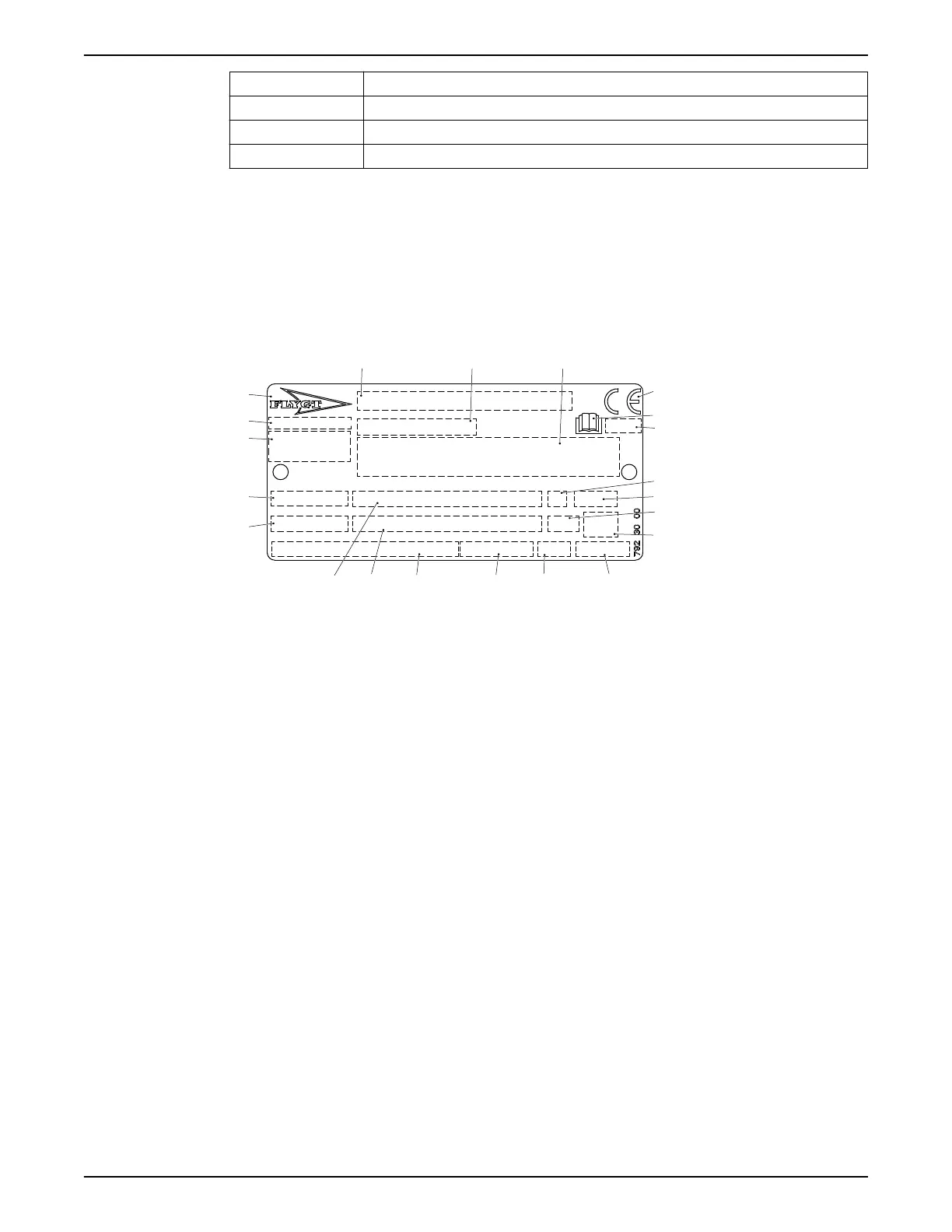

4.1.2 The data plate
WS008366B
10
8
7
4
5
6
1516
9
14 1112
21
21
17
18
3
19
20
13
1. Serial number, see Product denomination on page 16
2. Product number
3. Additional information
4. CE-marking
5. Read installation manual
6. Notified body (only for EN-approved Ex products)
7. Duty class
8. Degree of protection
9. Thermal class
10.Maximum submergence
11.Product weight
12.Direction of rotation: L=left, R=right
13.Nominal motor speed
14.Minimum rated voltage/rated current – maximum rated voltage/rated current
15.Maximum ambient temperature (2), rated shaft power (2)
16.Maximum ambient temperature (1), rated shaft power (1)
17.Power factor
18.Phase, type of current, frequency
19.Manufacturer
20.Country of origin
21.Brand
4.1.3 Product denomination
Reading instruction
In this section, code characters are illustrated accordingly:
X = letter
Y = digit
The different types of codes are marked up with a, b and c. Code parameters are marked
up with numbers.
