Yaesu FT-450/D User Manual

RF-IF Unit (Lot.1~)
RF-IF-3
FT-450 Series Technical Supplement
A B C D E
1
2
3
F
4
5
6

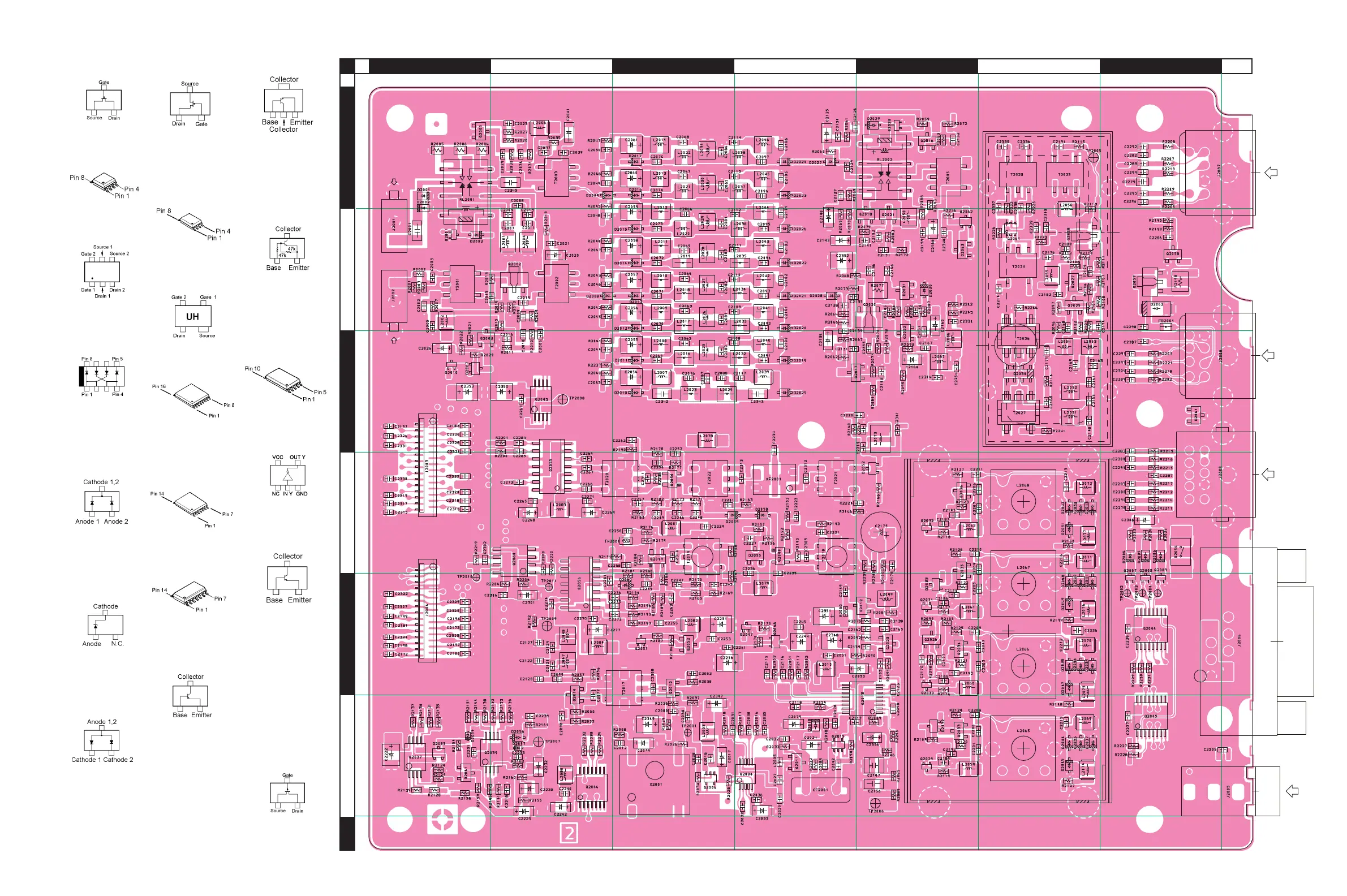

Parts Layout (Side A)
HG
7
2SK520 (K41)
(Q 2018,Q 2021)
UPC4572G2
(Q2060)
SPM5001
(Q 2061)
HSB88WS
(D 2034)
MC2848
(D2007, 2053)
DAN235U
(D 2052)
HZM7.5NB3
(D2031, 2055)
HZM5.6NB2
(D2063)
HZM27WA
(D 2061)
DAP236U
(D2032, 2033)
2SK302Y (TY)
(Q2026)
2SK210 (YG)
(Q2033, 2034,
2035, 2036)
LM2904PWR
(Q2037, 2039, 2043)
3SK151GR
(Q2040, 2049, 2050)
ADF4001BRUZ
(Q2013)
CD4094BPWR
(Q2044, 2045)
BU2507FV
(Q2046)
RF2713
(Q2055, 2056)
2SA1602A (MF)
(Q2048)
ISA1602AM1(Lot.9-)
(Q2048)
2SC5415E (EA)
(Q2002, 2028)
2SC3357 (RK)
(Q2020)
2SD2211 (DQR)
(Q 2057)
PDTC144EE (08)
(Q2001, 2007, 2008,
Q2009, 2010, 2024,
Q2029, 2030, 2031,
Q2032, 2047, 2051)
AD9833BRMZ
(Q2004)
TC7S04FU (E5)
(Q2006, 2015)
2SC2812NL6
(Q2003, 2041)
2SC2714Y
(Q2005, 2011, 2012,
2014, 2016, 2017, 2019,
2022, 2023, 2025)
2SC3356 (R24)
(Q2027)
2SA1365
(Q2052)
2SC4154 (E)
(Q2062)
2SJ125D
(Q 2058)

Yaesu FT-450/D Specifications

General

Receiver Type	Triple-conversion superheterodyne
Supply Voltage	13.8 V DC ±15%
Current Consumption Max	22 A
Frequency Range Receive	30 kHz - 56 MHz
Modes	SSB, CW, AM, FM
Power Output	100 W
Antenna Impedance	50 Ohms
Current Drain Transmit	22 A
Weight	3.6 kg
Output Power 50MHz	100 W
