G-800DXA / -1000DXA / -2800DXA User Manual

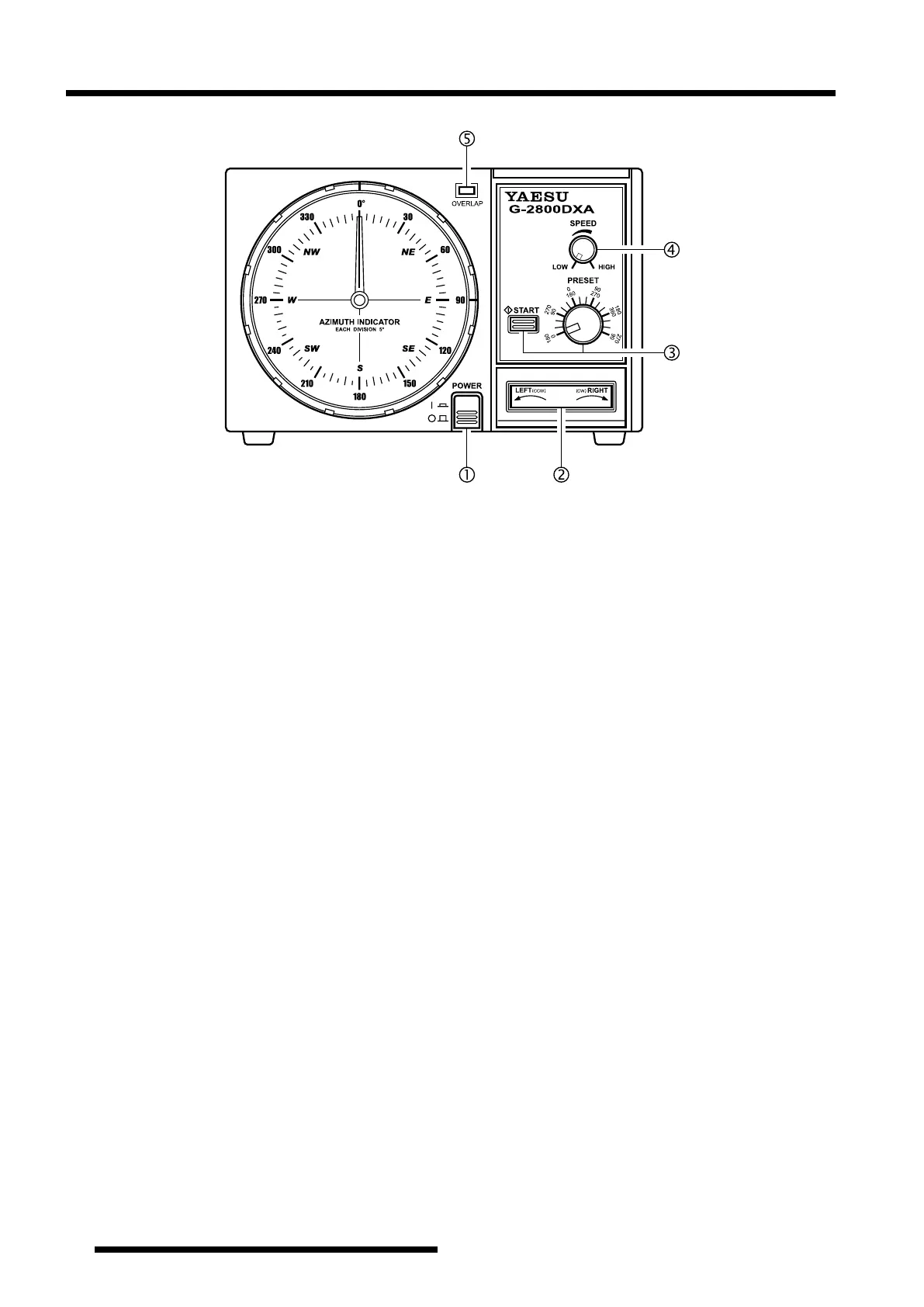

Controller Front Panel
À
POWER
switch
Press this switch to turn the controller on to rotate the
antenna. Turn it off when the rotator is not in use.
Á
LEFT/RIGHT
Seesaw Switch
Press the LEFT side of this switch to rotate the anten-
na counter-clockwise (CCW). Press the RIGHT side
to rotate the antenna clockwise (CW).
Â
PRESET
Control and
START
Switch
Set the
PRESET
control to the desired antenna
heading according to the outer angular scale (180 ~
270) around this control, then press the (momentary)
START
switch to activate automatic rotation to the
desired heading. You can press the
LEFT/RIGHT
switch to abort preset operation.
Note:
If you change the rotator starting position to
the 0° (N: North), set the
PRESET
control to
the desired antenna heading according to the
inner angular scale (0 ~ 90) around this con-
trol.
Ã
SPEED
Control
Set this control for the desired rotating speed between
approximately 30 and 100 seconds per 360° revolu-
tion.
Ä
OVERLAP
Indicator
This red LED glows when the antenna is rotated
beyond about 180° (to 270°) from its original instal-
lation direction (180°). Check this indicator before
rotating the antenna clockwise, and turn the antenna
counter-clockwise to the desired position if the indi-
cator is on.
