Diagnostics Title Screen
SUBMENU ICONS GROUPED BY MENU
This topic presents the icons used in submenus in groups, with one table for each title screen of the main
menu.
Operating Screen Icons
Table 6 shows the icons that appear on the Operating Screen. Normally the icons convey status or operating
information such as battery charge level, steer angle, front and rear work light soft keys, and system time.
Sometimes icons are displayed to provide critical information, such as warnings. Refer to the Operating
Screen topic for more information.
NOTE: The icons displayed on the Operating Screen vary from any one time to another, depending
on the current operation of the lift truck and other factors. The Battery Discharge Indicator, system
time, and direction indicator are always displayed.

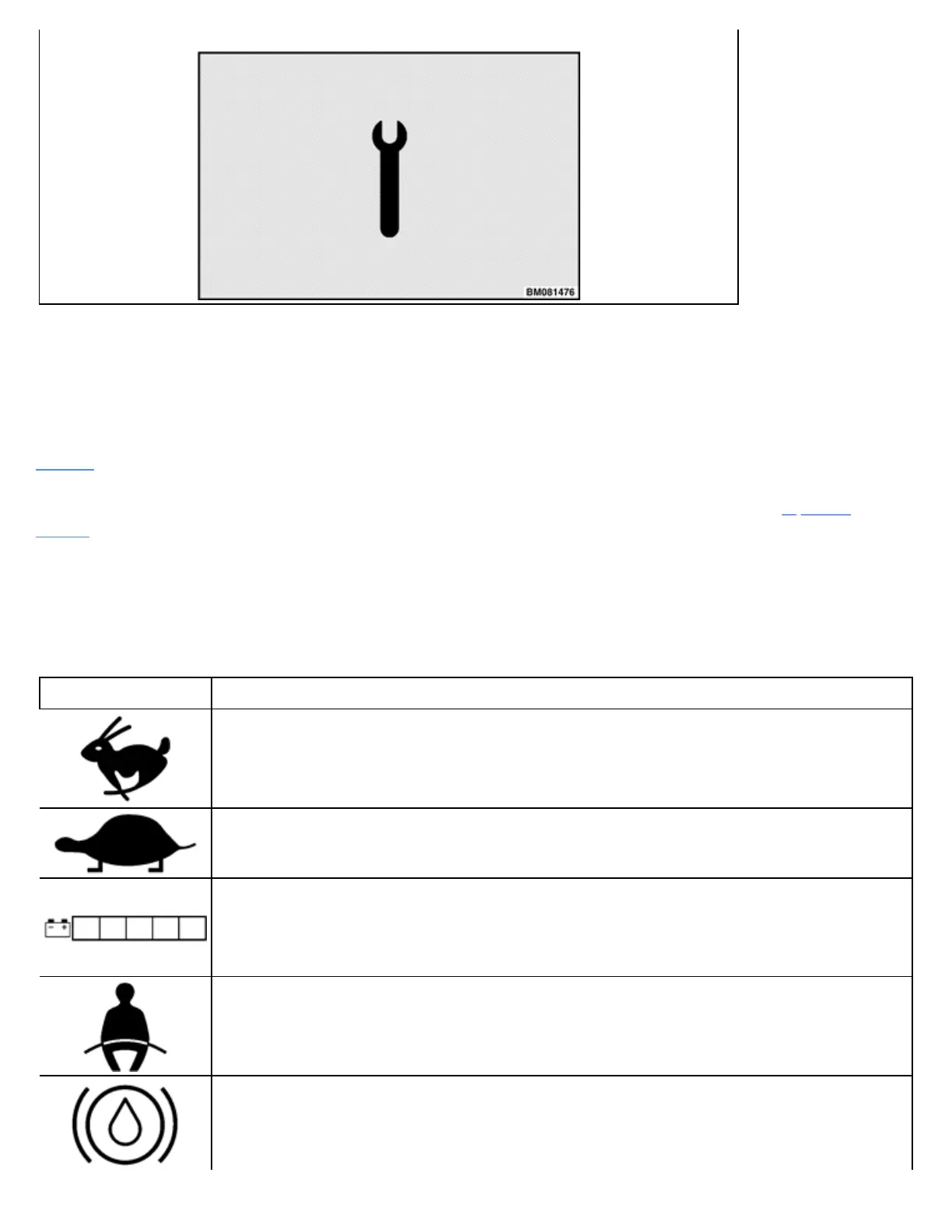

Table 6. Operating Screen Icons
Icon Description
Hare Performance Mode Icon. Press the 1 or # soft key to increase performance. (The
soft key to use depends on the currently displayed menu.)
Tortoise Performance Mode Icon. Press the 3 soft key to decrease performance.
Battery Discharge Indicator (BDI) Icon
Seat Belt Warning Icon
Brake Fluid Low Warning Icon
To Next Page
