8.
ENTER KEY (* STAR KEY)
Figure 1. Lift Truck Display Panel
The operator password screen appears at startup as shown in Figure 2, if Operator Passwords are enabled.
Use the number keys on the Display Panel to enter your five-digit Supervisor password. For more
information, see the Password Screen topic.
If a non-service technician password has already been entered at the initial password screen, you can navigate
to the Password Screen by pressing the Enter Key (*) to go to the Main Menu, then press either the Scroll
Back Key (!!—) or the Scroll Forward Key (—▸) to access the Password Screen. Refer to the Menu
Navigation topic for orientation on the Main Menu title screens (the main level menus).

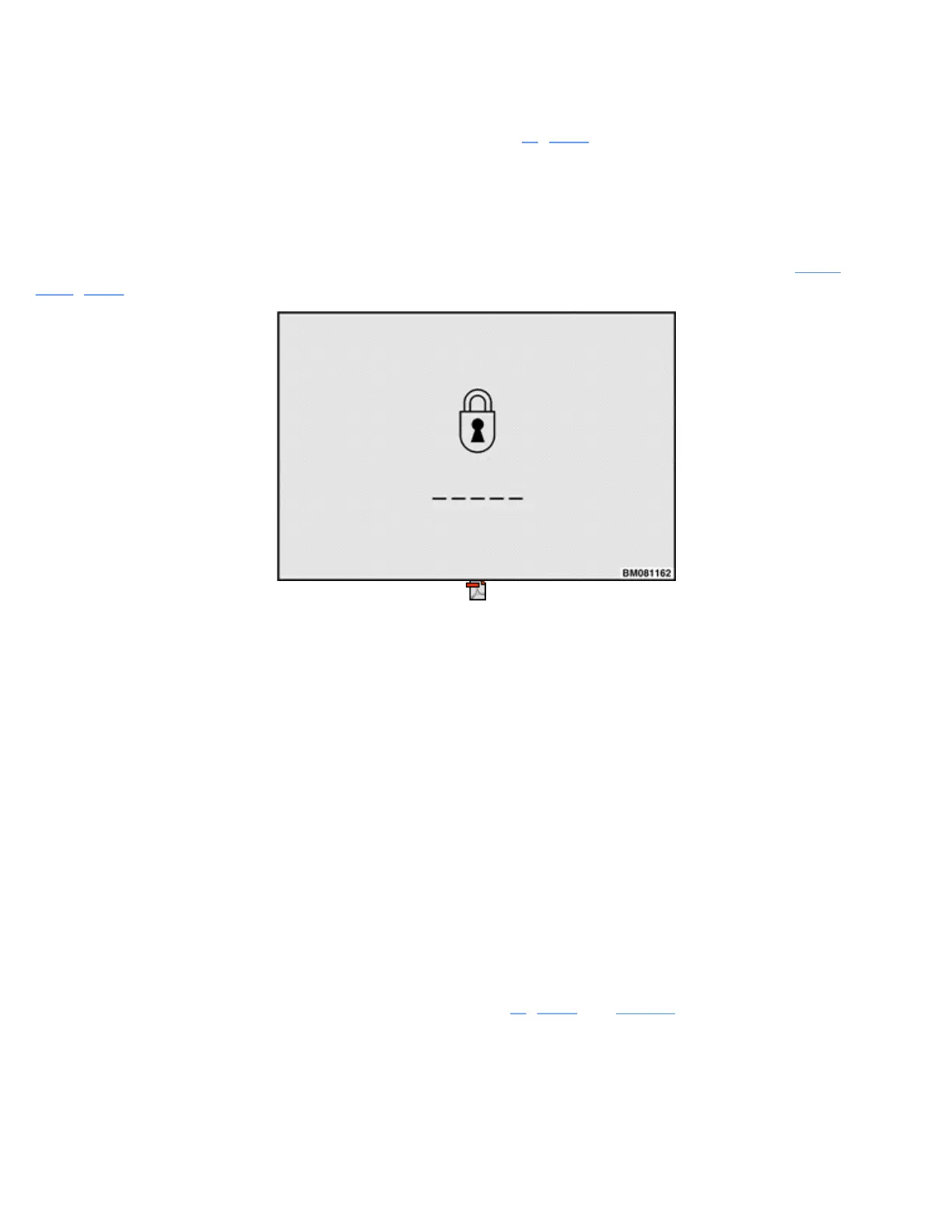

Figure 2. Password Screen
Menu Flowchart
SUPERVISOR MENU FLOWCHART
NOTE: Depending upon how the lift truck is equipped, some of the functions described in this section
may not be included in the on-board menu structure for a particular lift truck.
NOTE: The icons displayed on the Operating Screen vary from any one time to another, depending
on the current operation of the lift truck and other factors. The Battery Discharge Indicator, system
time, and direction indicator are always displayed.
All available menus are grouped by function under the main menu screens, which are also called top-level
title menus. When you select a main menu screen, the system then presents submenus, also known as second-
level menus, that you can cycle through using the UP ↑↑ or DOWN ↓↓ keys until you find the one you want on
the Display Panel. Two main menu screens, the Operating Screen and the Password Screen, have no
associated submenus, but the other main menus lead to submenus.
The following flowchart is for the Supervisor use only. See Figure 3 and Table 1.
To Next Page
