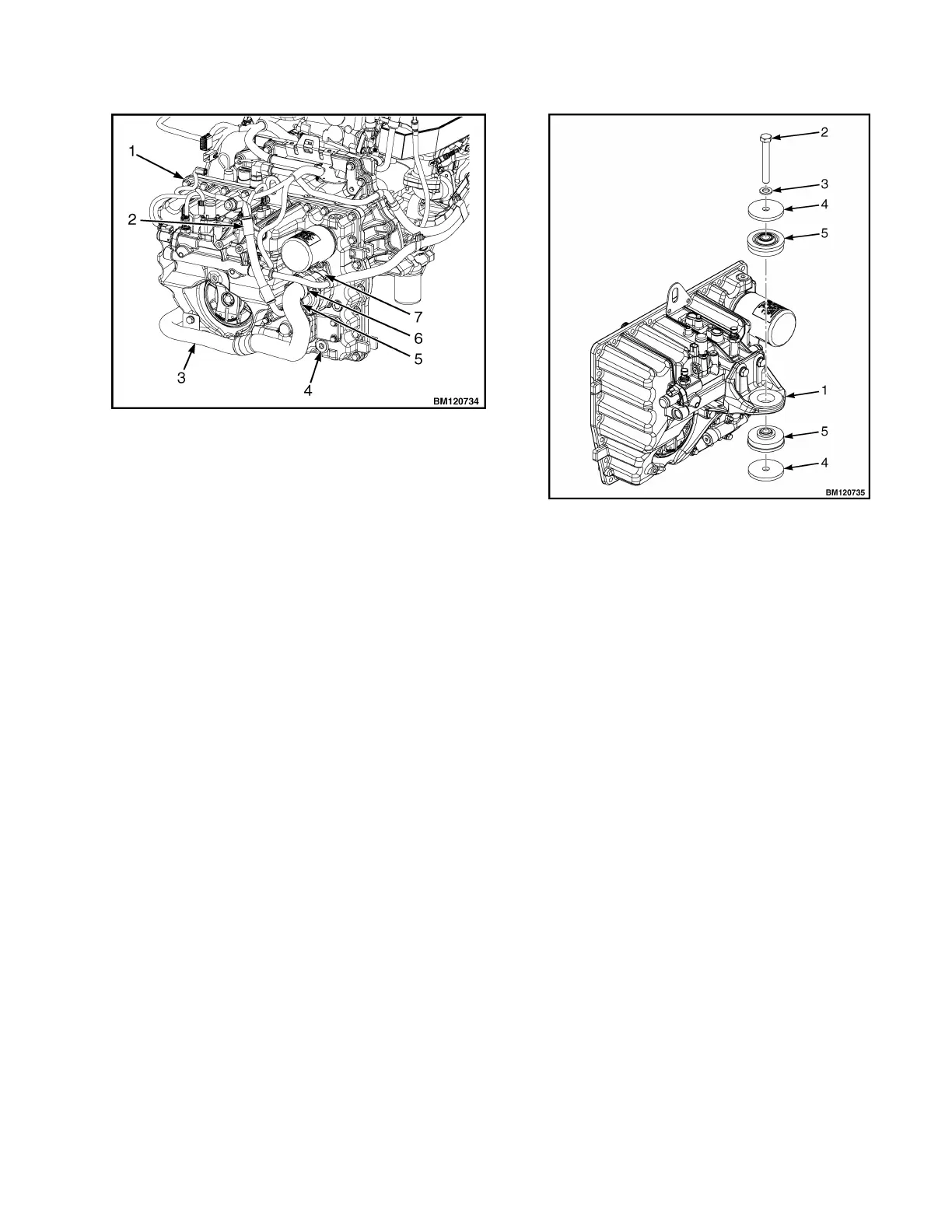

NOTE: PSI ENGINE SHOWN FOR REFERENCE
ONLY.
1. TRANSMISSION HOUSING
2. HYDRAULIC HOSE
3. SUCTION HOSE
4. DRAIN FITTING
5. HYDRAULIC GEAR PUMP INLET PORT
6. HYDRAULIC GEAR OUTLET PUMP
7. HYDRAULIC GEAR PUMP
Figure 36. Hydraulic Hose, Aluminum
Transmission Housing
NOTE: DRIVE AXLE NOT SHOWN FOR CLARITY.
1. MOUNTING BRACKET
2. CAPSCREW
3. WASHER
4. SNUBBING WASHER
5. ISOLATOR
Figure 37. Rear Mount-Transmission
0100 YRM 1766 Transmission Replacement
39
