GLOW PLUGS
Remove
1. Disconnect the negative battery cable at the bat-
tery.
2. Remove the glow plug cover from each of the
glow plugs. See Figure 5.
3. Disconnect the glow plug harness from the glow
plugs.
4. Remove the glow plugs from the cylinder head.

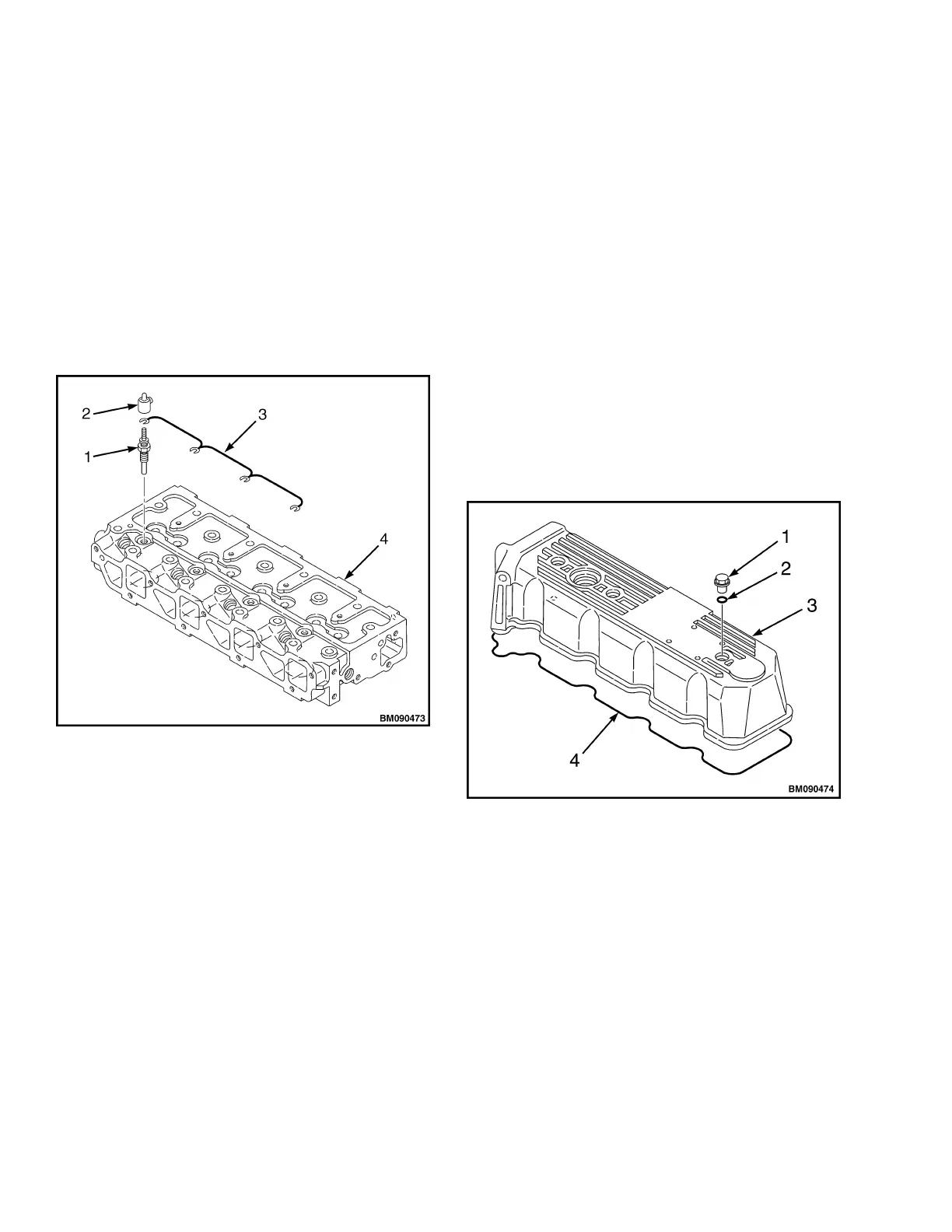

1. GLOW PLUG
2. COVER
3. WIRE HARNESS
4. CYLINDER HEAD
Figure 5. Glow Plugs
Install
1. Install the glow plugs into the cylinder head.
2. Connect the glow plug harness to the glow plugs.
3. Install the glow plug covers on each glow plug.
4. Connect the negative battery cable.
VALVE COVER
Remove
1. Remove the valve cover nuts. See Figure 6.
2. Inspect the O-rings on each valve cover nut. Re-
place as needed.
3. Remove the valve cover.
4. Remove the valve cover gasket and discard.
1. VALVE COVER NUT
2. O-RING
3. VALVE COVER
4. GASKET
Figure 6. Valve Cover
Cylinder Head Assembly Repair 0600 YRM 1205
6
