12. Remove the nuts retaining the exhaust pipe to the
exhaust manifold and disconnect the exhaust pipe
from the exhaust manifold.
13. Remove the bolts retaining the exhaust manifold
to the cylinder head and remove the exhaust
manifold and gasket. Discard gasket. See Fig-
ure 16.

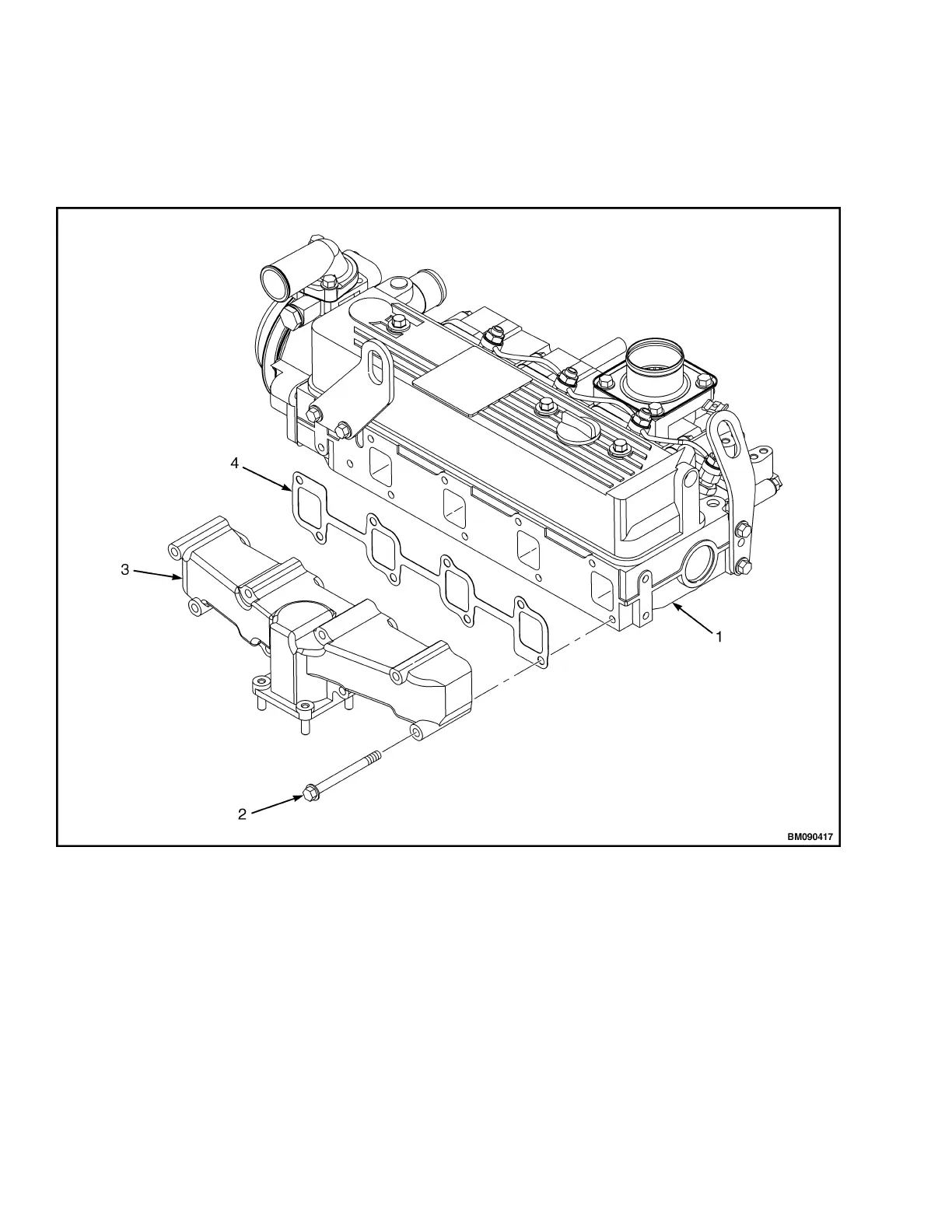

1. CYLINDER HEAD
2. BOLT
3. EXHAUST MANIFOLD
4. GASKET
Figure 16. Exhaust Manifold
Cylinder Head Assembly Repair 0600 YRM 1205
14
