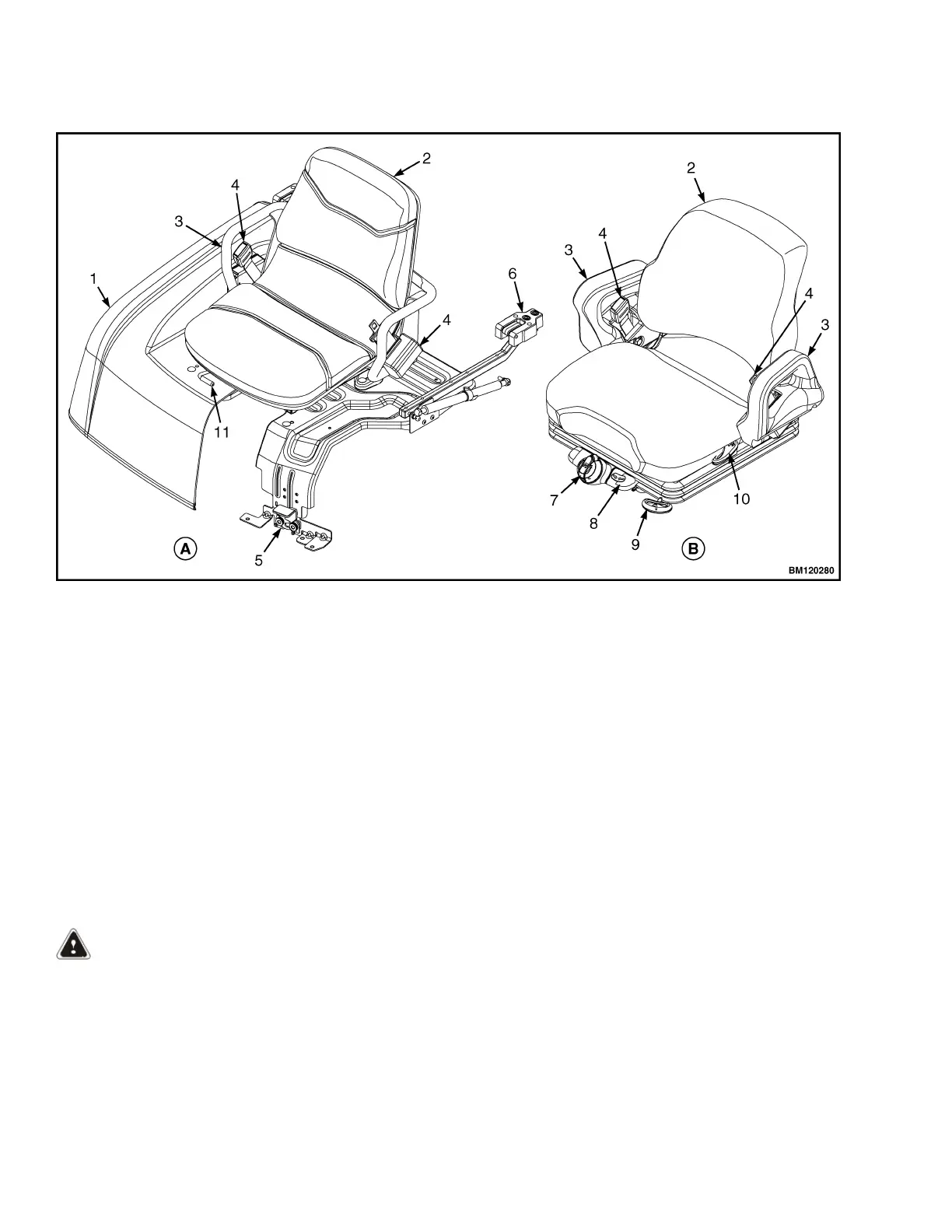

A. NON-SUSPENSION SEAT B. FULL-SUSPENSION SEAT
1. HOOD
2. SEAT
3. HIP RESTRAINT
4. SEAT BELT
5. LATCH
6. HOOD HINGE
7. WEIGHT ADJUSTMENT KNOW
8. RIDE POSITION INDICATOR
9. FORWARD/BACKWARD ADJUSTMENT LEVER
10. BACKREST ADJUSTMENT LEVER
11. SEAT RAIL
Figure 20. Operator Restraint System
Engine Replacement
REMOVE
LPG Engine
WARNING
The lift truck must be put on blocks for some
types of maintenance and repairs. The removal of
the following assemblies will cause large changes
in the center of gravity: mast, drive axle, engine
and transmission, and counterweight. When the
lift truck is put on blocks, put additional blocks in
the following positions to maintain stability:
• Before removing the mast and drive axle,
put blocks under the counterweight so the
lift truck cannot fall backward.
• Before removing the counterweight, put
blocks under the mast assembly so the lift
truck cannot fall forward.
The surface must be solid, even, and level when
the lift truck is put on blocks. Make sure that any
blocks used to support the lift truck are solid,
one-piece units. See the Operating Manual or Peri-
odic Maintenance 8000YRM1774.
Operator Restraint System Replacement 0100 YRM 1766
