WARNING
Always disconnect the cables at the battery be-
fore you make repairs to the engine. Disconnect
the cable at the negative terminal first.
WARNING
LPG can cause an explosion. DO NOT cause
sparks or permit flammable material near the LPG
system. LPG fuel systems can be disconnected
indoors only if the lift truck is at least 8 m (26 ft)
from any open flame, motor vehicles, electrical
equipments, or ignition source.
1. Close the shutoff valve on the LPG tank and run
engine until all fuel is gone and engine stops.
2. For removal of the LPG Tank, see service manual
Fuel System PSI 2.4L 0900YRM1757 for the pro-
cedures.
3. Remove overhead guard. See section Overhead
Guard Replacement for procedures.
4. Remove the floor mat and floor plate.
NOTE: PART OF THE FRAME NOT SHOWN FOR CLARITY.
1. TRANSMISSION ISOLATOR ASSEMBLY
2. TRANSMISSION MOUNTING BRACKET
3. ENGINE MOUNTING BRACKET
4. MOTOR MOUNT
5. ENGINE ISOLATOR ASSEMBLY
6. FRAME
7. ENGINE WIRING HARNESS
8. CHASSIS WIRING HARNESS

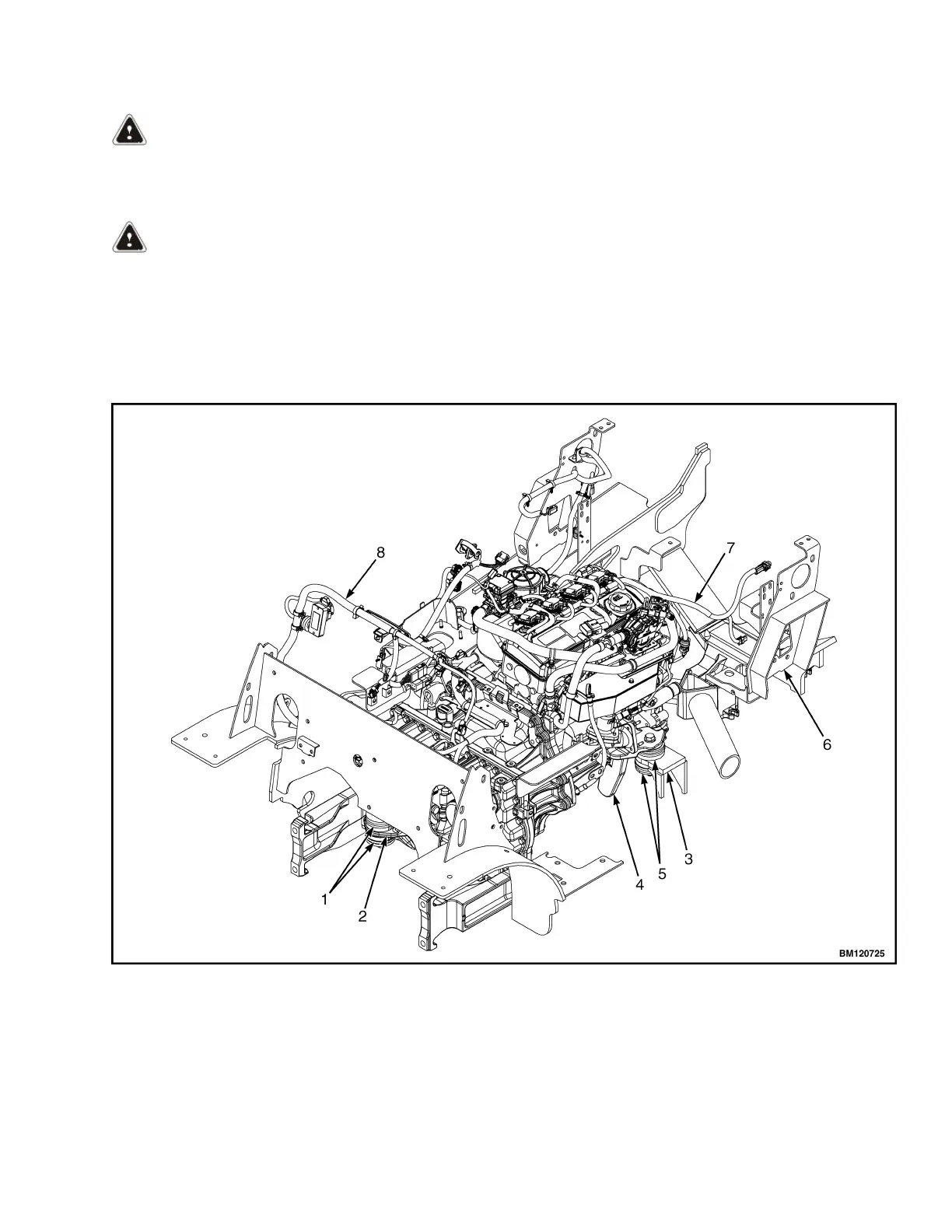

Figure 21. PSI Engine and Transmission Mounting Arrangement
0100 YRM 1766 Engine Replacement
23
