14. Remove the valve cover. See Valve CoverRe-
move.
15. Remove the rocker arm assembly. See Rocker
Arm AssemblyRemove.

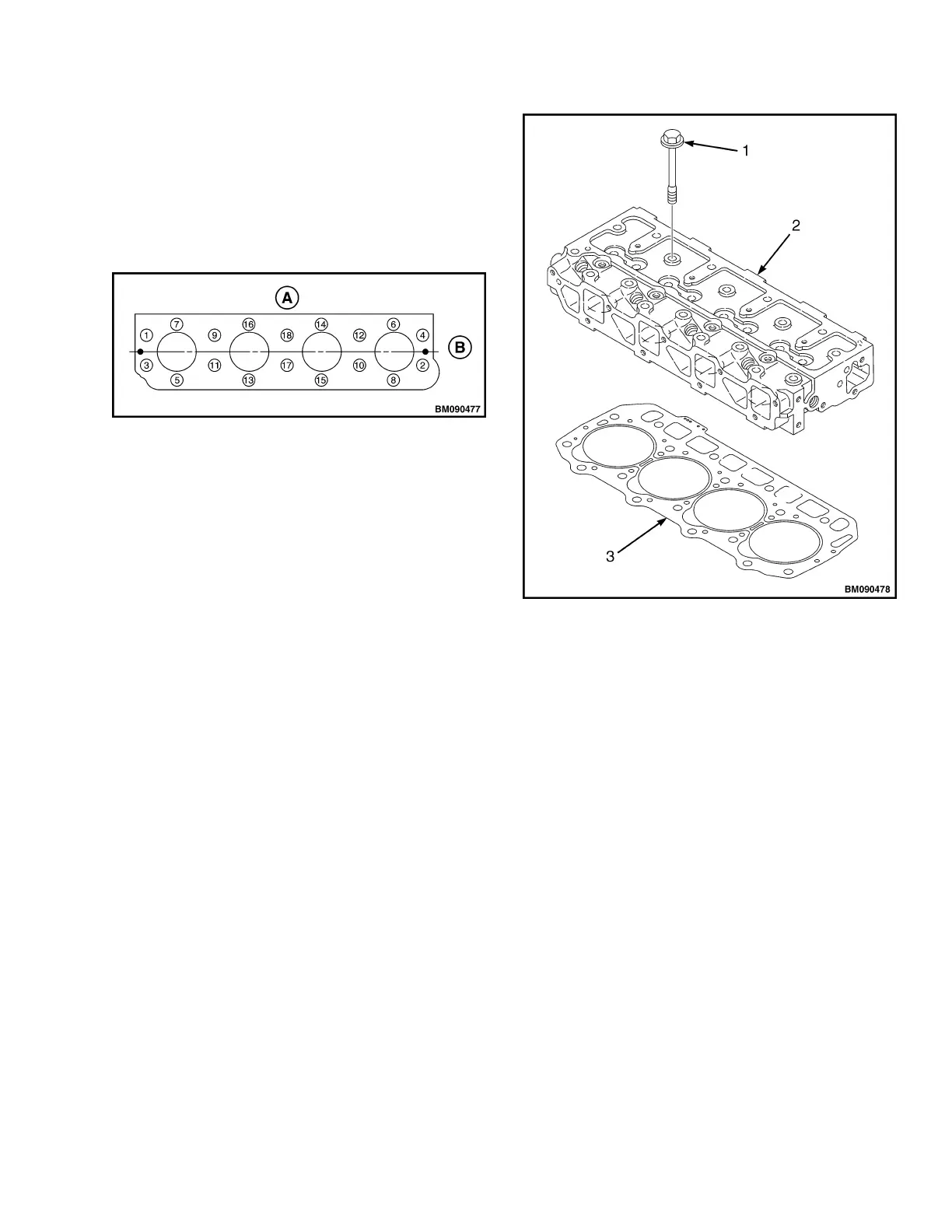

16. Loosen the cylinder head bolts following the se-
quence shown in Figure 17.
A. CAMSHAFT SIDE B. FAN SIDE
Figure 17. Cylinder Head Bolt Loosening
Sequence
17. Remove the cylinder head bolts. See Figure 18.
18. Lift the cylinder head away from the cylinder
block. Place the cylinder head on a work bench to
prevent damage to the combustion chamber.
19. Remove the cylinder head gasket and discard.
1. BOLT
2. CYLINDER HEAD
3. GASKET
Figure 18. Cylinder Head and Gasket
0600 YRM 1205 Cylinder Head Assembly Repair
15
