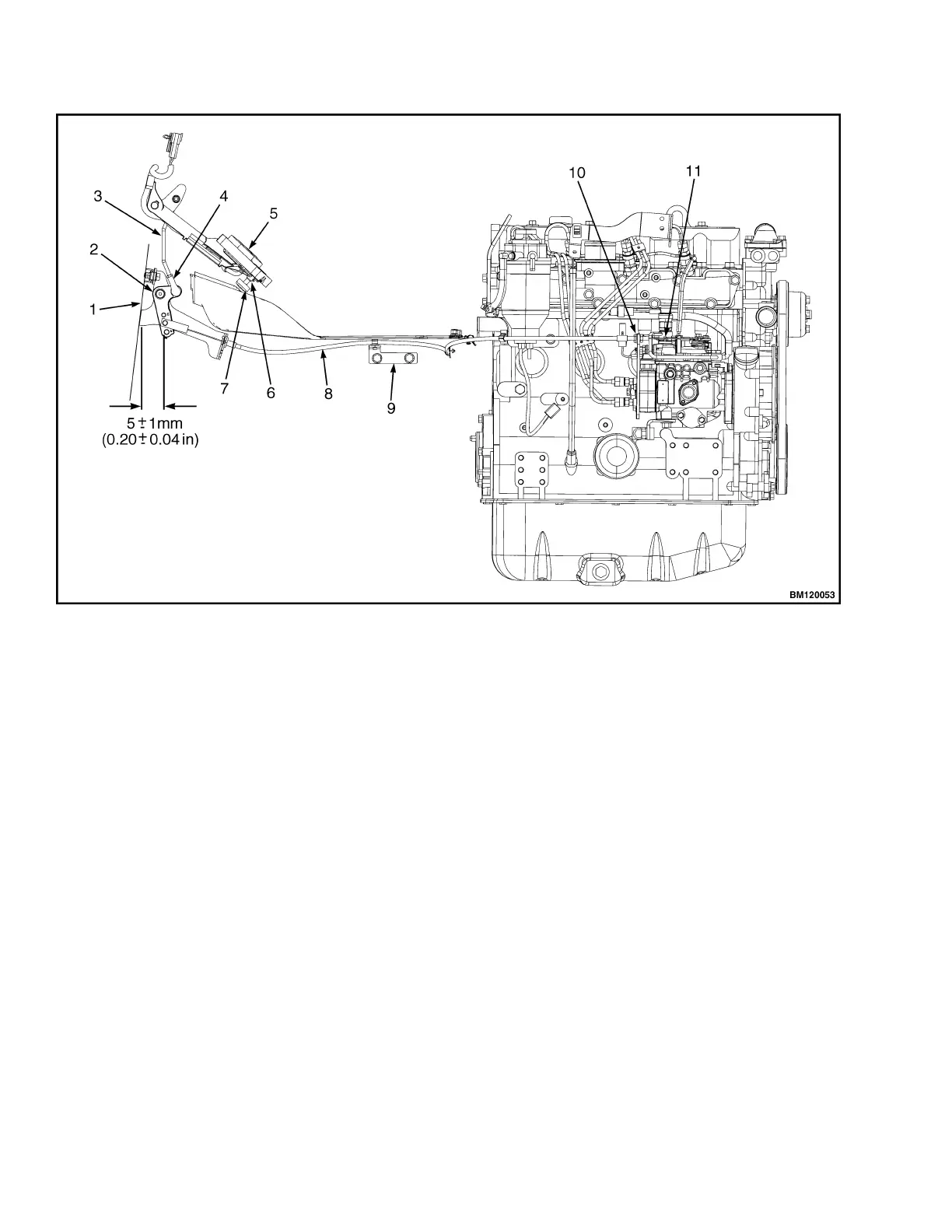

NOTE: THROTTLE PEDAL NOT SHOWN IN FULLY DEPRESSED POSITION (WIDE OPEN POSITION).
NOTE: MOUNTING BRACKET FOR THREE FUNCTION CONTROL VALVE SHOWN, FOUR FUNCTION CON-
TROL VALVE SIMILAR.
1. COWL
2. BELLCRANK
3. PUSH ROD
4. BALL END
5. THROTTLE PEDAL
6. JAM NUT
7. PEDAL STOP
8. THROTTLE CABLE
9. CABLE BRACKET
10. JAM NUTS
11. THROTTLE CRANK
Figure 40. Throttle Pedal and Cable Adjustment, Yanmar Diesel Engine
Cooling System
DESCRIPTION
The cooling system is used to cool the engine and
keep it at the correct operating temperature. The cool-
ing system is comprised of the following main compo-
nents:
• Radiator
• Fan and belt
• Fan shroud
• Coolant hoses and lines
• Coolant reservoir
For the procedures to repair, clean, inspect, and in-
stall the radiator and cooling system components, re-
fer to Cooling System - PSI 2.4L Engine
0700YRM1767.
Throttle Pedal and Cable Adjustment 0100 YRM 1766
42
