COOLANT TEMP. METER

COOLANT TEMP. SENSOR AND/OR

COOLANT PRESS. ATTACHMENT

INSTALLATION

(FOR 4-STROKE MODELS)

F25D (F25A), FT25F (T25A), F30B (F30A),

F40F (F40A)

FT50C, F50D

F95A, F100B, F115A

F40H, F50H (F50B), FT50J (T50B), F60F

(F60B), FT60G (T60B), F70A (F70A), F40G

Only one of the coolant press. attachment or

coolant temp. sensor can be installed, even if

the engine has two points for installation.

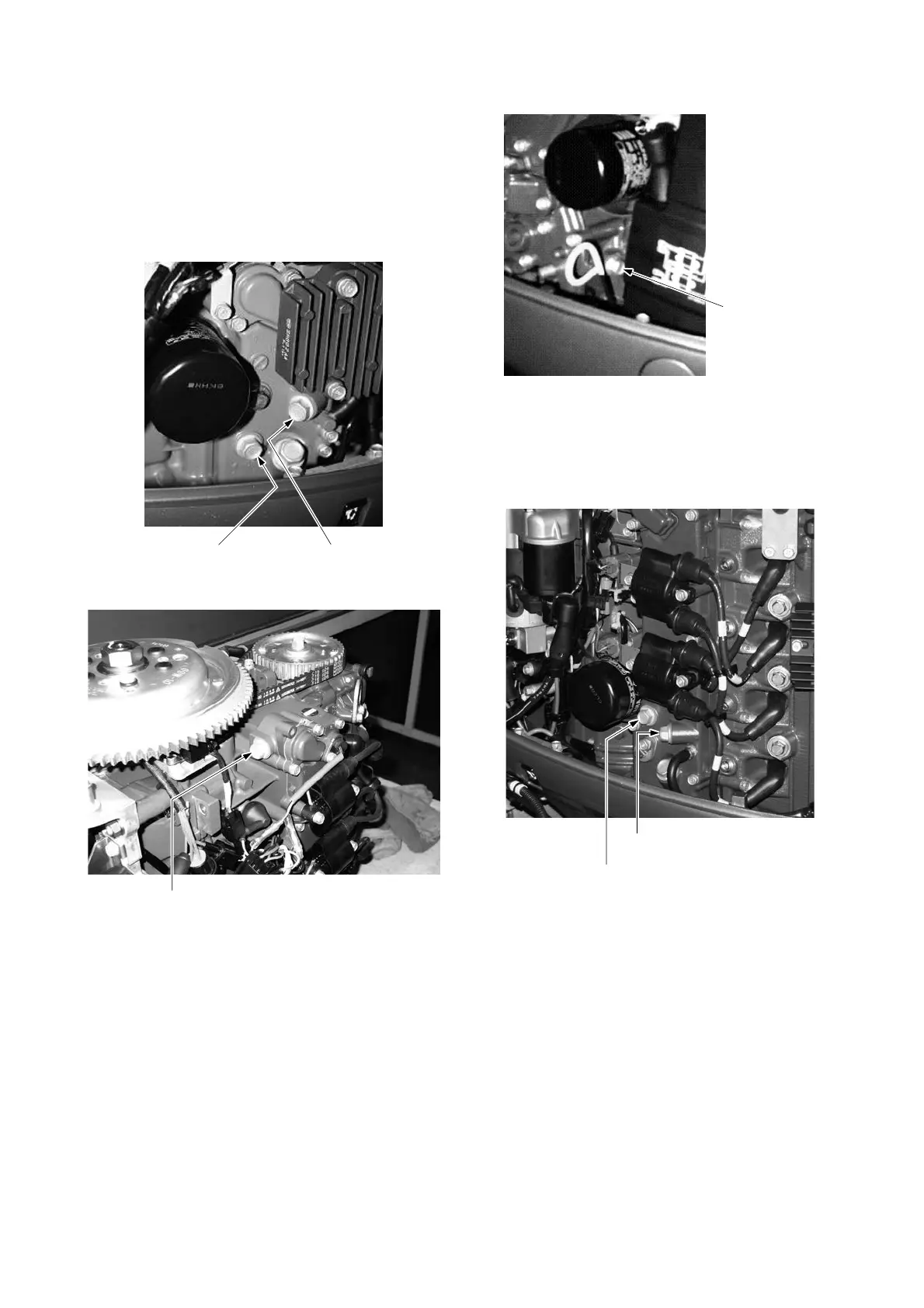

Coolant pressure attachmentCoolant temp. sensor

Coolant temp. sensor, or

coolant pressure attachment

Coolant temp.

sensor, or

coolant pressure

attachment

Coolant pressure attachment

Coolant temp. sensor
