6-8

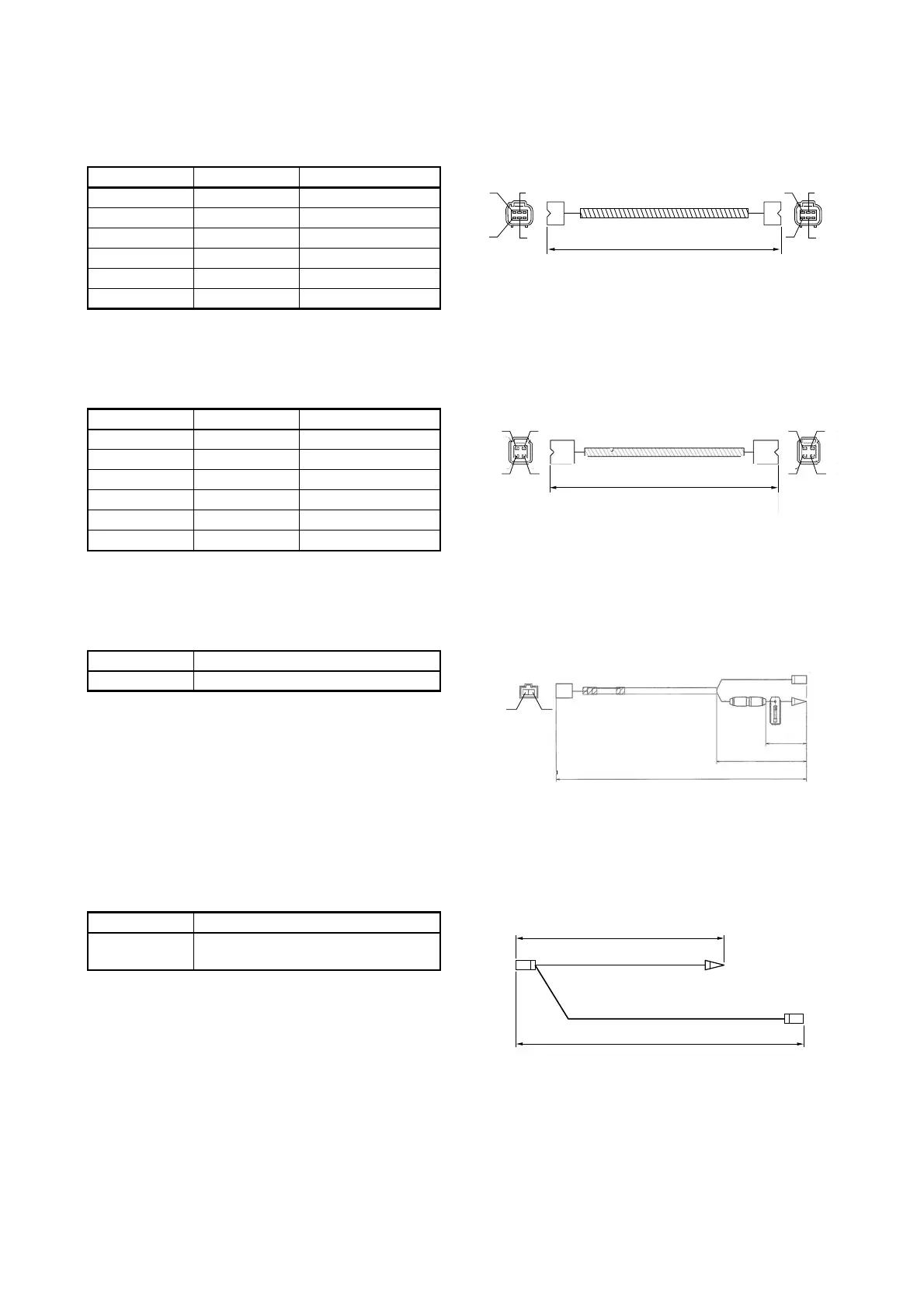

WIRE HARNESS
MAIN BUS WIRE
Used to connect between the hub and hub.
PIGTAIL BUS WIRE
Used to connect between the hub and gauge and/or between the engine and the hub.
SYSTEM POWER SUPPLY WIRE
Used to connect between the switch panel and the hub, and supply the electric power to the system.
IMMOBILIZER POWER DISTRIBUTION WIRE 1
This wire lead is used to supply permanent electric power to the immobilizer unit in case of multi-
application.
Part No. Length Remarks
6Y8-82553-41 9.1 m (30 ft)
6Y8-82553-31 7.6 m (25 ft)
6Y8-82553-21 6.1 m (20 ft)
6Y8-82553-11 4.6 m (15 ft)
6Y8-82553-50 3.0 m (10 ft)
6Y8-82553-01 0.3 m (1 ft)
Part No. Length Remarks
6Y8-82521-51 3.6 m (12 ft)
6Y8-82521-41 2.7 m (9 ft)
6Y8-82521-31 1.8 m (6 ft)
6Y8-82521-21 0.9 m (3 ft)
6Y8-82521-11 0.6 m (2 ft)
6Y8-82521-01 0.3 m (1 ft)
Part No. Remarks
6Y8-83553-01 With 10 amp fuse
Part No. Remarks
6H5-81315-00
For fuel injection F30 – F/FL200
multi-application w/ immobilizer
Length
(GRY) (GRY)
RB
W
RB
WLL
Length
BR
WL
BR
WL
(WHT) (WHT)
2400 (94)
70 (2.75)
170 (6.63)
(10A)
B
(RED)
Y
B
YY
mm (in.)
R
R
90 (3.54)
240 (9.45)
mm (in.)
