Basic components
EMU25796
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
60, 70
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
14
15
13
16
1
10
2
3
4
5
6
7
8
9
11
12
ZMU04945

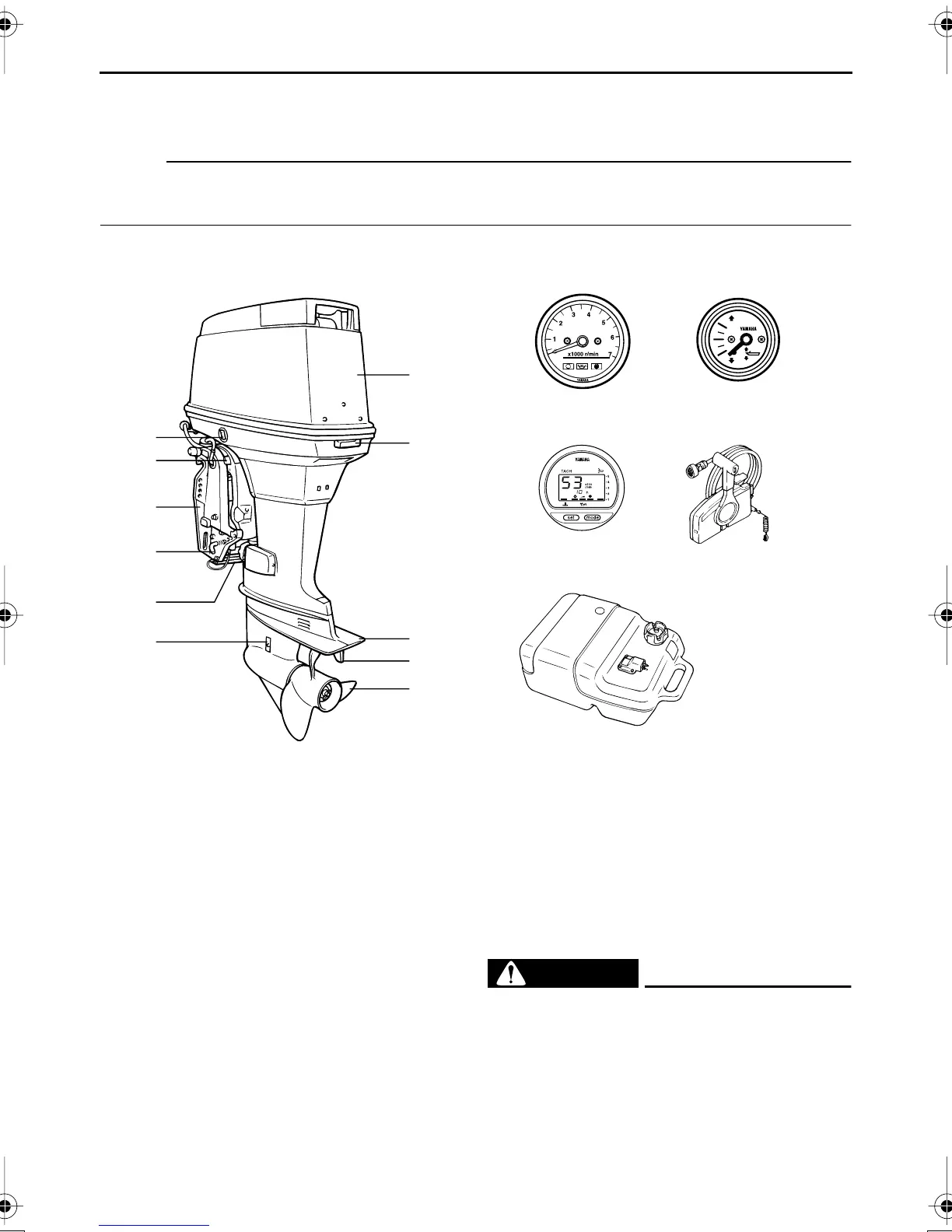

1. Top cowling
2. Top cowling lock lever
3. Anti-cavitation plate
4. Trim tab (anode)
5. Propeller
6. Cooling water inlet
7. Anode
8. Trim rod
9. Clamp bracket
10. Tilt support knob
11. Power trim and tilt switch
12. Tachometer*
13. Trim meter*
14. Digital tachometer*
15. Remote control box (side mount type)*
16. Fuel tank*

Yamaha 60 Specifications

General

Starting System	Electric
Prop Shaft Horsepower	60 hp
Gear Ratio	2.00:1
Steering	Remote
Shaft Length	20 in
