Yamaha 60 User Manual

Maintenance
54
tion, or other damage.
● Check the propeller shaft for damage.
●
Check the splines / shear pin for wear or
damage.
● Check for fish line tangled around the pro-
peller shaft.
●
Check the propeller shaft oil seal for dam-
age.
NOTE:
If the shear pin equipped: it is designed to
break if the propeller hits a hard underwater
obstacle to help protect the propeller and
drive mechanism. The propeller will then
spin freely on the shaft. If this happens, the
shear pin must be replaced.
EMU30660

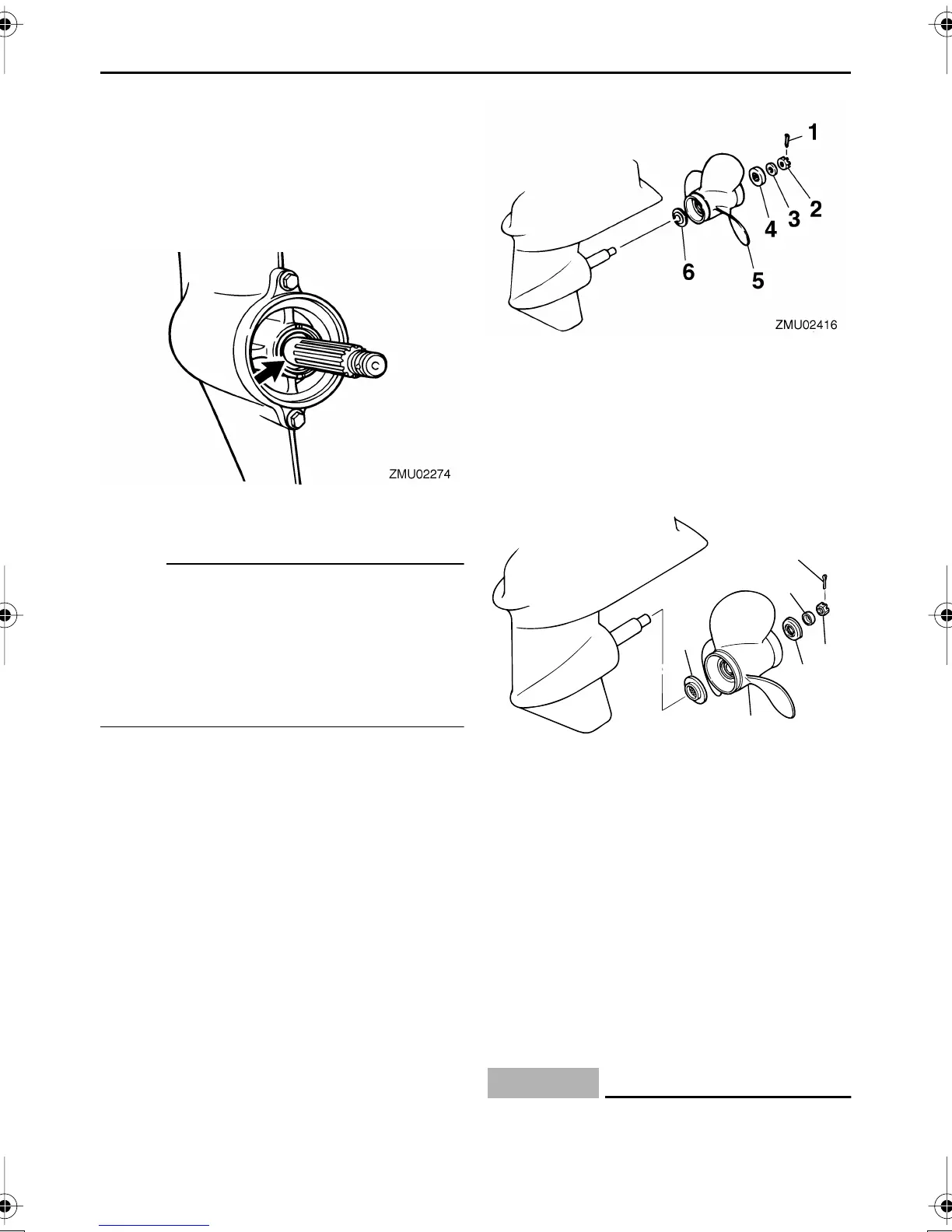

Removing the propeller
EMU29194
Spline models
1. Straighten the cotter pin and pull it out
using a pair of pliers.
2. Remove the propeller nut, washer, and
spacer (if equipped).
3. Remove the propeller and thrust wash-
er.
EMU30670
Installing the Propeller
EMU29231
Spline models
CAUTION:
ECM00340
●
Be sure to install the thrust washer be-
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
ZMU03842
1
2
3
4
5
6

Yamaha 60 Specifications

General

Starting System	Electric
Prop Shaft Horsepower	60 hp
Gear Ratio	2.00:1
Steering	Remote
Shaft Length	20 in
