Yamaha 60 User Manual

Basic components
17
EMU26261

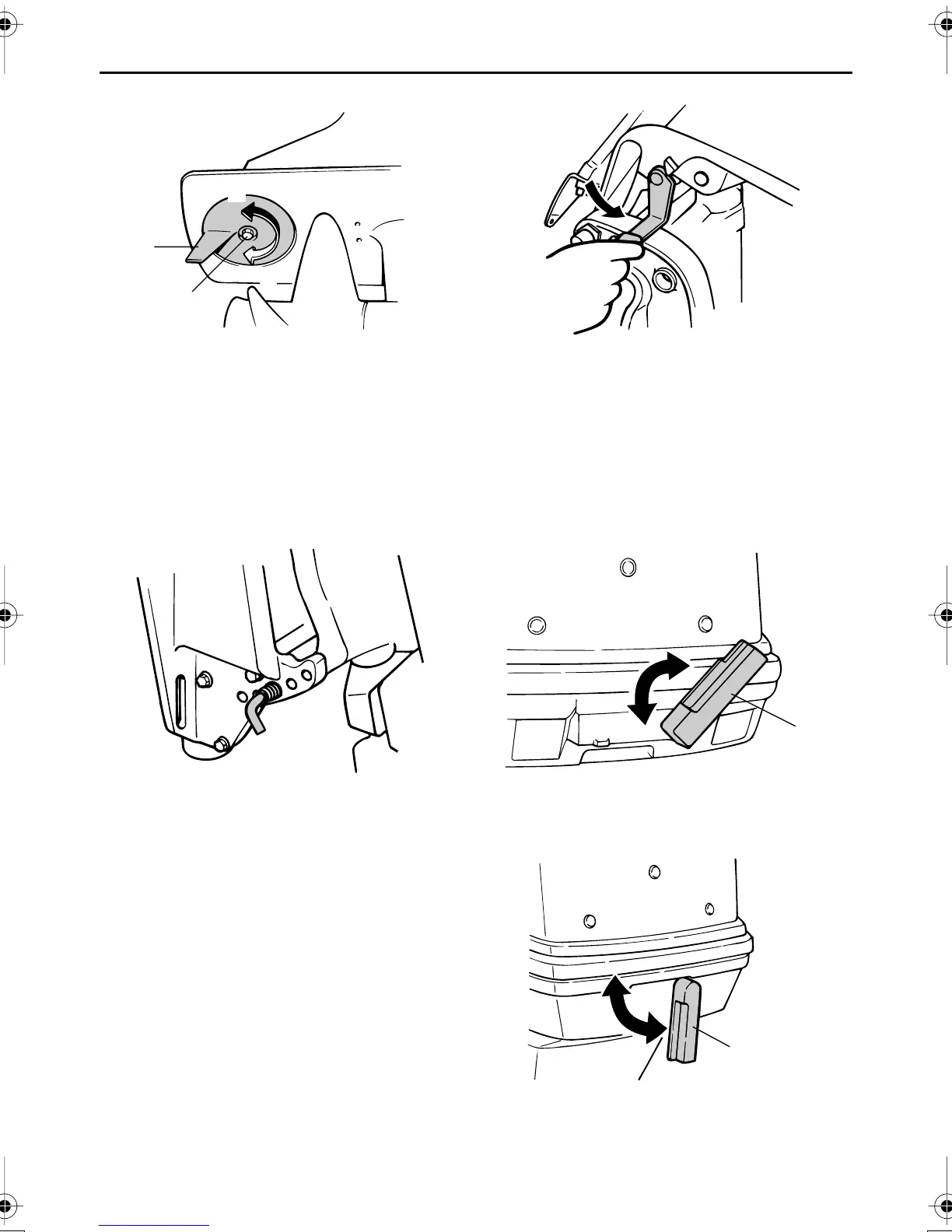

Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU26340
Tilt support lever for power trim and
tilt or hydro tilt model
To keep the outboard motor in the tilted up
position, lock the tilt support lever to the
clamp bracket.
EMU26372
Top cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling again by returning the lever(s) to the
lock position.
1. Trim tab
2. Bolt
A
B
ZMU03097
1
2
ZMU02526
1. Top cowling lock lever(s)
1. Top cowling lock lever(s)
ZMU02528
ZMU03827
1
ZMU02596
1

Yamaha 60 Specifications

General

Starting System	Electric
Prop Shaft Horsepower	60 hp
Gear Ratio	2.00:1
Steering	Remote
Shaft Length	20 in
