Components
26
EMU26261

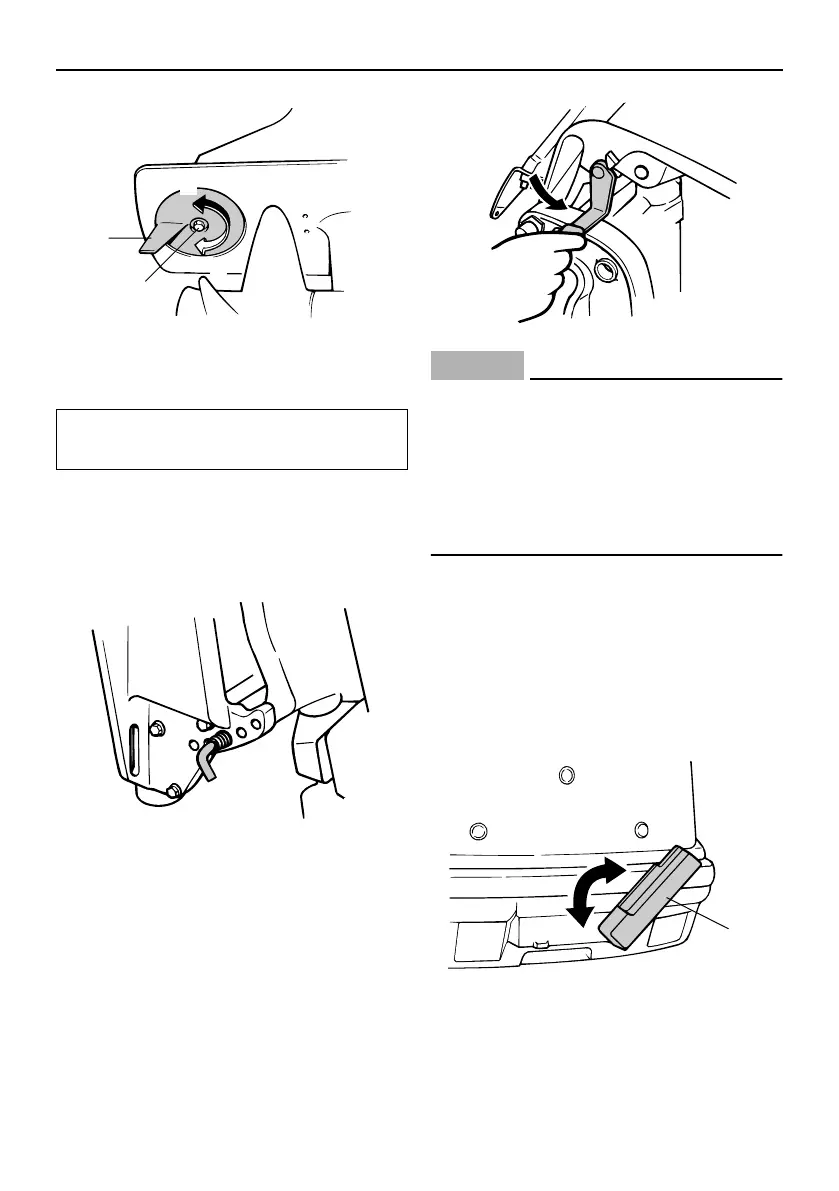

Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU26341
Tilt support lever for power trim and
tilt model
To keep the outboard motor in the tilted up
position, lock the tilt support lever to the
clamp bracket.
NOTICE
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt sup-
port and fall. If the motor cannot be trail-
ered in the normal running position, use
an additional support device to secure it
in the tilt position.
EMU26372
Top cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling again by returning the lever(s) to the
lock position.
1. Trim tab
2. Bolt
Bolt tightening torque:
36.0 Nm (3.6 kgf-m, 26 ft-lb)
A
B
ZMU03097
1
2
ZMU02526
1. Top cowling lock lever(s)
ZMU03194
ZMU03827
1
