Operation
50
EMU27884
Adjusting trim angle (Power trim and
tilt)
WARNING
EWM00753
●
Be sure all people are clear of the out-
board motor when adjusting the trim
angle. Body parts can be crushed be-
tween the motor and the clamp bracket
when the motor is trimmed or tilted.
●
Use caution when trying a trim position
for the first time. Increase speed gradu-
ally and watch for any signs of instabil-
ity or control problems. Improper trim
angle can cause loss of control.
●
If equipped with a power trim and tilt
switch located on the bottom cowling,
use the switch only when the boat is at
a complete stop with the engine off. Do
not adjust the trim angle with this
switch while the boat is moving.
Adjust the outboard motor trim angle using
the power trim and tilt switch.
To raise the bow (trim-out), press the switch
“” (up).
To lower the bow (trim-in), press the switch
“” (down).

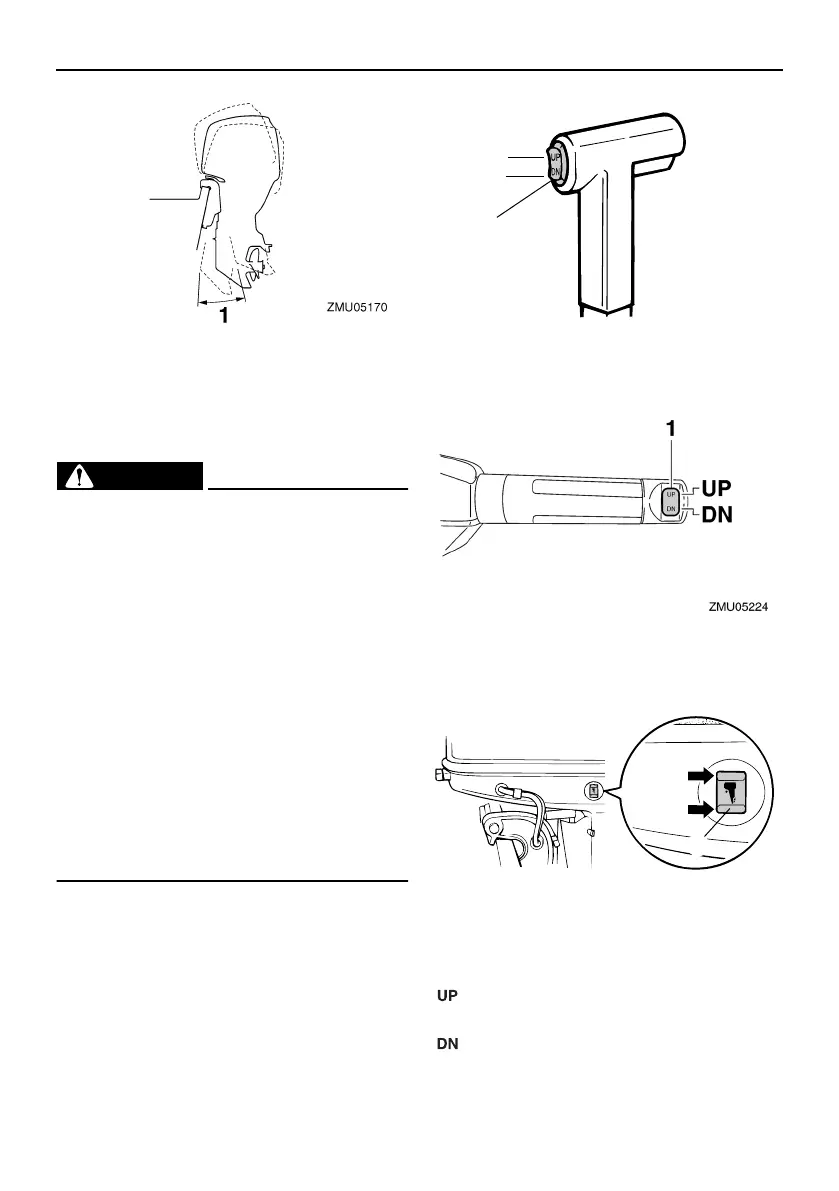

Make test runs with the trim set to different
1. Trim operating angle
1. Power trim and tilt switch
1. Power trim and tilt switch
1. Power trim and tilt switch
UP
DN
ZMU03110
1
DN
UP
ZMU04515
1
