2-4
E
305014
209015
EMC44010

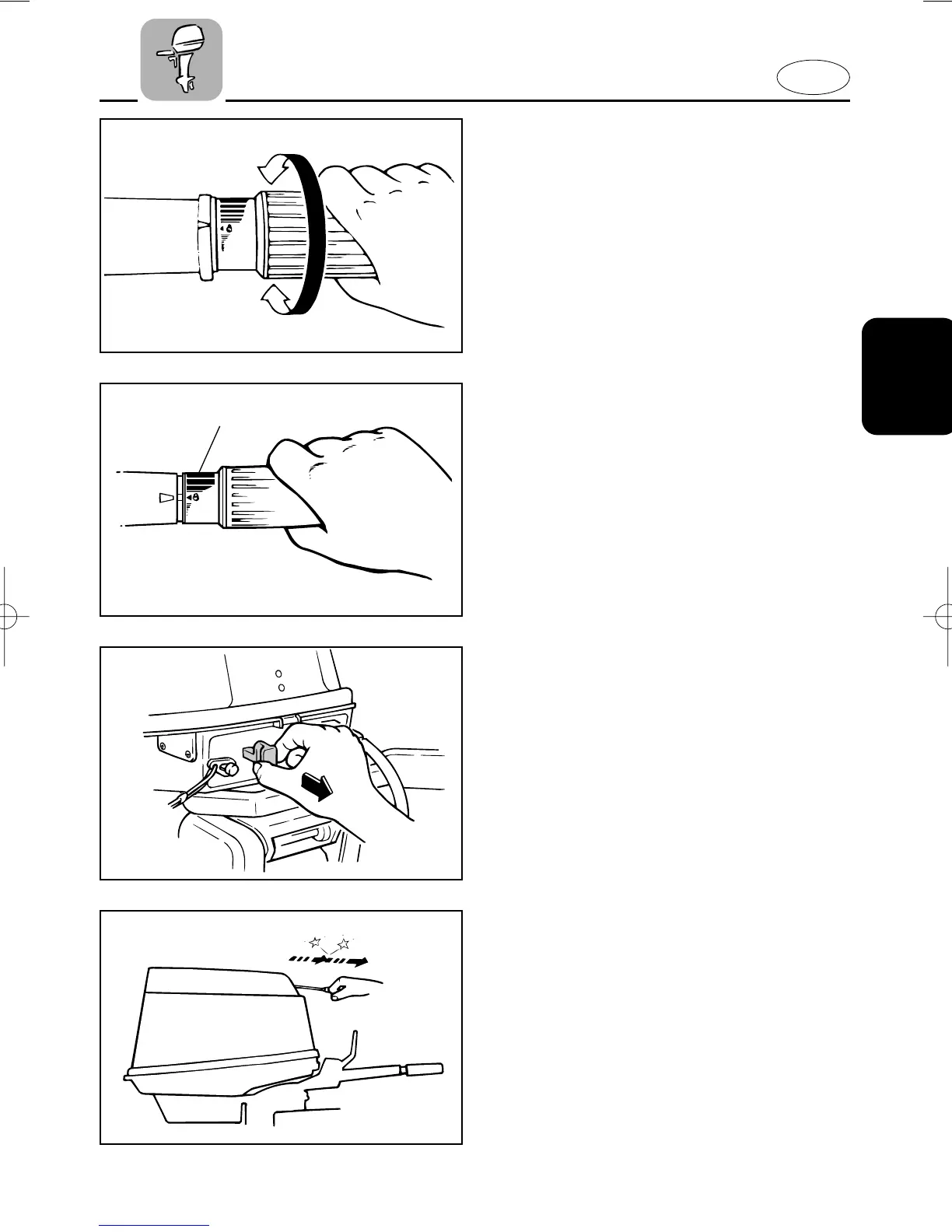

RECOIL STARTER HANDLE
(If equipped)
Pull the handle gently until resistance is
felt. Then vigorously pull the handle
straight out to crank the engine to start it.
EMC40010
THROTTLE CONTROL GRIP
(for Tiller control model)
The throttle control grip is on the tiller
handle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
EMC42110
CHOKE KNOB
Turning this knob to right (setting it to
ON) supplies a rich mixture required to
start the engine.
Throttle indicator
The fuel consumption curve on the throt-
tle indicator shows the relative amount of
fuel consumed for each throttle position.
Choose the setting that offers the best
performance and fuel economy for the
desired operation.
1 Throttle indicatorx
6M8-F9-15-2 01.10.17 2:45 PM Page 5
