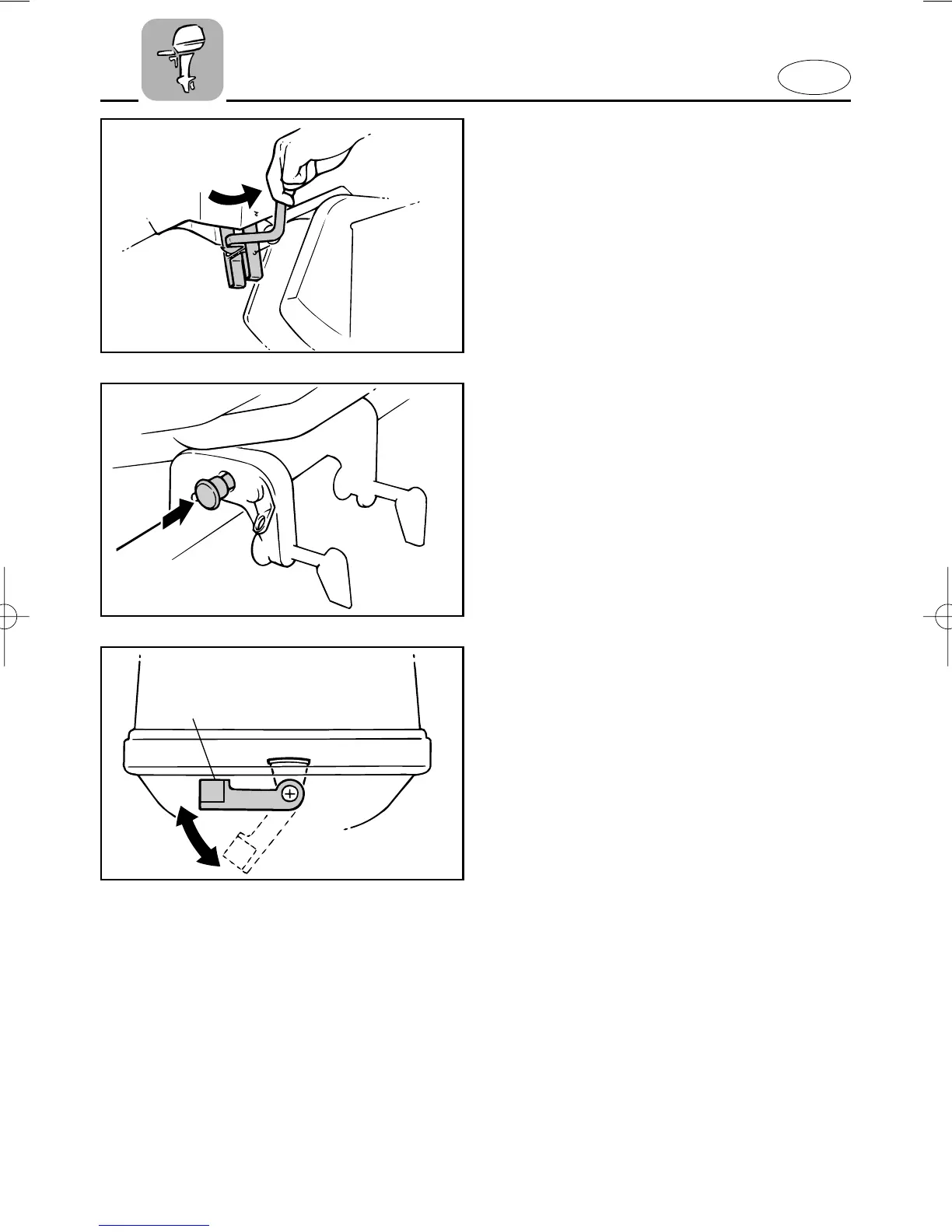

SHALLOW WATER LEVER
(If equipped)
Pushing this lever down will tilt the motor
up partially to provide more clearance
when operating in shallow water.
EMD62011
TOP COWLING LOCK LEVER
To remove the engine top cowling, turn
the lock lever. Then lift off the cowling.
When replacing the cowling, check to be
sure it fits properly in the rubber seal.
Then lock the cowling again by moving
the lever upward.
1 Top cowling lock lever
EMD47010
TILT SUPPORT KNOB
To keep the outboard motor in the tilted-
up position, push the tilt support knob
under the swivel bracket.
